3000-4000 B/H Tea Drink Line

Technology Parameters

Introduction:

MACHINE EXPORT NET OF CHINA

BEIJING YIYUAN ECONOMIC TRADE LTD

We can provide beverage other filling line as below:

1. Complete pure water production line

2. Complete mineral water production line

3. Complete juice production line

4. Complete aerated beverage production line

5. 5 Gallons water production line.

6.  Packaging system

We welcome visit our company anytime!

Price list:

No

Name

Description

Qty

Price ($)

Remarks

Water treatment equipment 2 tons

1

Water Boosting pump

CDL 4-40

1pc

$918.00

SUS304

2

Quartz - sand filter

470*1800

1pc

$1,699.00

SUS304

3

Active Carbon filter

470*1800

1pc

$1,721.00

SUS304

4

Ion filter

470*1800

1pc

$1,780.00



5

Precision filter

320*500

1pc

$1,643.00

SUS304

6

RO system

1st grade

1pc

$8,920.00



7

Ozone Sterilizer

10g/h

1pc

$1,588.00



8

Pure water pump

CHL4-220

1pc

$279.00

SUS304

9

Tank

2T

2set

$4,154.00

SUS304

subtotal: $22,702.00

drink mixing system

1

Sugar melting pot

YTH-500

1pc

$1,262.00

SUS304

2

Syrup filter

TJL-500

1pc

$1,005.00

SUS304

3

Mixing tank

PL-1000

2pc

$8,130.00

SUS304

4

Double filter

ZHP-1

1pc

$1,754.00

SUS304

5

Temporary storage tank

WSG-500

1pc

$1,588.00

SUS304

6

High pressure homogenizer

GJB25-2

1pc

$9,331.00



7

Temporary storage tank

CG-200

1pc

$1,588.00

SUS304

8

Ultra-temperature instantaneous sterilizer

2 ton/h

1pc

$8,641.00

SUS304

9

Insulation tank

LRG-2000

2pc

$9,152.00

SUS304

10

CIP washing machine

1000L

1

$8,069.00



11

Pump



3pc

$1,005.00

SUS304

12

Extraction tank1T



 2pc

$9,730.00















subtotal:$61,255.00

Filling & packing system

1

Air conveyor



1pc

$24,783.00

2m

2

Washing filling& capping 3 in 1 monoblock

16-12-6

1set

3000-4000 bottles per hour

3

Cap loader



1pc



4

Light checker

5000bph

1pc



5

Blowing dryer

4000bph

1pc

$2,691.00



6

Auto label machine



1set

$20,387.00



7

Automatic Code printing machine



1pc

$6,032.00



8

Auto PE film packing machine



1pc

$14,286.00



12

Conveying system

--

10m

$3,349.00



\











subtotal: $71,528.00

Total (FOB): $155,485.00

NoteThe pipe will be prepared by the buyer side.


Commercial terms:
1)Price: FOB Any Port Of China
2)Payment term: T/T 30% deposit advanced, T/T70% balanced after inspection in our factory and before shipment
3)Delivery: 55-70 working days after deposits
4)After-sale service: We provide one year guarantee and life-time technical support.
5)Installation: we shall send skilled technicians for the installation of the machine with the flight and accommodation charges on your side. Besides, we charge each day USD100/day/engineer.
6) Price Valid Time: 60days
7) Use condition: 380V/3PHRASE/50HZ


Main Parameters:

Water treatment system



This system is used to treat the water you get from under ground or other place, making it suitable for production of fruit juice drink. To different condition of the source water, the system will be different too.



1. Water boosting pump

Model: CDL 4-40

Capacity: 4 Ton per hour

Power consumption: 1.1kw

Material: Stainless steel 304





2. Quartz - sand filter

Model: 470*1800

Filtering object: suspended substance in water

Quantity: 1 piece

Capacity: 4 Ton per hour

Shape: Vertical pressure filter

Diameter of the barrel: 400 mm

Height: 1800 mm

Material of the barrel: FRP material

Material of the valve and pipe: SUS304

Filter material: blind coal refined quartz sand



3. Active Carbon filter

Model: 470*1800

Quantity: 1 piece

Capacity: 4 ton per hour

Shape: Vertical pressure filter

Diameter of the barrel: 400mm

Height: 1800mm

Material of the barrel: FRP material

Material of the valve and pipe on the barrel: SUS304

Filter material: Shell active carbon



4. Sodium ion exchanger

Model: 470*1800Quantity: 1 piece

Capacity: 4 ton per hour

Shape: Vertical pressure filter

Diameter of the barrel: 400mm

Height: 1800mm

Material of the barrel: FRP material

Material of the valve and pipe on the barrel: SUS304

usageMainly used for removing calcium and magnesium ions

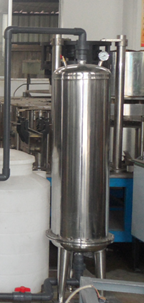

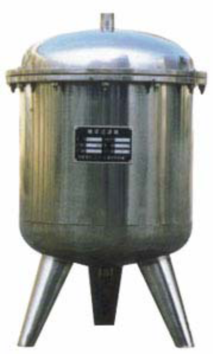

5. Precision filter

Model: 320*500

Filtering object: suspended substance in water

Quantity: 1 piece

Tank shape: Cartridge filter

Diameter: 320 mm

Height: 500 mm

Barrel material: SUS304

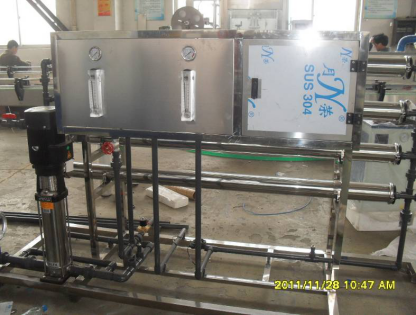

6. RO system



1. Model: FSJ-2 (1st grade)

2. Usage: This device is used to remove the germs, the harmful inorganic ion, and organic ion; remove heavy metals and salt; rearrange water structure. It is the ideal equipment to make high standard pure drink water.

3. Main design data: First grade RO≥0. 9m³/H (25ºC)



7. Ozone generator



Usage: The ultraviolet ray whose wavelength is the 253.7-275nm has the sterilization. So this product uses fully this characteristic of ultraviolet ray to sterilize. It generate the special ultraviolet ray using special ultraviolet ray generator, and then causes water which needed to process and ultraviolet ray full contact with high tech method, in order to major part pathogen like bacterium, the virus, the microorganism, the parasite are eliminated. It’s widely used in food industry due to the advanced characteristics.

 Main parameters:

 Quantity: 1 piece

 Treat water: 2 ton per hour

 Power consumption: 0.5kw





Juice drink mixing system

This system is used to mix water, suger and fruit juise concentrate, turning them into juice drink and preparing it for filling.

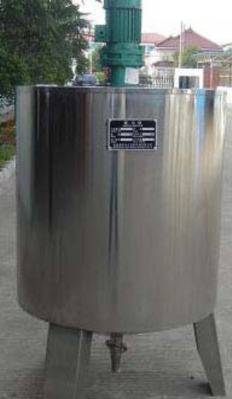

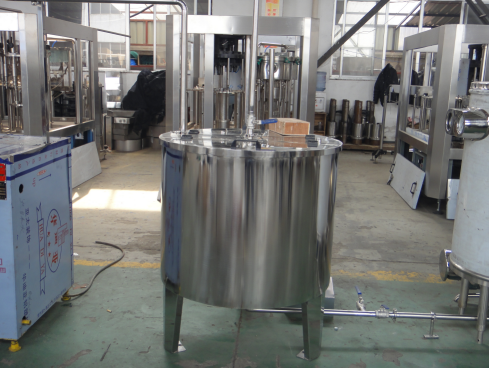

1. Sugar melting pot



Usage: the sugar melting pot is used for melting the sugar into syrup through heating and stirring to meet the process requirement. It is widely used in production of fruit juice and carbonated drink.

Main parameter:

Model: HT-500

Quantity: 1

Capacity: 500 kilograms one time

Diameter: 850mm

Height: 1700mm

Framework material: SUS304 Stainless steel



2. Syrup filter

Usage: the syrup filter is used for removing dreg from the syrup made by sugar melting pot. After the flitting the syrup becomes clear and pure. It’s essential equipment for the fruit juice production.

 Main parameters:

 Model: JML-500

Quantity: 1 piece

Capacity: 500 kilograms one time

Diameter: 200mm

Height: 1000mm

Framework material: Stainless steel

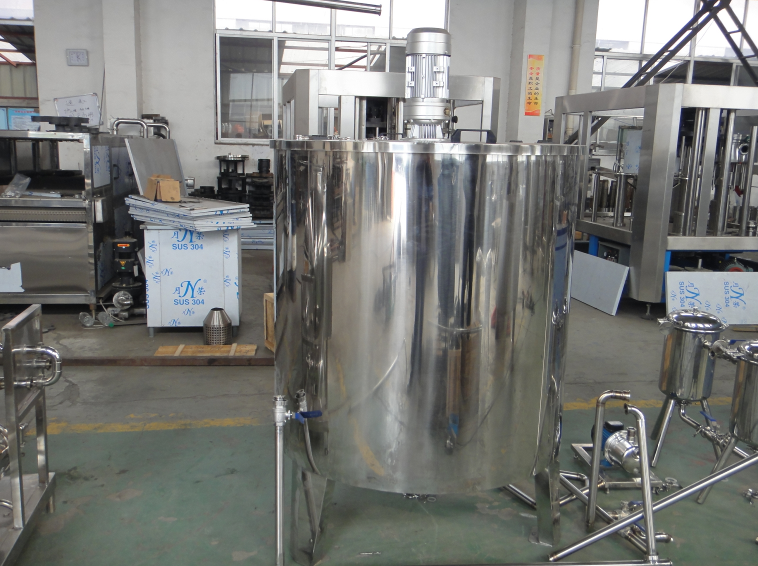

3. Mixing tank



Usage: the mixing tank is used for mixing water, fruit juice penetrate, and syrup together through stirring.

Main parameters:

Model: PL1000

Quantity: 2 pieces

Capacity: 1000 kilograms one piece one time

Diameter: 1000mm

Height: 2150mm

Framework material: Stainless steel 304



4. Double filter



Usage: The double filter are used to flit fresh milk, sugar fluid, drink, liquid cement, Chinese medicine fluid etc to remove each kind of slight pellet impurity in liquid accurately. The two flitting drums can work simultaneously or carry on the filtration in turn, changing flitting net without turning off the machine, specially suitable in the continuous production. It has advantages like flitting quick, low cost , easy operation etc.

Main parameters:

Model: ZHP-1

Quantity: 1 piece

Overall size: 250*800*1200mm

Framework material: SUS304



5. High tank



Main parameters:

Model: WSZ-500

Quantity: 1 piece

Volume: 200L

Material: SUS304



6. High pressure homogenizer



Usage: The GJB stretch high pressure homogenizer is a widely used device for homogenization of liquid and materials. It is widely used in the fields of dairy product, drinks, edible chemical medicine and biological technology. The material and liquid is homogenized under high pressure so as to reduce the delaminating and increase the pureness, looseness of the material and liquid to improve the quality of mixture.

Main parameters:

Model: GJB25-2

Rated pressure: 25 Mpa

Rated flow: 2 m³/h

Suitable material: liquid such as milk, soy milk, oil

Material temperature: ≤85℃

Pipe diameter of inlet orifice: ¢25mm

Pipe diameter of discharge hole: ¢15mm

 Motor power: 11kw

 Overall size L*W*H: 1030*680*1120mm

 Weight: 1000



7.  Low tank

Main parameters:

Model: TQ-200

Quantity: 1 piece

Volume: 200L

Material: SUS304

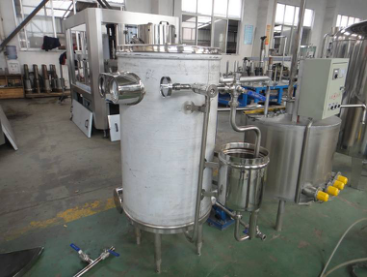

8.  Semi-auto ultra-temperature instantaneous sterilizer



Usage: The ultra-temperature instantaneous sterilizer is used to sterilize to the juice by instantaneous super-temperature heating. The temperature will reach between 115℃ and 135℃, so the effect of sterilization is very good. And the time of sterilization is very short so that the product keeps high quality. It is widely used in the production of frech milk, soybean milk, juice, beverage, and so on.

 Main parameters:

 Quantity: 1 piece

 Capacity: 2 ton per hour

 Framework material: Stainless steel 304



10. Insulation tank

Main parameters:

Quantity: 2 pieces

Volume for one tank: 2000L

Framework material: SS304

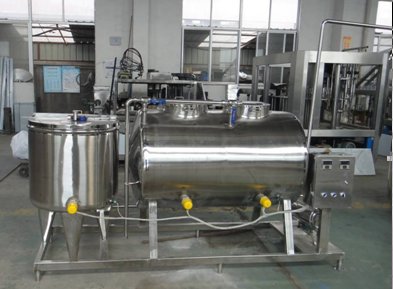

11. CIP cleaning system



1. CIP local cleaning system is specialized equipment used for automatic cleaning for beverage production line and filling facility. Such as milk, juice, carbonated drink etc. a centrifugal pump is used in CIP to convey liquid into product pipes to force the cleaning agent (Alkali, lye, hot water)to circulate inside to make cleaning without dismantling pipes. It is featured by high efficiency and labor saving. Acid washing, alkali washing and thermal can be chosen. CIP

2. The temperature for acid, alkali and hot water can be set.

3. The new generation of man-machine dialog operation system can be arranged with certain standard with ray operation.



Filling system

This system is used to fill the fruit juice into the bottles, then pake them into a pake after other necessery processes.

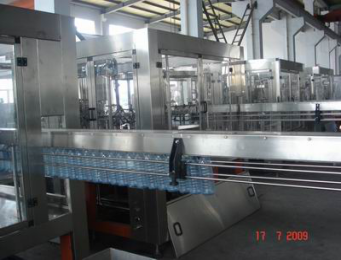

1. air conveyor



usage: the air conveyor is used to convey the PET bottle into the filling machine, hanging the neck of the PET bottle. Can connect with bottle blow moding machine, which making PET bottle.

Main parameter:

1)  Model: FS-2

2) Material: Stainless steel SUS304, made in china

3) Length: 2m

4) Manner of bottle inputting: Bottle handling with air delivering.

5) Power of motor: 0.75KW

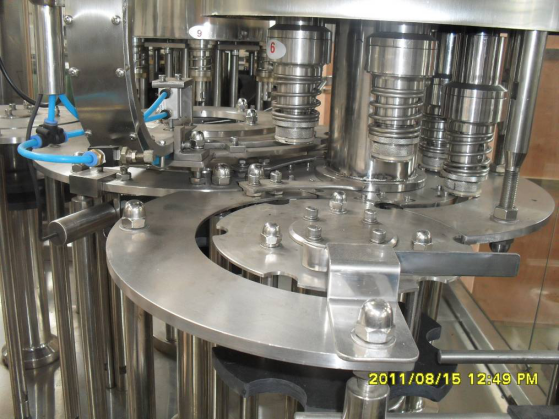

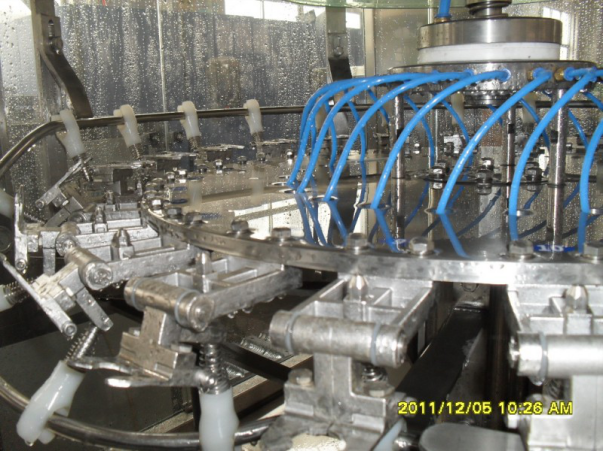

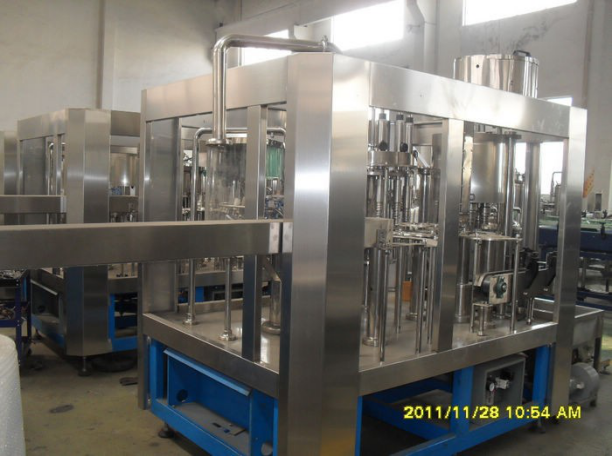

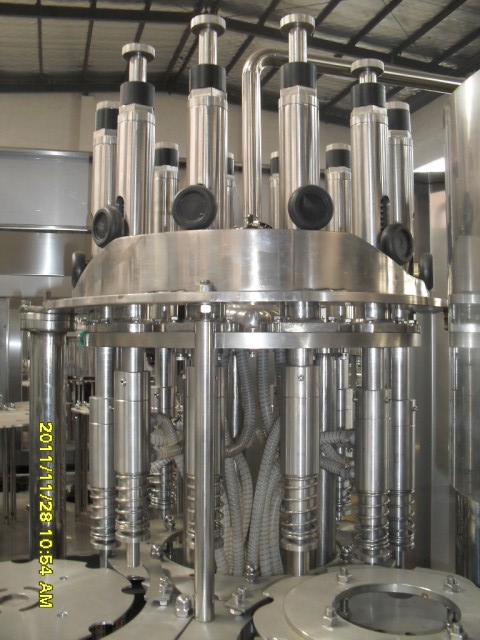

2. Washer-Filler-Capper 3 in 1 monoblock





Washing part





Filling part





Capping part



Usage: washing, filling and capping 3 in 1 monoblock is used for filling juice into PET bottle. Full automatically; it can finish washing (bottle), filling and capping three jobs in the one machine.

Primary features:

1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.

2) Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while  exchanging model of bottle to be need.

3) The all parts directly contacted with media are all adopted with food stage stainless steel without dead angle, so they can be cleaned easily.

4) Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.

5) Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling automatically with a high speed and the control of liquids level is accurate.

6) High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.

7) The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.

8) Adopting efficient cap settling system which carried perfect cap feeding and protection device.

9) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.

10) carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.

11) Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.

12) The primary electric components such as touch screen\PLC\transducer etc. are all adopted with world famous products.

Main parameter:

1) Model: RCGF16-12-6

2Washing heads quantity: 16 pieces

3) Filling heads quantity: 12 pieces

4) Capping heads quantity: 6

5) Applicable bottle: diameter 50-90,height 165-290

6) Air supply pressure: 0.6 Mpa

 7) Rinsing water consumption: 1 Ton/hour

8) Power consumption: 3.8kw

9) Weight: 2500kg

10) Dimension (L×W×H):2100*1500*2200mm

11) Production Capacity: 3000-4000b/h (based on 500ml bottle)



3. Cap loader

Usage: It is used for conveying caps into the capping machine by blowing. It starts to work automatically when it is lake of cap in the capping machine. The height and distance of transporting caps, the time of sterilizing can be adjusted as the requirement.

Main parameter:

1) Capacity: 4000 caps per hour

2) Power consumption for loading motor: 0.37 kw

3) Overall dimension (L*W*H): 750*650*2200mm

4) Framework material: stainless steel



4. Light checker



 Main parameter:

 Lighting tube quantity: 3 pieces

 Power consumption: 40w

 Material for framework: stainless steel

Size: 610*100*300mm



Packing system

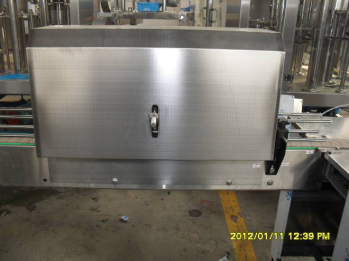

Blow dryer



1.Model:HG-I

2.Material:304 Stainless steel

3. The dryer have two layers with heat resistant material inside. UV heating lights

4. Auto temperature control

6. Air blowers1 sets

7. Power: 7.5kw

8. Dimension1000×300×1700mm



Ink Jet Code Printer



Print Function: Letterform lattice: 7X6, 7X8, 8X12, 12X12, 16X16, 24X24, 5X5

Print two line Chinese characters: (12X12)
Print lines: 1-3 lines (Adjustable)

Height of letter: 1.2-15MM (Adjustable)

Speed of print: 2m/s (Single line 7X6)

Print direction: Omni directional

adjusting Letterform widen: The most can reach 9 times

Power: 50W, 220V, 50HZ

Environment temperature: 5-40oC

Environmental humidity: 10%-90% RH (Without dew)

Specification of mainframe Outer dimension: 585X470x270mm

Weight: 42 KG

Case: Stainless steel

Container height: 150mm-350mm

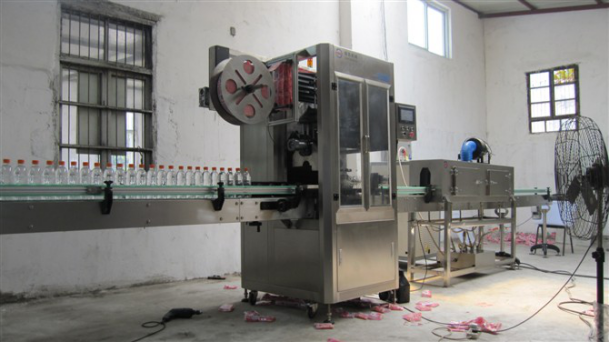

Labeling machine



Machine characteristic:

1. Optical-mechanical integration design, Mitsubishi electric control system, easy in operation, work reliably, high automatic degree.

2. Advanced bottle-allocating device instead of the former screw bottle-allocating device. The space between bottles is controlled accurately. No bottle gripped or falls down, milled condition.

3. Man-machine conversation operation, make it more convenient.

4. Auto examination device is applied, if there is no sleeve label signal, the machine will be in semi-sleep condition automatically. decrease running speed and spoilage, prolong the life of machine. in additional, main electric control element apply SIMENS of Germany. making the quality more ensured.5. Large application scope, in effective diameter range, round, square or other abnormity PET, glass bottle etc can be used.

Main technology parameter:

Model No: ZYP-100M

Production capacity: 100b/m (6,000b/h)

Machine material: stainless steel

Machine size (L×W×H):2,000×900×2450mm

Power supply: 3 phases 5 wires/380v/50Hz

Main Power: 1.5-2.5KW

Shrink machine power:1 5Kw-30Kw

Label length: 30mm-200mm

Label thickness: 0.03mm-0.05mm(other size can be used, but not suggested.)

Label material: PVC/PET/OPS

Container height: 150mm-350mm

Container diameter: 50mm-104mm(extra big bottles can be designed specially)

Weight: 600Kg

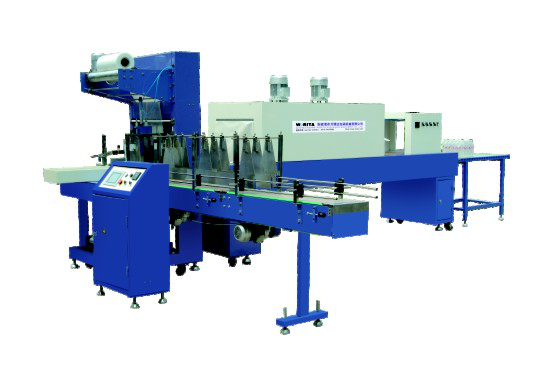

WD-150A automatic heat shrink packing machine

match 15000 b/h production line

model:WD-150A

overall size of the equipment:L5050×W3300×H2100mm

Max size of the package :L600×W400×H350mm

Shrink film material:PE、PVC、POF

Shrink film thickness:0.03-0.15mm

The highest temperature of the heating shrinking pot: 160 - 260°adjustable

Max production capacity/min:8-15bags

Equipment power:20Kw

Actual consumption:15Kw/h

Power requirement:380/220V

Equipment weight:1.2T

fan:1.1Kw  2sets 380V, 65W  4sets  380V










IT PROMOTING: BEIJING YIYUAN IT LTD

IN&EXPORT: BEIJING YIYUAN ECONOMIC TRADE LTD

WEBSITE: machine.mycotrade.com

E-MAIL: sales@mycotrade.com
