Juice hot Filling auxiliary
machinery

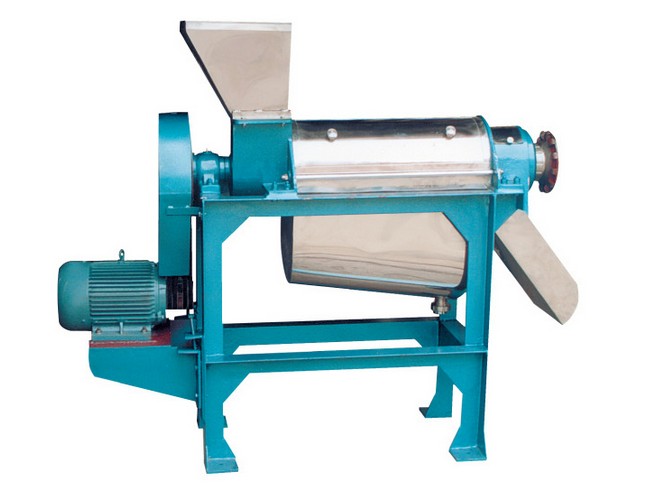

Juice: The main component is
enucleated after the flesh,
juice, leather bucket into the
screw through the juicer, the
spiral, the spiral along the
direction of the bottom material
residue outlet diameter
gradually increased and
decreased pitch, when the
material is the propeller,
chamber volume is reduced due to
the spiral form of the material
in the press. Viewed in the
rotational direction of the coil
axis of the slag tap from the
feed hopper to the direction of
clockwise. Material added into
the hopper, screw propulsion
under pressure, their juice
squeezed through the filter into
the bottom of the juice is
filled, and the waste is formed
by an annular space between the
screw and the conical section of
the discharge regulator, move
axially adjustable regulator
head size of the gap. Size for
clockwise (from the slag tank
equipment to look into the
hopper end handwheel bearing,
pressure head to the left, a gap
that is narrowing the gap
becomes larger and vice versa.)
Change the gap, that adjustment
slagging resistance to change
slag rate, but if the gap is too
small, the strong squeeze, the
particles will be part of the
slag and the juice is squeezed
out together through the filter,
although the juice increased,
but the quality of the juice of
the relative decline in the gap
Depending on the size of the
user should be specific process
requirements. So as to achieve
the purpose of automatically
separating the juice and bagasse.
The main technical parameters:
Fruit juice processing
capacity |
1.5T/h |
Screw diameter |
175mm |
Speed |
400rpm |
Power |
4kw |
Weight |
240kg |
Dimensions |
1560*450*1340mm |
¡¡

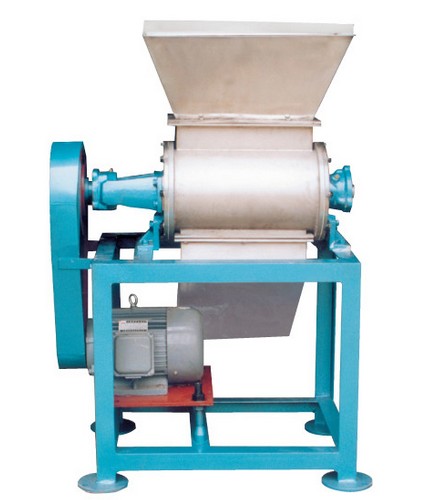

YPYS-3 Series Fruit & Vegetable
Breaker
Applies to apples, pears,
tomatoes, dates, asparagus and
other fruits and vegetables
broken.
The main technical parameters
Production capacity |
3.5T/h |
Flying Speed |
310rpm |
Power |
2.2kw |
Dimensions |
910*600*1175mm |
Weight |
400kg |

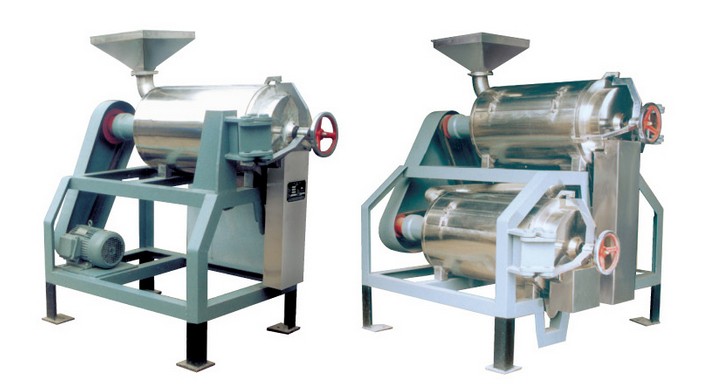

YDYJ Series Beater
The device is suitable for
pulping fruit and vegetable
materials, to the residue.
The main technical parameters
Production capacity |
2-4T/h |
Power |
3kw |
Weight |
350kg |
Dimensions |
1950*750*1400 |
Mesh aperture |
Single channel:1mm
Dual-channel:1mm,0.6mm |

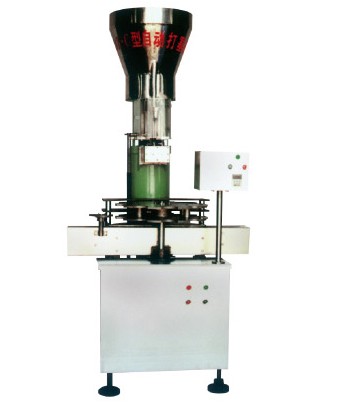

YDYZ-C Type Automatic Stopper
For a variety of wines and other
bottled liquids sealed with cork
software.
Device Features:
1.Computer stepless frequency
matched with any equipment used.
2.Small, compact, low energy
consumption, 50% of the other
similar devices
The main technical parameters
Production capacity
|
1000-3000B/h
|
Applicable bottle
height
|
150-500mm
|
Applicable diameter
cork
|
16-23mm
|
Muse height
|
30-50mm
|

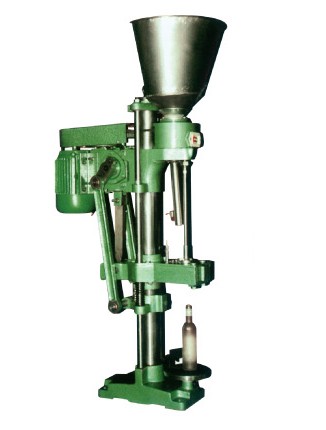

YFYW-2 Type Semiautomatic Press
Stopper
For a variety of wines and other
bottled liquids sealed with a
cork.
The main technical parameters
Applicable bottle height |
60-360mm |
Bottle diameter |
15-25mm |
Yield |
1200-1500Bottle /Hours |

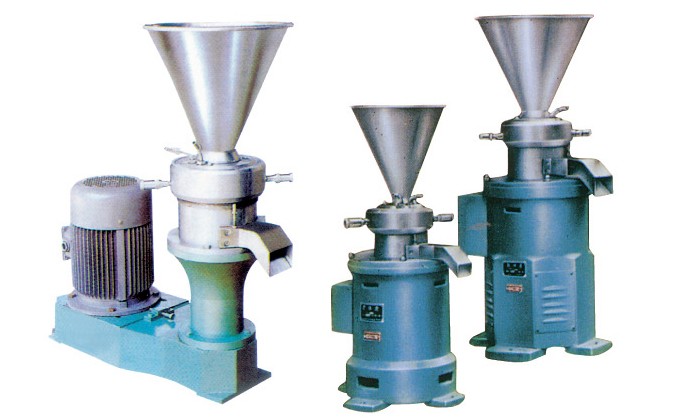

YDYJM Series Collotd Mill
The series colloid mill is a wet
ultra-fine processing of new
equipment, applicable to all
types of emulsion
homogenization, emulsification,
grinding, widely used in food,
jam, fruit juice, soy milk,
dairy, beverage and other
pharmaceuticals, various syrups
, nutrition, medicine,
pharmaceutical and other
household chemicals cream,
emulsion fineness 22nn, while
material contact parts are made
of stainless steel, food,
beverage, pharmaceutical, light
industry and other household
chemicals mixing the best
equipment.
The main technical parameters
Model |
Yield(T/h) |
PowerKw |
Dimensions(mm) |
Weight Kg |
YDYJM-100L |
0.5-2 |
7.5 |
500*500*1160 |
250 |
YDYJM-130L |
1-4 |
11 |
540*540*1270 |
290 |
YDYJM-110LA |
0.5-2 |
7.5 |
800*350*900 |
250 |

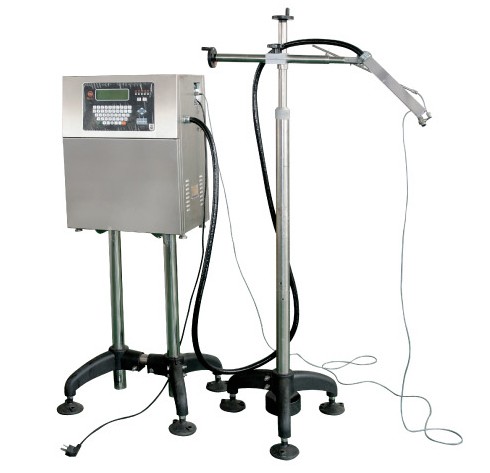

Inkjet Code Machine
1 can print 1-4 lines,
adjustable font size
2 Coding velocity 100m / min,
barcode 30m / minute
3.125ml ink jet printing 30
million Yu Fu (3mm high)
4 set of information can be
stored 100
5 for metal, clinker, glass,
paper and other materials
The main technical parameters
Type |
Production Capacity |
Working perssure |
Power |
Speed |
Weight |
YTYH-160 |
160kg/Pot |
<0.02 |
0.55kw |
35rpm |
100kg |
YTYH-350 |
300kg/Pot |
<0.02 |
0.55kw |
35rpm |
160kg |

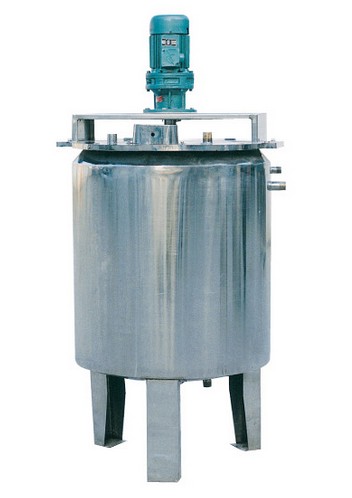

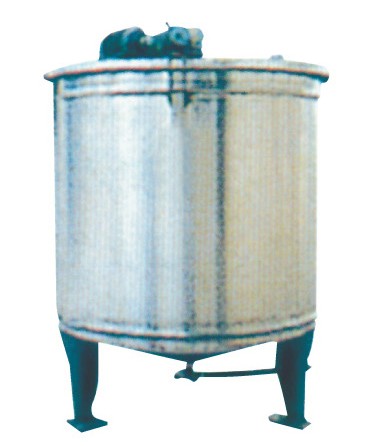

Compounding Vat
The main technical parameters
Type |
Production Capacity |
Power |
Speed |
Weight |
YJYB-500 |
0.5m3 |
0.55kw |
¦Õ980*1800 |
220kg |
YJYB-800 |
0.8m3 |
0.55kw |
¦Õ1200*150 |
300kg |

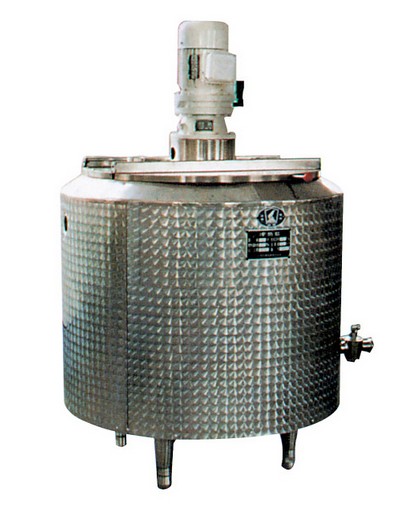

YLYR Series Vertical Type Cooling & Heating Device
This equipment is widely used in
the dairy industry and the
pharmaceutical, chemical and
other industrial sectors, the
liquid material object as
heating, cooling, heat
sterilization treatment or
storage of slurry must
equipment, energy-saving, noise,
acid, crack, cleaning, operation
advantages of convenience, is
one of the necessary equipment
beverage production line.
The main technical parameters
Model
|
YLYR-300
|
YLYR-600
|
YLYR-1000
|
Heat exchange aream2
|
1.9
|
3.3
|
4.4
|
Stirring speedr/min
|
40
|
40
|
40
|
Liner Sizemm
|
ø780¡Á665
|
ø980¡Á840
|
ø1200¡Á950
|
Powerkw
|
0.75
|
1.1
|
1.1
|
Dimensionsmm
|
990¡Á1630
|
1190¡Á1740
|
1410¡Á1870
|
Weightkg
|
350
|
480
|
680
|

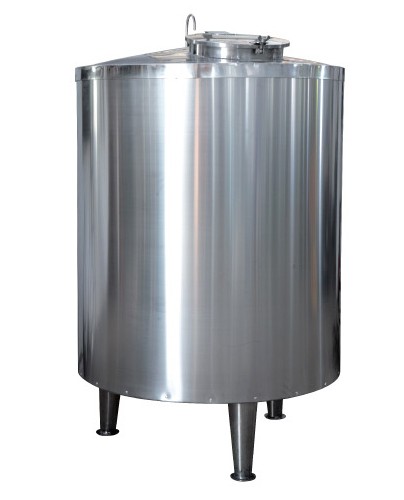

YCYG Series Materiel Storage
Tank
The storage tank is fully
enclosed structure, made of
high quality stainless steel,
can be equipped with an
automatic cleaning device and
liquid level control device,
according to user requirements,
installation sterilization
device of sterile storage is the
storage of mineral water,
purified water and other liquids
ideal storage device.
The main technical parameters
Model |
YCYG-600 |
YCYG-1000 |
YCYG-2000 |
YCYG-3000 |
YCYG-4000 |
Volume |
0.6 |
1 |
2 |
3 |
4 |
Imported Size |
1" |
1" |
1.5" |
2" |
2" |
Outlet size |
1" |
1" |
1.5" |
2" |
2" |
Dimensions |
¦Õ1000¡Á1440 |
¦Õ1000¡Á1980 |
¦Õ1200¡Á2600 |
¦Õ1550¡Á2600 |
¦Õ1550¡Á2920 |
Weight |
250 |
350 |
560 |
860 |
1200 |

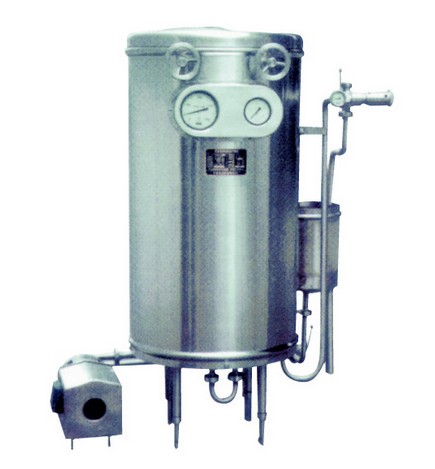

UHT Type Ultra Temperature
Instantaneous Sterilizer

Our use of the world's most
advanced stainless steel welding
technology, high-quality
polished stainless steel pipe
inner surface of the material,
so that product quality has
improved over the past nature.
There are a variety of Yield of
UHT temperature controlled
manually and two sizes. The
machine is mainly used for
sterilizing fluid feed milk,
juice, beverage, wine, milk,
medicine and so on. If the
high-pressure homogenizer can be
used to support high-viscosity
liquid (such as sweetened
condensed milk, etc.), is ideal
sterilization equipment. The
Company also supporting
automatic aseptic packaging UHT
products.
The main technical parameters
Processing capacity t/h |
1.5-2.0 |
2.5-3.0 |
4.5-5.0 |
Sterilization
temperature ¡æ |
115-135 |
115-135 |
115-135 |
Heating steam pressure ¡æ |
<0.8 |
<0.8 |
<0.8 |
Outlet temperature ¡æ |
<45 |
<45 |
<45 |
Electric motorPower kw |
2.2 |
<3.7 |
5.2 |
Equipment Weight kg |
300 |
480 |
650 |

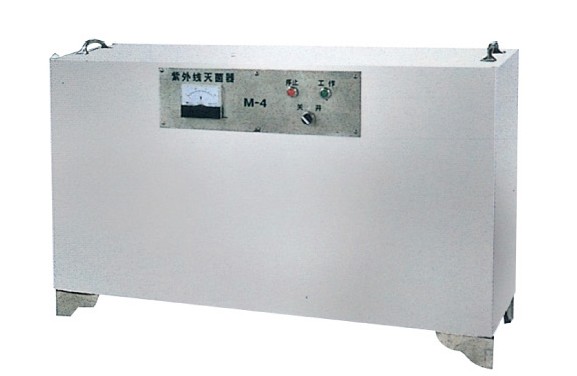

YDYK-4 Type Ultraviolet
Radiation Sterillzer

This product is made of high
strength, long life ZWS-pressure
UV germicidal lamp, reasonable
entire device, compact in
structure using secondary
disinfection, sterilization
better. By sterilization, water
sanitation tenders in full
compliance with national
drinking water standards.
The main technical parameters
Handling capacity£¨t/h£©
|
4
|
LampPower(w)
|
120
|
Working Pressure£¨Mpa£©
|
£¼0.2
|
Dimensions£¨mm£©
|
116¡Á75¡Á65
|
Weight(kg)
|
80
|

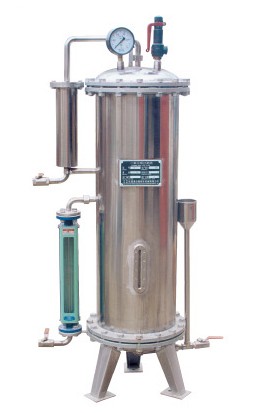

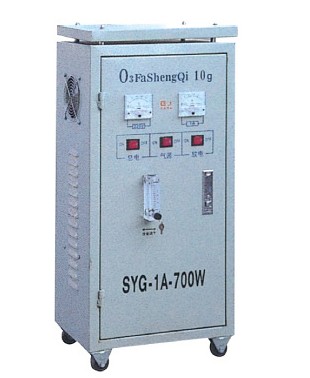

YXYG type ozone Sterilzer

YXYG series ozone generator is a
remarkably versatile product.
Mainly used as a disinfectant:
water, mineral water, drink
water, swimming pool water,
hospital sewage disinfection,
odor, odor; air purification in
public places; fruits, fresh
vegetables, eggs and so on.
The main technical parameters
Model
|
Power supply
V/HZ
|
Adjustable secondary
voltageKV
|
Discharge AreaM2
|
Standard intake
airm3/h
|
Dry air dew point¡æ
|
Working Pressure
Map
|
Ozone concentration
mg/L
|
OzoneYield
g/h
|
Power consumption
kwh/kgo3
|
YXYG-1
|
220/50
|
8-15
|
0.17
|
0.4-0.6
|
¡Ü-40
|
¡Ü0.08
|
8-18
|
4.5-5
|
15-18
|
YXYG-3
|
0.5
|
1.25-1.8
|
13.5-15
|
YXYG-7
|
1.2
|
2.9-4.5
|
30-15
|
YXYG-19
|
3.3
|
8-12
|
85-95
|
YXYG-42
|
7.2
|
17.5-26
|
190-210
|

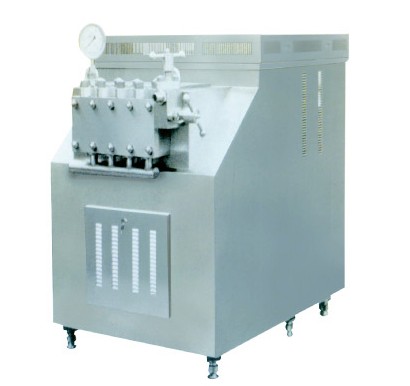

HB-YGYJB stretch high pressure
Homogenization machine
The pump is a versatile
homogeneous liquid can refine or
make a high-pressure liquid
spray equipment. Widely used in
the production of dairy
products, cold drinks,
beverages, edible chemical
pharmaceutical and biotechnology
fields. Liquid under high
pressure homogenization, can
play to prevent and reduce the
liquid layer material, improving
cleanliness thin liquid, the
porosity and improve the quality
of the products.
The main technical parameters
ProductsModel
|
Working Pressure
£¨MPA£©
|
FlowL/H
|
Motor PowerKW
|
WeightKG
|
Dimensions(m)
|
YGYJB0.5-25
|
25
|
500
|
5.5
|
450
|
1.3¡Á0.95¡Á1.1
|
YGYJB1-25
|
25
|
1000
|
7.5
|
750
|
1.3¡Á0.95¡Á1.2
|
YGYJB1.5-25
|
25
|
1500
|
11
|
800
|
1.3¡Á0.95¡Á1.2
|
YGYJB2.5-25
|
25
|
2500
|
18.5
|
1250
|
1.6¡Á1.1¡Á1.55
|
YGYJB3-25
|
25
|
3000
|
22
|
1300
|
1.6¡Á1.1¡Á1.55
|
YGYJB4-25
|
25
|
4000
|
37
|
1500
|
1.7¡Á1.2¡Á1.6
|
YGYJB5-25
|
25
|
5000
|
45
|
1600
|
1.7¡Á1.2¡Á1.6
|
YGYJB0.5-40
|
40
|
500
|
7.5
|
800
|
1.3¡Á0.95¡Á1.1
|
YGYJB1-40
|
40
|
1000
|
18.5
|
1200
|
1.6¡Á1.1¡Á1.5
|
YGYJB1.5-40
|
40
|
1500
|
22
|
1250
|
1.6¡Á1.1¡Á1.5
|
YGYJB2-40
|
40
|
2000
|
30
|
1300
|
1.6¡Á1.2¡Á1.5
|
YGYJB1-60
|
60
|
1000
|
22
|
1500
|
1.5¡Á1¡Á1.5
|
YGYJB1.5-60
|
60
|
1500
|
30
|
1800
|
1.6¡Á1.1¡Á1.5
|
RP9E15
|
20
|
3000
|
22
|
1250
|
1.8¡Á1.2¡Á1.4
|
RP9E9
|
21
|
800
|
7.5
|
750
|
1.3¡Á0.8¡Á1
|
3WRE
|
18
|
1500
|
11
|
1000
|
1.3¡Á1.1¡Á1.4
|

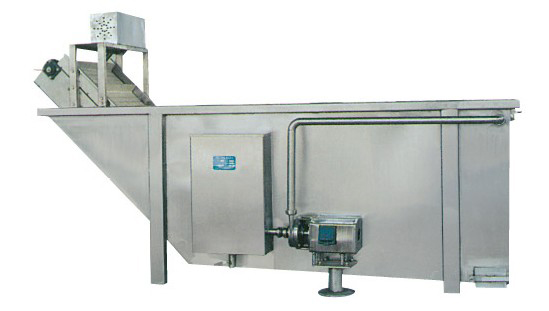

YCYXJ Series Surf Fruit Cleaner

The energy saving device for
cleaning raw fruits and vegetables,
raw fruits and vegetables used in
the wash cycle of the cleaning
process for continuously filtering
the water in any direction of
rotation, Major high. Circulating
water rushed out of the raw material
feed direction, comes with
elevators, convenient on-line.
The main technical parameters
Model |
Production capacity |
Power |
Overall dimensions |
YCYXJ-10 |
10 |
5.5kw |
300*1400*2000(mm) |
YCYXJ-5 |
5 |
5.15kw |
2540*1140*1800(mm) |
YCYXJ-2 |
2 |
5.15kw |
2353*910*1600(mm) |

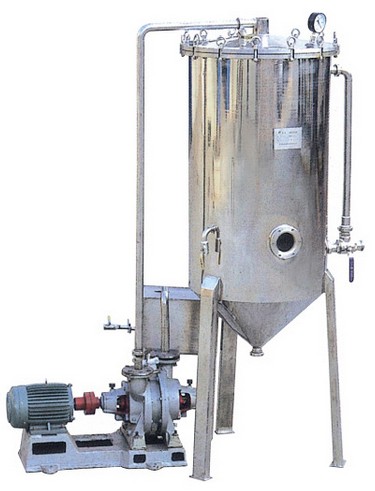

TQ series vacuum degasser
This machine is one of the
devices indispensable juice, tea
and other production lines. The
main purpose for the homogenized
juice under vacuum oxygen
removal, thus preventing
oxidation of the juice, the
juice to extend the storage
period.
The main technical parameters
Production capacity
|
1500kg/h
|
2500kg/h
|
When the degree of
vacuum working
|
0.03-0.09mpa
|
0.06-0.09mpa
|
Dimensions
|
1125¡Á600¡Á2360mm
|
1125¡Á780¡Á2360mm
|
Weight
|
350kg
|
600kg
|

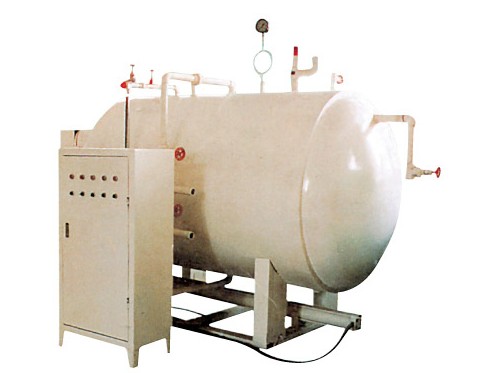

YSYQZ1200
Automatic Steam Sterilzing Pot
This
product is on the market today
more advanced automatic process
control steam sterilizer, is
horizontal, automatic
sterilization equipment
intermittent operation. The work
done by the whole process once
electrical and pneumatic process
control, widely used in all
kinds of canned foods are
convenience foods, food flexible
packaging, glass bottles and
beverage withstand high
temperature steam sterilization.
The main technical parameters
Production capacity
|
1200¹Þ/´Î
|
Effective
sterilizationVolume
|
0.98M
|
The maximum
operating
temperature
|
130¡æ
|
Maximum Working
Pressure
|
0.25MPA
|
Dimensions
|
5000¡Á2000¡Á2200MM
|
Weight
|
2500KG
|
QJ-C CO2 Purifer

The machine is mainly used for
carbonated beverage production
industry purification of CO2
gas.
The main technical parameters
Production capacity |
¡Ü6kg/h |
Working Pressure |
<0.6Mpa |
After purification
purity |
99.99% |
Dimensions |
650*450*1500mm |
Weight |
90kg |

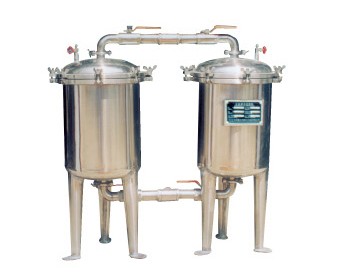

ZRP-4 Series Double Filter
The device is used to filter the
liquid materialThe main
technical parameters
Filter area |
0.3m3 |
Dimensions |
972*320*880mm |
Weight |
128Kg |

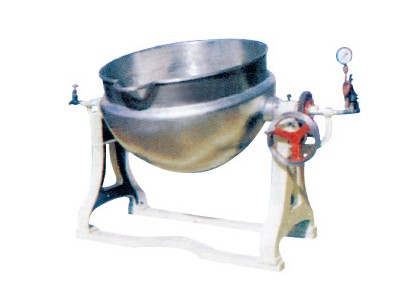

CQ Series Double-Layer
The
equipment is mainly used for
crushing fruits and vegetables,
heating, softening.
The main technical parameters
Volume |
300L |
Working Pressure |
0.15Mpa |
Heating area |
0.12m2 |
Dimensions |
1200*100*1100mm |
Weight |
260Kg |

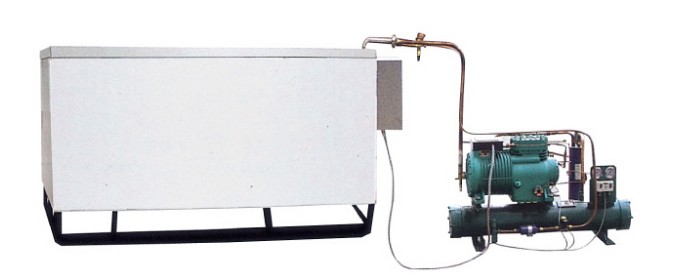

YLY Serles Cold Drlnk Tank

This machine is the production
of Soft drink auxiliary
equipment, the use of freon
compressor to F-12 as
refrigerant, and air pressure
switch with automatic
temperature regulator control.
Manufacturing Soft drink,
sparkling wine equipment.
The main technical parameters
Model
|
YLY1600
|
YLY-2000
|
YLY-3000
|
Compressor
|
2F6.3-S
|
JZS-2F-10
|
JZS-4F-10
|
Water tank
capacitym3
|
1.6
|
2
|
3
|
Evaporation aream2
|
7.2
|
11
|
20
|
Cooling capacitykj/h
|
33440(Ë«»ú)
|
58520
|
117040
|
Out of waterkg/h
|
400-800
|
1000-1500
|
1500-2000
|
Water temperature¡æ
|
0-5
|
0-5
|
0-5
|
Powerkw
|
6£¨Ë«»ú£©
|
11
|
22
|
Dimensionsmm
|
2200¡Á1200¡Á1800
|
2200¡Á1200¡Á1800
|
2200¡Á1250¡Á1800
|
Weightkg
|
1050
|
1230
|
1250
|

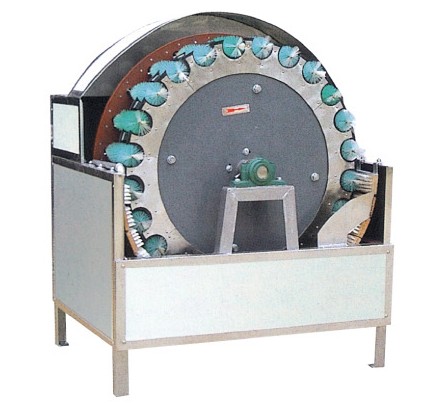

YXYP-24 Bottle Washer
The equipment used for wine,
sparkling wine, Soft drink
bottles and other cleaning
equipment.
The main technical parameters
Production capacity |
1800B/H |
Brush bottle number |
24 |
Bottle Size |
250-625ml |
Power |
1.5kw |
Weight |
600Kg |
Dimensions |
1130*960*1370mm |
CP-24 Bottle Punching Machine

This device is suitable for a
variety of different specifications
of bottled drinks bottles, plastic
bottles of water.
Production capacity£º2300B/H
Red bottle Heads£º24
Working Pressure£º0.2-0.3Mpa
Power£º0.75KW
Weight£º200Kg
Dimensions£º850X1300mm

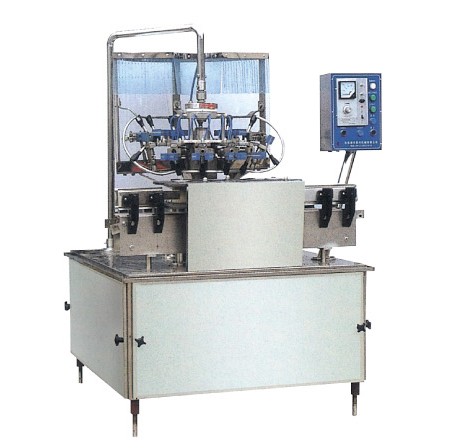

QS Serise Rotary Bottle Washer

QS series rotary bottle washer,
West Germany SEN company early
nineties technology, combined
with China's national conditions
developed, using continuous
tracking mode jetting washing,
high efficiency, good washing
effect, applicable to different
specifications of the
bottle-shaped plastic bottle
wide range, easy operation and
maintenance, etc.
The main technical parameters
Model
|
QS-12
|
QS-18
|
QS-24
|
Production capacity£º
|
2000-3000B/H
|
3000-5000B/H
|
5000-8000B/H
|
Bottle diameter£º
|
Ø60-Ø100mm
|
Ø60-Ø100mm
|
Ø60-Ø100mm
|
Bottle height£º
|
160-320mm
|
160-320mm
|
160-320mm
|
Power£º
|
0.75kw
|
1.1kw
|
1.45kw
|
Dimensions£º
|
1100¡Á1000¡Á1800
|
1400¡Á1250¡Á1800
|
600¡Á1450¡Á1800
|
Weight£º
|
800kg
|
1100kg
|
1500kg
|
¡¡
