Centrifugal Machine
YJRSDR470 CENTRIFUGAL MACHINE
|
Model |
disposal capacity
(kg/h) |
power
(kw) |
speed
(r/min) |
settlement spare (107cm2) |
press (kPa) |
weight (kg) |
size (L*W*H) (mm) |
|
in |
out |
|
YJRSDR470 |
450-650 |
15 |
6626 |
56.5 |
0-200 |
0 |
1560 |
1750*1000*1700 |

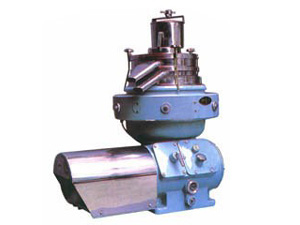

JRDR409CC-01
Disc separator
machine
|
Model |
Capacity
(L/h) |
Spindle speed
(r/min) |
G-force |
Bowl inner diameter (mm) |
Motor Power (kw) |
Size
(mm) |
|
JRDR409CC-01 |
460～700 |
7200r/min |
11000 |
395mm |
11 |
1260*990*1700 |
DHC500-Disc
separator machine
|
Model |
Capacity
(t/h) |
Spindle speed (r/min) |
G-force |
Bowl inner diameter
(mm) |
Motor Power
(kw) |
Size
(mm) |
Weight (kg) |
|
DHC500 |
10 |
4450 |
5500 |
510 |
18.5 |
1805*1400*1120 |
1500 |
YGF TUBE STYLE CENTRIFUGAL MACHINE
technical data:
|
Item |
YGF75 |
YGF105 |
YGFX105 |
YGF150 |
|
drum diameter (mm) |
75 |
105 |
105 |
142 |
|
drum speed (r/min) |
19000 |
16300 |
16300 |
13400 |
|
drum volume (L) |
2.2 |
6 |
6 |
10 |
|
Separation factor |
15200 |
15620 |
15620 |
14300 |
|
Diameter of feeding nozzle (mm) |
3,5,7 |
4,6,8,10 |
4,6,8 |
4,6,8,10 |
|
Press (Mpa) |
>0.05 |
>0.05 |
>0.05 |
>0.05 |
|
Throughput (L/h) |
600 |
1200 |
1200 |
2500 |
|
Motor power (kw) |
1.5 |
2.2 |
2.2 |
3.0 |
|
Weight (kg) |
300 |
570 |
580 |
665 |
|
Cooling area (m2) |
|
|
1.4 |
|
|
size (L*W*H) (mm) |
760*450*1120 |
840*500*1600 |
840*550*1600 |
900*550*1600 |

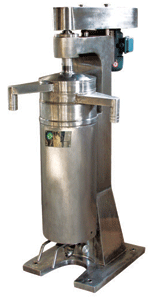

GQ105-Tubular Centrifuge
|
Model |
Capacity
(kg/h) |
Spindle speed
(r/min) |
Centrifugal Force(g) |
Bowl inner diameter
(mm) |
Motor Power
(kw) |
Weight
(kg) |
|
GQ105 |
300-800 |
16000 |
15050 |
105 |
380V/50Hz |
550 |
|
Capacity varies by different
requirements for the
condensed latex. |

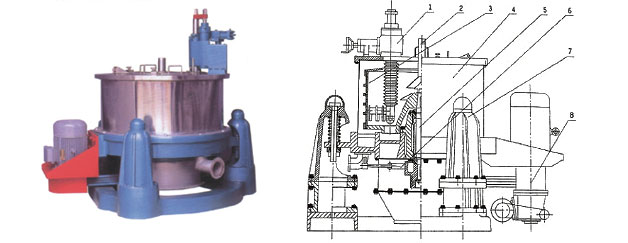

YSGZ
THREE- FEET AUTO-DISCHARGE FROM THE
BOTTOM OF THE SCRAPER CENTRIFUGAL
MACHINE
1.scraper
2.feed pipe
3.revolving drum
4.outside shell
5.base bearing
6.brake
7.seat
8.structure of starting and reducing
speed
technical data:
|
Model |
drum |
Separation factor (w²r/g) |
power (kw) |
weight (kg) |
size (mm) |
|
diameter (mm)
|
capacity (L) |
limited intake (kg) |
speed (r/min) |
|
YSGZ800 |
800 |
100 |
140 |
1200 |
644 |
7.5 |
3000 |
1900*1500*1900 |
|
YSGZ1000 |
1000 |
150 |
200 |
1080 |
560 |
11 |
4000 |
2300*1900*2300 |
|
YSGZ1250 |
1250 |
280 |
380 |
900 |
566 |
18.5 |
4700 |
2587*1900*2300 |
order notice:
we can
design different types according to the
centrifuge need, so please confirm the
following things:
1.material
of the machine: the material where touch
the centrifuge things can be stainless
steel, titanium, carbon steel, liner
rubber, liner plastic, etc.
2.way of
driving: common asynchronous motor,
flameproof asynchronous motor,
electromagnetic speed regulating or
variable frequency speed regulating.

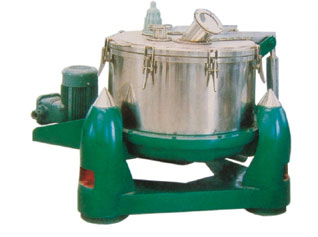

YSSB
THREE- FEET DISCHARGE FROM THE TOP OF
THE SCRAPER CENTRIFUGAL MACHINE
technical data:
|
ART |
TYPE |
|
YSSB600 |
YSSB800 |
YSSB1000 |
YSSB1200 |
YSSB1250 |
|
drum diameter (mm) |
600 |
800 |
1000 |
1200 |
1250 |
|
drum thickness (mm) |
5 |
6/8 |
8/10 |
10/12 |
12 |
|
drum capacity (L) |
45 |
100 |
140 |
280 |
310 |
|
limited of intake (kg) |
75 |
136 |
200 |
380 |
420 |
|
speed (r/min) |
1500 |
1200/1500 |
1000/1200 |
800/1050 |
960/1050 |
|
Separation factor (w²r/g) |
850 |
645/1006 |
560/806 |
620/740 |
645/770 |
|
power (kw) |
3 |
5.5/7.5 |
7.5/11 |
11/15 |
15/18.5 |
|
size (L*W*H) (mm) |
1410*1140*800 |
1680*1300*980 |
2000*1550*1200 |
2260*1765*1300 |
2260*1765*1350 |
|
weight (kg) |
980 |
1500 |
2000 |
3000 |
3200 |
