Centrifugal Machine

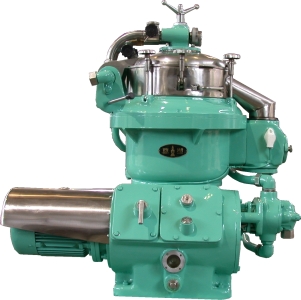

YQTD350 CENTRIFUGAL MACHINE

Model YQTD-350HZ disc type separator, with auto-cleaning, is a device for separating of liquid-liquid-solid or liquid-liquid phases. Widely applied in oil extraction, for instance purification of palm-oil, rape-seed oil phosphorus removal, and also applicable in purifying, clarifying, or concentrating a suspension with compositions, insoluble and different in gravity.


technical data:

1.Type: YQTD-350HZ
2.G-Force: 6368
3. Bowl
 a. External Diameter 405mm
 b. Inner Diameter 350mm
 c. Disc Spacing 0.6mm
 d. Disc Angle 80<
4.Worm Wheel Speed 1440rpm
5.Spindle Speed 6069rpm
6.Motor.Power:5.5Kw
7.Overall Dimension (LxWxH) 1321mm x 962mm x 1324mm
8.Pressure for Operation Liquid 0.015 to 0.03Mpa(low), 0.15 to 0.3 Mpa (high)
9.Washing Liquid and Sealing Liquid
 a. Pressure 0.2 to 0.4 Mpa
 b. Temperature (Max.) 93≧
10.Material: AISI321 for all the parts in contact with the suspension.
11.Capacity: 2-4.5t/h (varying with different specific suspension to be treated)

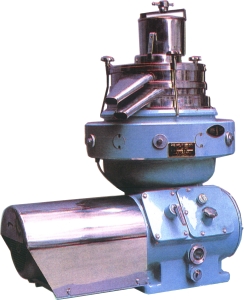

YLX560 DISC SEPARATOR MACHINE

The Model YLX560 Latex Separator is used for condensing latex by taking out water and solid matters.
Th
e machine generates centrifugal force when the bowl rotates at high speed and this force effectively separates latex from water and solid matters by their respective gravity. The condensed latex flows to the container through a spout on the upper cover and the watery latex goes through a spout on the lower cover. The machine should be stopped after a 2-3 hour's operation for the removal of the solid matters deposited at the inner wall of the bowl, and the removal can be made by using a scraper.

technical data:

1. Model: YLX560
2. G-Force: 11550
3. Bowl: a. Inner Diameter: 400mm
b. Disc Spacing: 0.5mm
4. Spindle Speed: 7188rpm
5. Motor Power: 15Kw:
6. Overall Dimension (LxWxH): 1300mm x 843mm x1690mm
7. Capacity: 420-600 kg/h (varying with different requirements for the condensed latex)

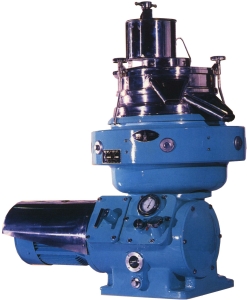

YLX460 DISC SEPARATOR MACHINE

The Model YLX460 Latex Separator is used for condensing latex by taking out water and solid matters.
The machine generates centrifugal force when the bowl rotates at high speed and this force effectively separates latex from water and solid matters by their respective gravity. The condensed latex flows to the container through a spout on the upper cover and the watery latex goes through a spout on the lower cover. The machine should be stopped after a 2-3 hour's operation for the removal of the solid matters deposited at the inner wall of the bowl, and the removal can be made by using a scraper.


technical data:

1. Model: YLX460
2. G-Force: 10750
3. Bowl: a. Inner Diameter: 395mm
b. Disc Spacing: 0.5mm
4. Spindle Speed: 7027rpm
5. Motor Power: 11Kw:
6. Overall Dimension (LxWxH): 1210mm x 843mm x1665mm
7. Capacity: 320-600 kg/h (varying with different requirements
for the condensed latex)

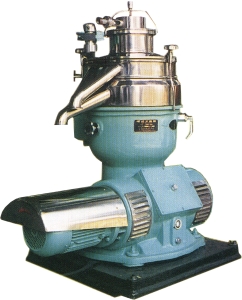

YDRY-366 DISC SEPARATOR MACHINE



Model YDRY-366 is intended for separation of two insoluble liquids with different gravity and a small content of fine particles in the liquids. It can clarify fruit juices and other liquids, too. Widely applied in the industries of foodstuff and beverage, domestic chemicals, grains and eatable oils, woolen spinning, pharmaceuticals and the like. The separator can separate orange oil, ginger oil, litsea cubeba fruit oil, Chinese pear leaved crabapple oil, banks oil, fatty acid, lanolin, wanhui balm and so on. It can also clarify Chinese made up herbs. The efficiency of the Separator is thousands of times that of the other separator.

technical data:

1. Model: YDRY-366
2. G-Force: 9150
3. Bowl: a. Inner Diameter: 366mm
b. Disc Spacing: 1 mm
4. Spindle Speed: 6670 rpm
5. Motor Power: 5.5 Kw:
6. Overall Dimension (LxWxH): 1030mm x 1186mm x1136mm
7. Capacity: 1000-4000 kg/h

1      2     3
