Fully-automatic Compound Sugar Bars Production Line

CTNYY-457 Fully-automatic Compound Sugar Bars Production Line



CTNYY-457 Cereal chocolate bars line automatic shaping machine is all kinds sugar line produce equipment. It has all automatic continue technologic, high production advanced technology. Coordinate with the chocolate spray machine, it can produce all kinds chocolate compound products.

1. PRODUCTS SPEC, CAPACITY AND MAIN PAPRAMETERS

Model

CTNYY-457

Capacity

REACH 300KG/HR

Power Require

380/240V 60HZ, 3 PHASE

Steam require

0.2-0.8Mpa, 200kg/hr

Compressed air

0.6Mpa 1.2m³/ min

Working Condition

18-25℃ ,30-55%humidity

Factory Size

L25M,W>5M,H>2.5M

Total weight

20500KGS

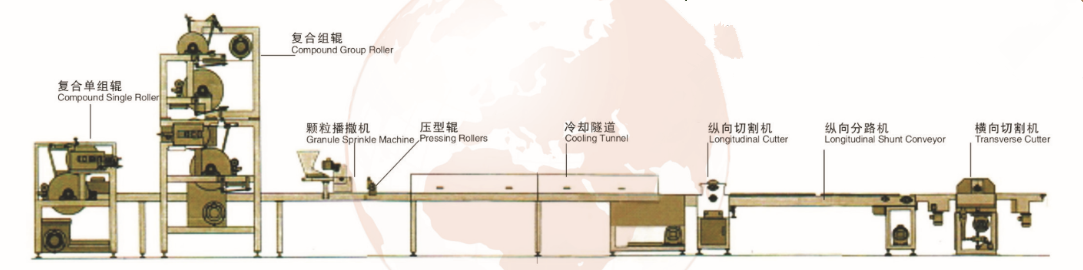

2.FLOW CHART:

3.PRODUCT PICTURES

4. list of product

NO

NAME OF GOODS

QTY

1.Protein Syrup Cooking System

01

300L Dissolving Sugar Machine

1set

02

200L Sugar Storage Tank

1set

03

Syrup delivery pump

1set

04

Double screw pump

1set

05

Protein White/Nougat Sugar Aerating  Cooker

1set

2.Toffee candy cooker system

06

300L Dissolving Sugar Machine

1set

07

200L Sugar Storage Tank

1set

08

Syrup delivery pump

1set

09

Toffee Candy Cooker

1set

3.Forming system

10

Support platform

1set

11

Compound single roller

1set

12

Liquid Spraying Roller

1set

13

Compound Group Roller

1set

14

Granule Sprinkle

1set

15

Continuous pressure group plastic roller

1set

16

Cooling Tunnel

1set

17

Longitudinal Cutting Machine

1set

18

Transverse Cutting Machine

1set

19

180 Degree Turning Machine

1set

20

cooling conveyor

1set

4.Chocolate coating system

21

300L Chocolate Heating Preserve Tank

1set

22

Paste Feeding Pump

1set

23

600 Chocolate Enrobing Machine

include cooling tunnel)

1set

5.Packing system

24

Conveying for bedding line

1set

25

250 Pillow type packaging machine

2sets

Delivery time: delivery in 60-90 work days after receiving payment.
Service: Provide free installation, training, debugging and recipe. The buyer needs to bear the round trip tickets, accommodation, visa and pay each engineer USD80 per day.



5.Illustration & Main Technology Parameter

Illustration & Main Technology Parameter

Quality

(SET)

300L Dissolving Sugar Machine

1. Outside dimensions: Ø1120×1080mm

2. Heating area:2㎡

3. Working pressure: 0.09Mpa

4. Power: 0.75kw

5. Weight:150kg

2

200L Sugar Storage Tank

1. Motor power: 380V  0.55kw

2. Strainer mesh: 80-100

3. Weight: 120kg

4. Dimension:ø800*1200mm

2

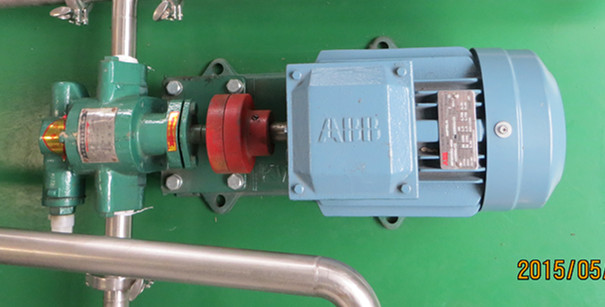

Syrup delivery pump

1. Flow rate: 3.3m³/min

2. Diameter:1”

3. Outlet Pressure: 0.32Mpa

4. Motor power:  1.1kw

5. Weight : 40kg

6. Outside dimension : 600×450×400mm

2

Double screw pump

1. Flow rate(L/min): 32

2. Delivery lift(M) :2

3. Motor power(kw): 1.5

4. Weight (kg): 120

5. Dimension(mm) :780×390×350



1

Protein White/Nougat Sugar Aerating  Cooker

1. Capacity:300kg/h

2. Main motor power:11kw

3. Vacuum pump power:4kw

4. Steam requirement:<200kg/h;0.7Mpa

5. Compressed air requirement<0.25m3;0.6Mpa

6. Vacuum:-0.04Mpa

7. Inflating pressure:<0.3Mpa

8. Dimension:2500×1500×3800mm

9. Weight:1500kg

1

Sugar Cooker

1. Outside dimensions: 1800×1650×2350mm

2. Steam requirement:300kg/hr 0.7Mpa

3. Cooking weight of each batch:160kg

4. Batch cooking time:35min

5. Power: 5.5kw

6. weight:1500kg

1

Support platform

1. 304 stainless steel

2. Dimension (mm)7400×4000×2600

3. Weight (kg): 2500

1

Compound single roller

1. Power: 4kw

2. Outside dimensions: 1050×800×2100 mm

3. Weight: 800kg

1

Liquid Spraying Roller

1. Power: 1.1 kw

2. Overall size: 1060×2010×1040mm

3. Weight:300kg

1

Compound Group Roller

1. Power: 5 kw

2. Overall size: 1200×800×2450mm

3. Weight:1500kg

1

Granule Sprinkle

1. Outside dimensions: 3500×800×1100mm

2. Weight:300kg

3. Power:2.2kw

1

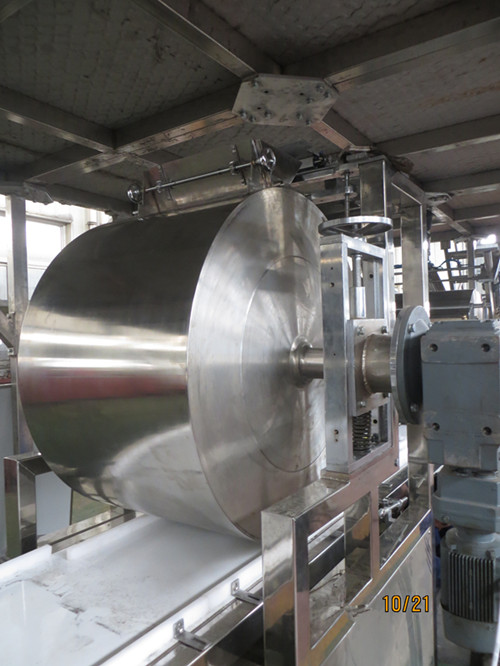

Continuous pressure group plastic roller

1. diameter:Φ300mm

2. width:600mm

3. velocity:0~10m/min

4. Outside dimensions: 600×580×400mm

5. Weight:1200kg

1

Cooling Tunnel

1. Power: 10kw

2. Refrigerator: 5Hp *2 unit

3. Outside dimensions: 12000×650×1050mm

1

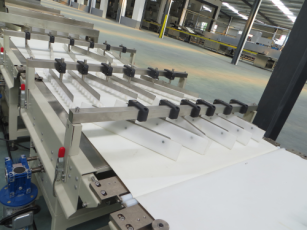

Longitudinal Cutting Machine

(include Longitudinal Branching Machine)

1. Outside dimensions: 2400×900×1150mm

2. Weight:800kg

3. Power: 2kw

1

Transverse Cutting Machine

1. Outside dimensions: 2200×1460×1160mm

2. Weight: 500kg

3. Power: 0.55kw

1

180 Degree Turning Facility

1. Dimensions : ø4700×950×810mm

2. Weight: 500kg

3. Power: 1.5kw

1

cooling conveyor



1. Dimension: 6000* 700* 810mm

2. Power:0.75kw

3. Weight:500kg

1

300L Chocolate Heating Preserve Tank

1. Parameter:300L

2. principal axis rotating speed: 22.5r/min

3. Total capacity:6kw

4. Outside Dimension: ø 760*1370mm

5. total weight: 200kg

1

Paste Feeding Pump

1. Flow rate:32L/min

2. Delivery lift:8m

3. Motor Power:1.5kw

4. Outside dimensions: 780*390*350 mm

5. Weight:205kg

1

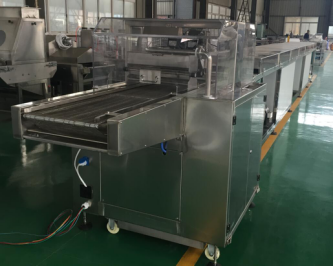

600 Chocolate Enrobing Machine

include cooling tunnel

1. Refrigation: 5HP * 2 UNITS

2. Power: 5.5kw

3. Dimension: 12500* 1100* 1500mm

1

Conveying for bedding line

1. Dimension:8000* 1500* 1100mm

2. Power: 1.5kw

3. Weight: 1500kg

1

250 Pillow type packaging machine

4. Film width: 250mm

5. Bag length: 65-190mm

6. Product height: 5~35mm

7. Packing speed: 40-230 bags/min

8. Voltage:  220V/50HZ

9. Power:  2.4kw

10. Dimension: (L)3770×(W)670×(H)1450mm

11. Total weight: 450Kg

2
