Industry Washing Machine
The machines have capacity
of 30kg,50kg,70kg,100kg,150kg,200kg,250kg,
270kg, 300kg,400kg . The
machine is of horizontal
type , the cylinder is made
of quality stainless steel
,which has smooth surface ,
that our machine don’t do
any damage to any material
inside the machines . The
industrial washing machine
is consist of inner drum ,
outer drum , motor , support
legs ,driving parts ,and
electricity parts , which is
reasonable instruction and
easy to install . The
machine’s working theory is
that : the driving belt
transfer the power of the
top motor to the inner drum
,and turning forth and
reversing . material inside
the drum will be cleaned by
scrub with machine’s smooth
surface and scrub with
material itself . Besides
over heat protector , over
load protector , time
setting device , controller
of drum’s turning forth and
reverse are also applied in
the industrial washing
machine .safety system is
also applied in this machine
that the machine will stop
if the machine’s door is
opened during its running.
工业洗衣机：按容量大小分为：30kg、50kg、70kg、200kg、250kg、300kg等系列。该设备是滚筒型，内、外壳采用优质不锈钢制作而成，平整光滑、耐腐蚀、不损伤织物。该机由内筒、外筒、电机、支撑总成、传动总成、电器总成组成。
结构合理、安装使用方便。工作原理：由顶置电机、三角胶带、带动传动总成，使内筒作正反转运转，
通过织物与织物、织物与内筒壁的相互摩擦，达到洗涤效果。机器内置过热、过载装置、定时装置、正反转控制装置。外筒门设有安全装置，若运行中门被打开，机器立即停止运转，确保机器、操作人员的安全。
 |
 |
 |
|
YSX15-50KG Washing
Machine |

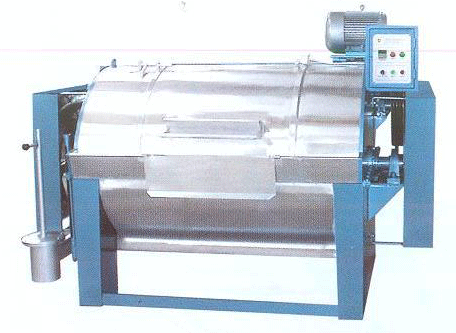

SX100 Washing
Machine |

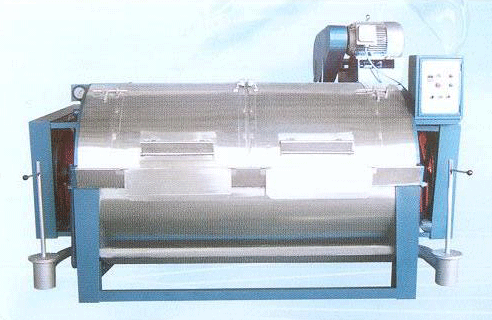

200-400KG Washing
Machine |
|
YSX15-50KG 洗涤机 |
YSX100 洗涤机 |
200-400KG洗涤机 |
 |
 |
 |
|
Do The Mill
200-300KG |

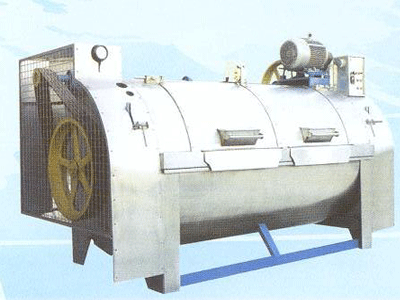

300KG Washing
Machine Of All Steel |

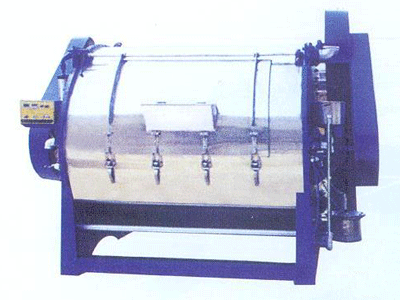

270KG Washing
Machine Of Japan |
|
干磨机200-300KG |
300KG全钢洗涤机 |
日式270KG洗涤机 |
Specification Of Industrial
Washing Machine:
|
型号
Model
|
容量
Capacity
(kg)
|
电机功率
Motor Power(kw)
|
滚筒尺寸
Drum
Dimension(mm)
|
外形尺寸
Overall
Dimension
(mm)
|
机重
Weight
(kg)
|
|
SX-30
|
30
|
1.1
|
ф700×860
|
1600×880×1400
|
650
|
|
SX-50
|
50
|
1.5
|
ф700×1000
|
1810×910×1400
|
680 |
|
SX-70 |
70 |
2.2 |
ф850×1160 |
1870×1110×1650 |
750 |
|
SX-100
|
100
|
3
|
ф980×1400
|
2400×1500×1650
|
800 |
|
SX-150 |
150 |
4 |
ф1080×1660 |
2560×1570×2140 |
1050 |
|
SX200
|
200
|
5.5
|
ф1080×2000
|
2900×1600×1760
|
1200
|
|
SX250
|
250
|
7.5
|
ф1200×2200
|
3100×1858×1900
|
1500 |
|
SX-270（气动）
|
270
|
15
|
ф1800×1500
|
2840×2200×2500 |
3900
|
|
SX-300
|
300
|
7.5
|
ф1280×2235
|
3240×2400×2150
|
1850
|
|
SX-400
|
400
|
11
|
ф1500×2400
|
3400×2500×2200
|
3000
|
Main Characteristics:
1.
Adopting the horizontal
cylinder type, the
internal and external
section of thick bamboo
adopts the high quality
stainless steel board and
succeeds refined, level it
bright, able to bear
corroding, the wearing and
tearing to the fabric has
and not damaged small, the
machine has long performance
life;
2.
Interior section of thick
bamboo build and equip with
stainless steel lock
organization is other
section of thick bamboo
cover electric apparatus
each other lock the device
by door, safely by door, It
is safe and reliable to turn
round;
3.
Use a sticky tape of
trigonometry of
transmission, vibration is
small, turn round steady,
durable in use.
主要特点：
1.采用卧室滚筒型,内外筒均采用优质不锈钢板精制而成,平整光亮,耐腐蚀,对织物的磨损小且无损伤,机器使用寿命长；
2.内筒门盖均装有不锈钢安全锁紧机构,外筒门盖上设有电器互锁装置,运转安全可靠；
3.采用三角胶带传动,振动小、运转平稳、经久耐用。 |
