Wind Power Generator

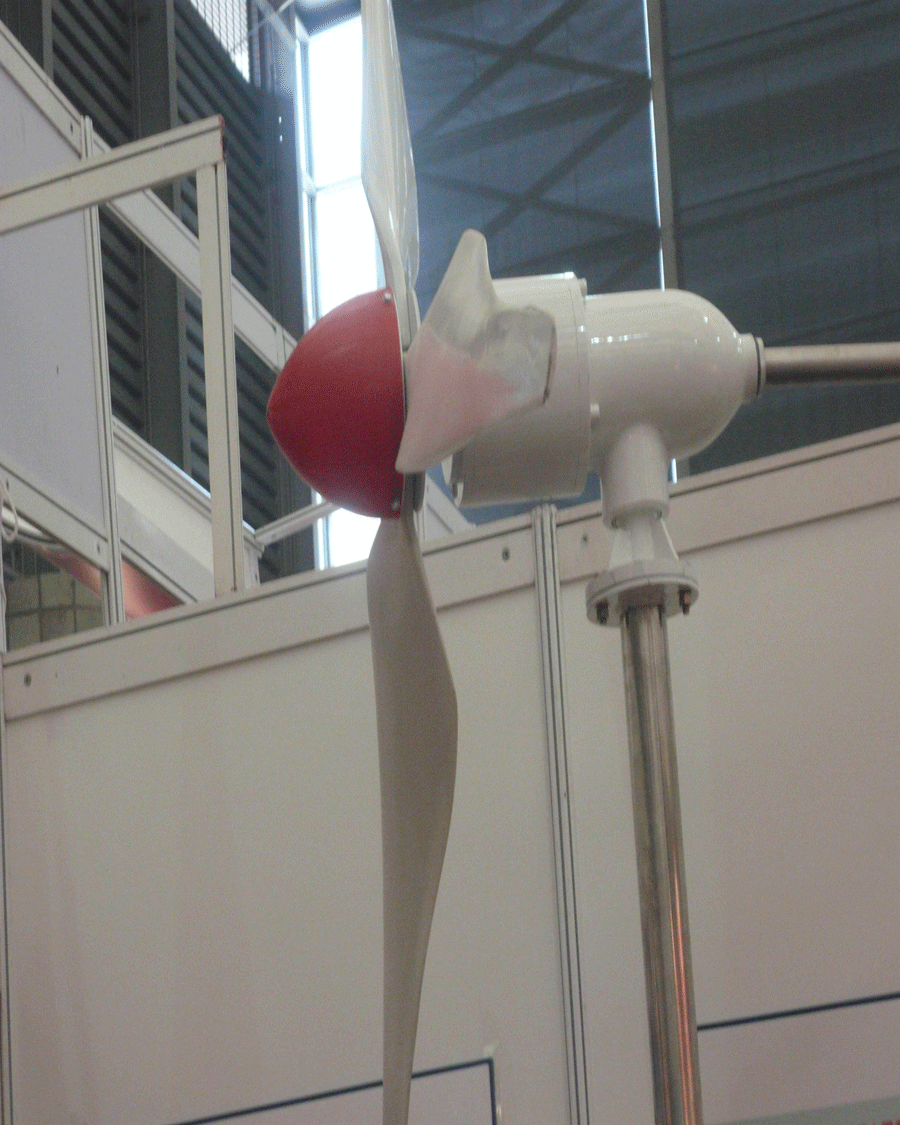

 FD2.2-200W



YFD2.2-200W



Technical Parameters:

Blade diameter:2.2m
number of blades: 3
blades material: fiber glass
rated wind speed: 8m/s
start wind speed: 3m/s
working wind speed: 3-25m/s
security wind speed: 40m/s
rated output power: 200W
max output power: 350W
rated speed: 400r/min
type of generator:
permanent-magnets-3 phase A.C.
speed regulation: yaw & magnetic resistance
output voltage : DC24V,
tower type: pull wire tubular tower
normal tower height: 6m
weight of top section: 27kg
CAN SUPPLY POWER FOR LIGHTINGELECTRIC FAN AND CHARGE.
Necessary battery: 12V 150AH 2 pieces
Net weight: 85KG
Gross Weight: 100kg
The wooden packing size: 113x51x32

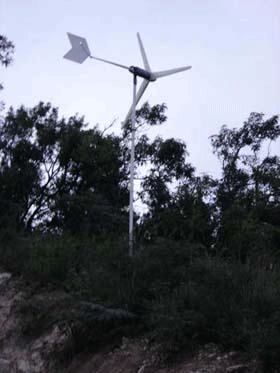

  YFD3.2-1000W



YFD3.2-1000W


Technical Parameters:

blade diameter: 3.2m
number of blades: 3
blade material: fiber glass
rated wind speed: 8m/s
start wind speed: 3m/s
working wind speed: 3-25m/s
security wind speed: 40m/s
rated output power: 1kw
max output power: 1.5kw
rated speed: 400r/min
type of generator: permanent-magnets-phase A.C.
speed regulation: yaw& magnetic resistance
output voltage : DC48V
tower type: pull wire tubular tower
normal tower height: 6m
weight of top section: 83kg
Necessary battery: 12V 150AH 4 pieces

Net weight:156kg
Gross Weight:   192kg
The wooden packing size :165X55X46
