Shrink Packaging Machine



Shrink Packaging Machine-TBS-A Series



TBS4525A                                                               TBS4535LA


Product Description

Its adopts hot-wind & down-cyclone structure, the height of the stove tunnel, the speed and the two sides shutter are adjustable. Further it also fix advanced intelligence temperature control . Conveyor is alternative with roller or teflon mesh .
TBS 4525A has a single hot wind tunnel, and the TBS6535LA is designed into double hot wind and prolonged tunnels for better shrinking effect.
Its suitable for PVC, POF, PP shrink film.

Specifications

TBS4525A

TBS4535LA

TBS6535LA


Voltage(V/Hz)

220/50(Single phase)
380/50(3 phases)
220/60(3 phases)

380/50(3 phases)
220/60(3 phases)

Power(kw)

6.5

9.6

12.8

Loading(kg)

10

30

Speed(m/min)

0~10

Stove Size(LWH)(mm)

900450(50~250)

1200450(50~350)

1200650(50~350)

Dimension(LWH)(mm)

12006501240

12006501340

12008501340

Net Weight(kg)

90

120

150



Shrink Packaging Machine-TBS Series



TBS5530L                                                TBS5540M


Product Description

Its adopts hot-wind & upper-cyclone structure, it/s suitable for packing unitary case which consist single big and other small goods. Intelligence temperature control and strong turbine motor. Conveyor is alternative with roller or stainless steel mesh.
Its suitable for PVC, POF, PP shrink film. Especially for PE.

Specifications

TBS5530L

TBS5540L

TBS5530M

TBS5540M

Voltage(V/Hz)

380/50  220/60(3 phases)

380/50  220/60(3 phases)

Power(kw)

24

27

18

21

Load(kg)

80

40

Conveying Speed(m/min)

0~10

0~8

Tunnel Size(LWH)(mm)

1950550300

1950550400

1450550300

1450550400

Dimension(LWH)(mm)

31008501400

31008501500

25508501400

25508501500

Net Weight(kg)

350

400

260

300

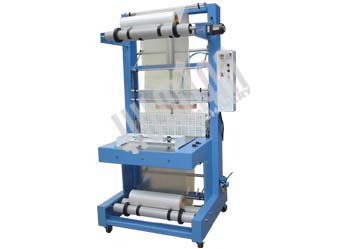

Semi-Automatic Sleeve Sealing Machine-TTF6540SA



TTF6540SA                                      TTF6540SA+BS5540M


Product Description

This object should be feed by manual, it can pack unitary counted case (box or can) also many goods. Its suitable for batch shrink production of printing, pharmacy and floor, chinaware, beverage, bear etc. Its suitable for all types of shrink film PVC, POF, PP, PE.

Specifications

TTF6540SA

Voltage(V/Hz)

AC 220/50  110/50

Power(kw)

1.5

Max. Packing Dimension(mm)

550400380

Max. Sealing Length(mm)

650

Working Air pressure(kgf/cm2)

5~7

Dimension(LWH)(mm)

92510401920

Net Weight(kg)

300



Automatic Sleeve Sealing Machine-TTF6540



TTF6540                                     TTF6540+BS5540L


Product Description

It is a fully automatic production line integrated with automatic convey , feeding, sealing, cutting, and shrinking, especially suitable for large, unitary counted case (box or can) bottom tray packaging such as can, bottle etc When encased with PE or PVC shrink film, and complete its shrink packaging. Conveyor is alternative with roller or mesh. Also we can design requirement of the customer. After finished the packaging, the products appeared neatness, compact and good for long transport.

Specifications

TTF6540

Voltage(V/Hz)

AC 220/50 110/50

Power(kw)

1.5

Max. Packing Dimension(mm)

530330380

Packing Speed(Tray/min)

12

Max. Sealing Length(mm)

650

Working Air Pressure (kgf/cm2)

6~8

Dimension (LWH)(mm)

155014001920

Net Weigh(kg)

400



Automatic Sleeve Sealing Machine-TTF6540A



TTF6540A                                       TTF6540A+BS5540L


Product Description

It adopts PLC control with touch screen. Its suitable for automatic collecting shrink packing object such as can or bottle. It is a fully automatic production line integrated with automatic convey, feeding, arrange, sealing, cutting and shrinking. After finished the packaging, the products appeared neatness, compact and good for long transport. Its suitable for all types of shrink film such as PVC, PE shrink film.

Specifications

TTF6540A

Voltage(V/Hz)

AC 220/50  110/50

Power(kw)

1.5

Max. Packing Quantity(pcs)

46

Packing Speed(packages/min)

8

Max. Sealing Length(mm)

650

Working Air Pressure (kgf/cm2)

6~8

Dimension (LWH)(mm)

245017501950

Net Weigh(kg)

350
