Sealer

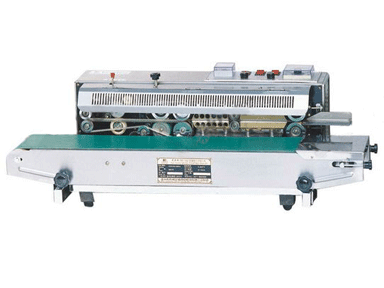

FRD-1000 Ink printing sealer


Product Description

This series of sealing machine adopts electronic thermostat control and steeples speed transmission system. It can automatically finish sealing continuously. And the sealing can be finished at one time. The mark and printing is clear, color optional and wearable. It also have the advantage of quick printing, quick dry and character can be easily changed. It can be set at horizontal and ground stand. This machine is used on the single-layer film and all kinds of composite film in sealing and bag making. This series of sealing machine are abroad applied in food, pharmacy, seed packaging, chemical and light industry etc.

Model

FRM1000

Voltage (V/Hz)

AC 220/50

Power (W)

620

Sealing Speed (m/min)

0-12

Sealing Width (mm)

6-15

Temperature Range()

0-300

Film Thickness mm

0.02-0.80

Word Number

20Pcs

Conveyor Loading (kg)

5

Dimension (LWH) (mm)

950480430

Net Weight (kg)

28




FRM980 INKER SEALING MACHINE


Product Description

This series of sealing machine adopts electronic thermostat control and steeples speed transmission system. It can automatically finish sealing continuously. And the sealing can be finished at one time. The mark and printing is clear, color optional and wearable. It also have the advantage of quick printing, quick dry and character can be easily changed. It can be set at horizontal and ground stand. This machine is used on the single-layer film and all kinds of composite film in sealing and bag making. This series of sealing machine are abroad applied in food, pharmacy, seed packaging, chemical and light industry etc

Model

FRM980

Voltage (V/Hz)

AC 220/50

Power (W)

620

Sealing Speed (m/min)

0-16

Sealing Width (mm)

6-13

Temperature Range()

0-300

Film Thickness mm

0.02-0.80

Word Number

20Pcs

Conveyor Loading (kg)

5

Dimension (LWH) (mm)

920390290

Net Weight (kg)

30




MANUAL AND PEDAL SEALING MACHINE


Product Description

QF Series is a new developed aerodynamic vertical instantaneous-thermal large package sealing machine which suits for different industry needs. The sealing is firm and neat.

Features: Duel tanks work together to drive engine, sealing and cooling time are controlled by time relay, precise and  adjustable. This machine is suitable for large package sealing in chemical, food, pharmaceutical, cosmetic, and other industries.

Model

QF-600L

Voltage (V/Hz)

AC 220/50

Power (W)

250

Air Compressor

no fitted, should buy separately

Bag Height (mm)

450-750

loading Of Conveyor (kg)

50

Angle Adjustable Range

20

Dimension (L W H) (mm)

7205601340

Net Weight (kg)

80

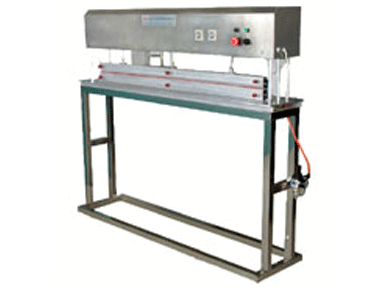

FMQW-1200/2  Aerodynamic Sealing Machine


Product Description

This machine is aerodynamic horizontal machine. It is suitable for big package and super length plastic bag sealing. Easy to operate. The cooling time can be adjusted. It adopts both sides heating and the pressing is flat and neat. The sealing length can be customized to 2500mm.

Model

FMQW-1200/2

Voltage (V/Hz)

AC 220/50

Power (W)

1500-4500

Air pressure

No fitted, should buy separately

Sealing Width (mm)

10

Sealing Length (mm)

1200mm special size2500mm

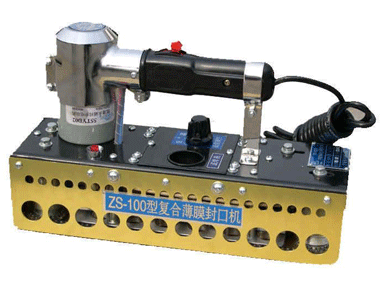

ZS-100 Continuous Portable chain fixed complex film sealing machine




Product Description

Based on Japan HS-100, this machine is adopted the advanced technology and made by excellent quality material. It is applicable to high temperature sealed composite films and bags, with the inner layer of polyethylene. The composite film can be made a two-layers, three-layers, four and five layers. All the closure can be carried out straight and even, whatever it is big or small, long or short packages. High efficiency and good sealing quality. The structure of the machine is reasonable and the machine is easy operated.

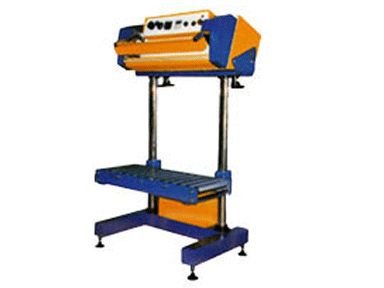

QLF-1680 Vertical sealing machine for big bags


Product Description

Vertical sealing machine for big bags, is suit for sealing the big bags which can be hot sealed. With steeples speed regulation, constant temperature control, adjustable temperature and the head unit of machine , large transmitting power of delivery platform. this machine Is used widely in chemical, grains, food, fodder and other industries

Model

QLF-1680

Voltage (V/Hz)

AC 220/50 110/60

Speed (m/min)

0-13

Sealing Width (mm)

15

Temperature Range( )

0-300

Goods height

50-800mm adjustable

Load Max (kg)

15

Amount

99999

Sealing Length

unlimited

Power (w)

1000

Dimension (L W H) (mm)

17007501600

Net Weight (kg)

130
