Digital Load Cell

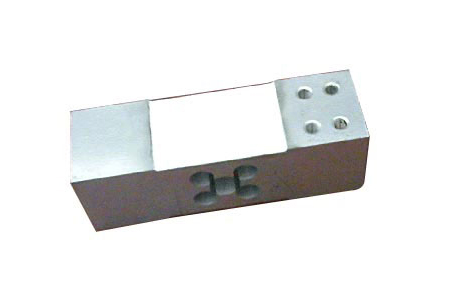

     Load cell for Desk Scale

Features:

Load cell for Desk Scale (22 x 30 x 130 mm，22 x 23.4 x 100 mm，23.5 x 30x 110 mm): 5 kg load cell for 3kg scale 8 kg load cell for 6kg scale 20 kg load cell for 15 kg scale 40 kg load cell for 30 kg scale

General performance:

Nominal Output: 1.8 - 2.0 mv/v Non - Linearity: 0.02% FS Non - Repeatability: 0.02%FS Creep (30 min): 0.02% FS Zero Balance: 0.02% FS Output Temperature Balance: 0.02% FS Zero Output: +_ 0.2mV Input Resistance: 404 +_ 3 Ohms Output Resistance: 350 +_ 3 Ohms Insulation Resistance: >= 5,000,000,000 Ohms Excitation Voltage: 25V (DC/AC) Permit Voltage: (5 - 20 VDC/AC)

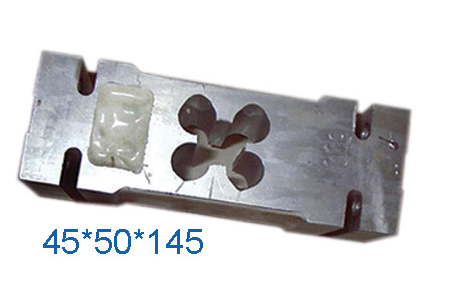

Load cell for Platform scale

Features:

Load cell for Platform Scale (45 x 50 x 140 mm，65x60x175mm，65x60x200mm, 79x79x175mm): 100 kg load cell for 60 kg scale 250 kg load cell for 150 kg scale 500 kg load cell for 300 kg scale 1000 kg load cell for 600 kg scale

General performance:

Nominal Output: 1.8 - 2.0 mv/v Non - Linearity: 0.02% FS Non - Repeatability: 0.02%FS Creep (30 min): 0.02% FS Zero Balance: 0.02% FS Output Temperature Balance: 0.02% FS Zero Output: +_ 0.2mV Input Resistance: 404 +_ 3 Ohms Output Resistance: 350 +_ 3 Ohms Insulation Resistance: >= 5,000,000,000 Ohms Excitation Voltage: 25V (DC/AC) Permit Voltage: (5 - 20 VDC/AC)

Load cell for balance



Features:

Load cell for balance ( 10 x 33 x 110mm): 150g,300g,600g,1500g,3000g,S=0.910 ± %mv
