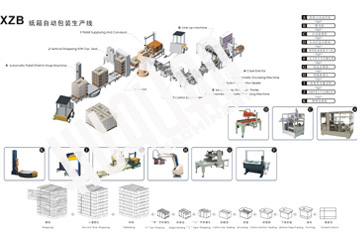

Carton Automatic Packing Line


Carton Automatic Packing Line


Product Description

CARTON AUTOMATIC PACKING LINE (from carton-erecting to truck project) is new generated automatic packing line, which is characterized by high speed, high-quality packing, good compatibility and stable performance etc. It is a high-tech product manufactured by integrating mechanism, electrical devices, instrument and robot, which automates the whole carton rear packing process for every kinds of packing objects, including empty carton-delivering, carton forming, objects-aligning and conveying, robot encasing, auto flap carton sealing, edge sealing, code printing, carton strapping, right-angled turn, type strapping, conveying, robot palletizer, empty pallet delivering, carrying-pallet conveying, vetical strapping, horizontal strapping, wrapping, outputing, etc.

Customized order is available.

Usage: It is suitable for carton rear packing of objects in varied sizes.

The packing line including the following equipments according to customers' request:

Case Erector
Line-Up Machine
Automatic Encasing Machine
Auto Flap Carton Sealer
Ink Jet Printer or Carton Printer
Unmanned Automatic Strapping Machine
Carton Edge Sealer
Robot
Pallet Supplying and Conveyor

Vertical Pallet Strapping Machine with Top Seal

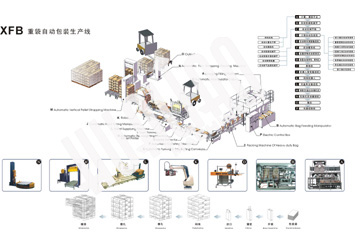

Sack Automatic Packing Line

Sack Automatic Packing Line


Product Description

SACK AUTOMATIC PACKING LINE (from sack feeding to truck project) is new generated automatic packing line, which is characterized by high speed, high-quality packing, good compatibility and stable performance etc. It is a high-tech product manufactured by integrating mechanism, electrical devices, instrument and robot, It automates the packing process of objects in powder or grain shape, including weighing, sack feeding, sack picking, filling, opening nip, edge folding, sack sealing, code printing, sack inversing and shaping, metal detect, weight rechecking, trimming, conveying, robot palletizing, empty pallet delivering, carrying pallet conveying, strapping, vertical strapping, wrapping, outputting etc.

Customized order is available.

Usage: It is suitable for sacks. (Capable of achieving thirteen types continuous sealing for seven kinds of sacks by adopting five kinds of sealing. Weight:25~50Kg)

The packing line including the following equipments according to customer request:
Automatic Bag Feeding Manipulator
Automatic Manipulator Cabin
One-Line Sealing and Stitching Automatic Packaging Machine
Automatic Turning & Bag Falling Conveyor
Automatic Collating Machine
Metal Detector
Automatic Re-Weighting Machine, Ink Jet Printer
Flush Trimmer
Automatic Pack Taking Manipulator
Robot
Pallet Supplying Machine
Vertical Pallet Strapping Machine with Top Seal
Automatic Pre-Stretch Pallet Stretch Wrap Machine
Electric Control Box




Automatic Carton Sealing Strapping Packing Line

Automatic Carton Sealing Strapping Packing Line


Product Description

The system consists of automatic carton sealer, automatic strapping machine and conveying frame, which has the function of continuous automatic carton sealing and multi-belt strapping, and it not only takes up less room but also reduces the packing cost as well. It adopts the logo of SIEMENS company in Germany with automatic control and reliable working, convenient operation and simple maintenance while, the carton sealer and strapping machine can be used separately.

It is widely used in packing of foodstuff, beverages, medical, cosmetic and other products etc.

Configuration:

FXJ -5050L carton sealer                            1 set
KZG-8060 Automatic strapping machine     1 set
SJG-100/66 no-drive roller conveyor           1 set

Specifications

TFXJ-5050L

TKZG-8060

Voltage (V/Hz)

AC 220/50 110/60

AC 220/50 110/60

Power (W)

240

850

Max. Carton Size (WHL)(mm)

500500600

800600

Min. Carton Size (WHL)(mm)

120180300

8050

Speed (m/min)

16

2.15

Height of Table (mm)

830

830

Width of Adhesive Tape (mm)

48 60

Width 9~15 Thickness 0.5~1

Dimension (LWH)(mm)

13008801520

14206501565

Net Weight (kg)

150

235



Automatic Carton Sealing Strapping Packing Line

Model: TXFK-2

 TXFK-2



Product Description

Its suitable for no frequent change of carton size, especially suitable for continuous sealing and strapping for same size cartons, which has the function of automatic flap with multi-lines strap packing. It can adjust the machine to fit different cartons manually.

Automatic finish all the processes of flap folding, carton seal, convey and two lines strapping automatically. Adopt man-machine interface, fine PLC and LOGO control, fully digital operate, with the feather of easy parameter adjustment and steady operation. With automatic stop, awaken and other multi-protecting function.

Main configure as below:

FXJ-5050Z Auto Flap Carton Sealer                                   1set
KZW-8060 High-table Automatic Strapping Machine         1set
SJGY-80/66 Round Belt Drive Roller Conveyor                   1set (0.8m)
SJG-100/66 No-drive Roller Conveyor                                2 sets (21m)

Specifications

TXFK-2

Voltage (V/Hz)

AC 220/50 110/60

Gross Power (W)

1700

Max. Carton Size (LWH)(mm)

600500500

Min. Carton Size (LWH)(mm)

180130130

Speed(m/min)

16

Productive Capacity (cartons/h)

600

Height of Table (mm)

830

Adhesive Tape (mm)

BOPP, PVC Adhesive tape ,width 60/ 76mm

Available Strapping Belt (mm)

Plastic strapping belt width 9-15 thickness 0.5-1.1

Dimension (LWH)(mm)

665014201565

Air compressor

2/3 Litters at 5 bars



Automatic Carton Sealing Strapping Packing Line

Model: TXFK-3

TXFK-3

Product Description

It is suitable for no frequent change of carton size, and can automatic finish all the processes of upside, downside sealing and # type strapping, which has the function of continuous bottom sealing, automatic flap folding and carton sealing and # type or multi-lines strapping. It can adjust the machine to fit different cartons manually.
The carton will be automatic flap folding and bottom sealing ;automatic flap folding and carton sealing, automatic conveying turning 90 ,automatic finish # type or multi-lines strapping.
Adopt man-machine interface, fine PLC control, fully digital manipulate, so as to make the parameter easy changing and steady operation. With automatic stop, awaken and other multi-protecting function.
With flexible collocate and fit for customers requirement

Configuration:

DZF-5050D Auto Flap Carton Bottom Sealer                                       1set
SJG-100/66 No-drive Roller Conveyor                                                 2sets (21m)
FXJ-5050Z Auto Flap Carton Sealer                                                    1set
SJGY-80/66 Round Belt Drive Roller Conveyor                                     2sets (0.8m)
KZW-8060 High-Table Automatic Strapping Machine                           2set
SJZGY-140/66 Vertical Turning Round Belt Drive Roller Conveyor        1set (2m)
Electric Control Box                                                                              1set

Specifications

TXFK-3

Voltage (V/Hz)

AC 220/50 110/60

Gross Power (W)

4100

Max. Carton Size (LWH) (mm)

500400450

Min. Carton Size (LWH) (mm)

220160130

Speed (m/min)

16

Productive Capacity (pcs/h)

600

Height of Table (mm)

830

Adhesive Tape (mm)

BOPP, PVC Adhesive tape ,width 60/76mm

Available Strapping Belt (mm)

Plastic strapping belt width 9-15 thickness 0.5-1.1

Dimension (LWH)(mm)

L Type 785035001700

Air Compressor

1 Liters at 5 bars



Automatic Carton Sealing Strapping Packing Line

Model: TXFK-4

TXFK-4

Main configure as below:

FXJ-5050Z Auto Flap Carton Sealer           1set
JFX-5060 Carton Edge Sealer                    1set
SJG-100/66 1 Meter No-Drive Roller Bed    2sets
SJZGY-140/66 Vertical Turning Round Belt Drive Roller Conveyor                                                   1set
Electronic Control Box                                1set



Automatic Carton Sealing Packing Line

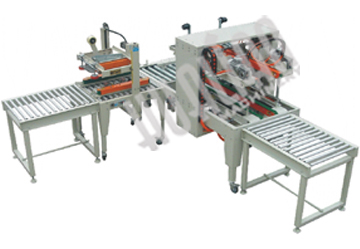

Model: TXFK-5

TXFK-5

Configuration:

FXJ-5050A Semi-Auto Carton Sealer                    1set
JFX-5060 Carton Edge Sealer                              1set
SJZGY-140/66 Vertical Turning Round Belt Drive Roller Conveyor                                                             1set
SJG-100/66 1 Meter No-Drive Roller Conveyor     2sets
Electronic Control Box                                          1set



Automatic Carton Sealing Packing Line

Model: TXFK-6

TXFK-6


Configuration:

DZF-5050 Auto Flap Carton Sealer                     1set
FXJ-5050Z Auto Flap Carton Sealer                    1set
JFX-5060 Carton Edge Sealer                             1set

SJZGY-140/66 Vertical Turning Round Belt Drive Roller
Conveyor                                                            1set
SJZGY-80/66 Round Belt Drive Roller Conveyor   2sets
Electronic Control Box                                         1set



Automatic Carton Sealing Strapping Packing Line

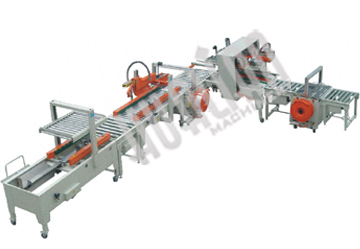

Model: TXFK-7

TXFK-7


Configuration:

DZF-5050 Auto Flap Carton Bottom Sealer                 1set
FXJ-5050Z Auto Flap Carton Sealer                            1set
KZW-8060 High-Table Automatic Strapping Machine  2sets
JFX-5060 Carton Edge Sealer                                     1set
SJZGY-140/66 Vertical Turning Round Belt Drive Roller Conveyor                                                                    1set
SJZGY-80/66 Round Belt Drive Roller Conveyor          2sets
Electronic Control Box                                                1set
