Crushing machinery and equipment

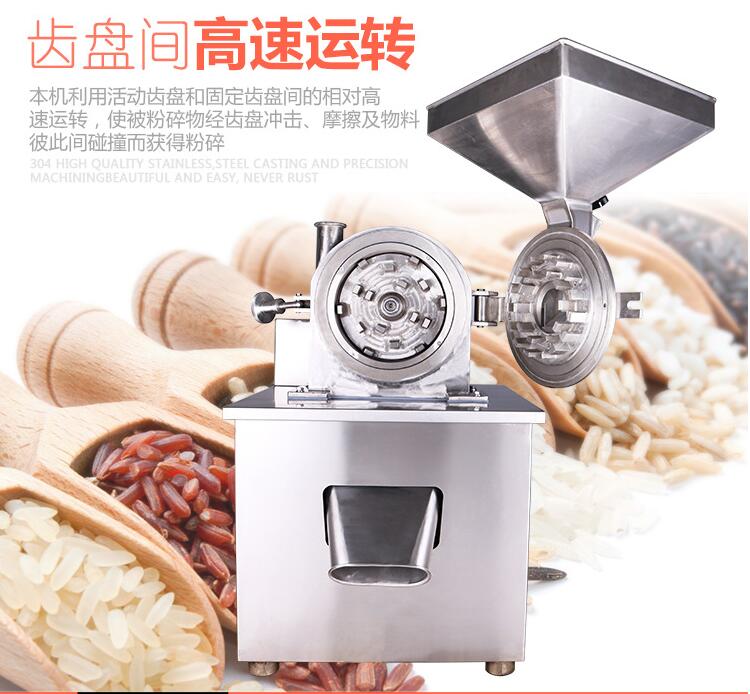

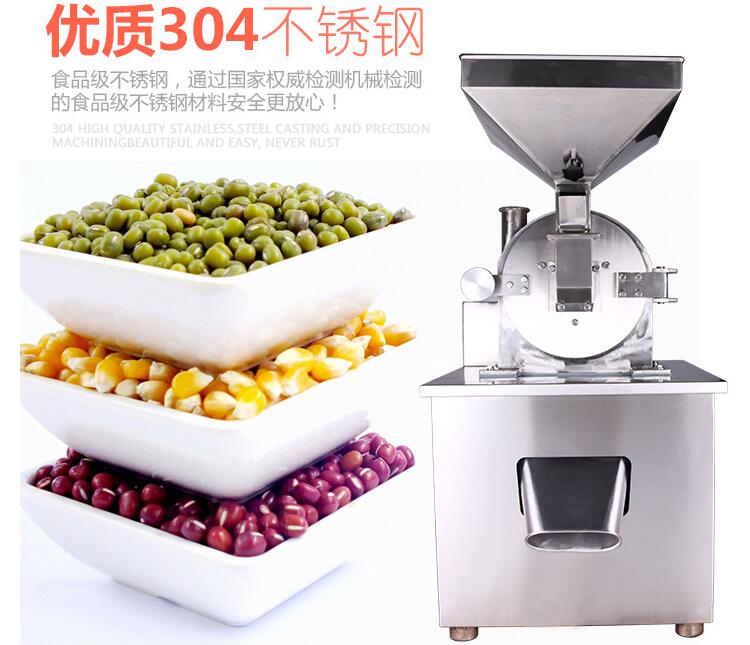

Universal pulverizer

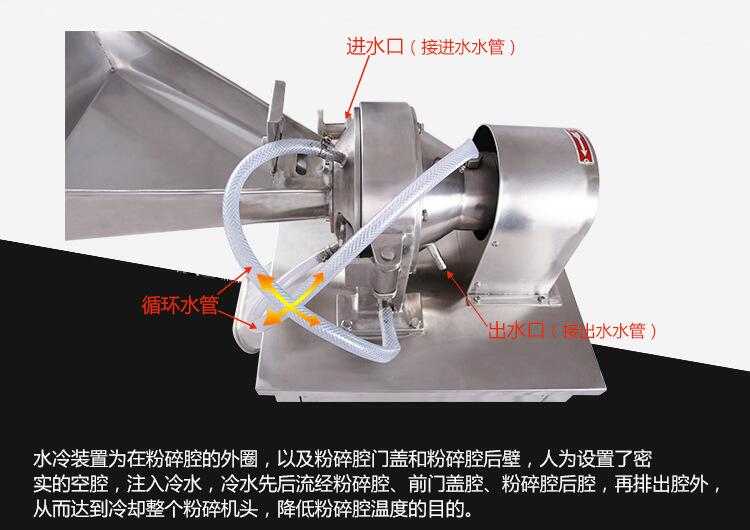

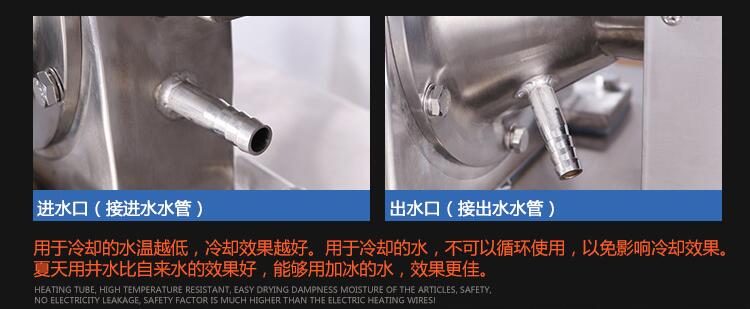

Water cooling universal
crusher food & chemical industry in the grass spices raw
material powder machine
|
The main technical parameters:
| Model |
YWYN-200+ |
YWYN-300+ |
YWYN-400+ |
YWYN-500+ |
| Production capacity(kg/h) |
30-120 |
60-200 |
80-300 |
100-500 |
| Working noise (decibel) |
£¼85 |
£¼85 |
£¼85 |
£¼85 |
| Fineness of finished
product£¨mesh£© |
10-200 |
10-200 |
10-200 |
10-200 |
| Voltage£¨V£© |
220/380 |
380 |
380 |
380 |
| Power£¨KW£© |
2.20 |
5.50 |
7.50 |
11.00 |
| Spindle speed£¨r/min£© |
4200 |
4200 |
4200 |
4200 |

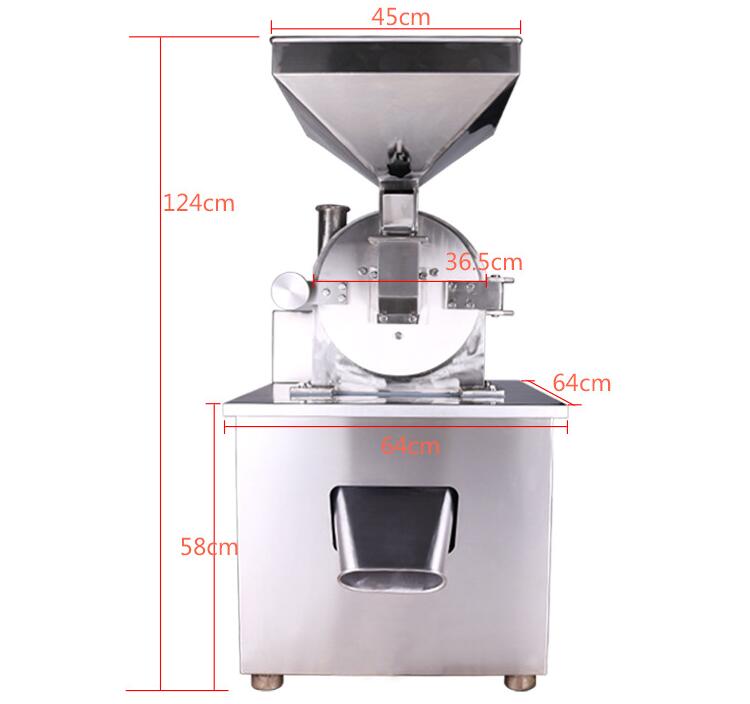

| Outline dimension(CM) |
70X52X85 |
90X60X100 |
95X70X100 |
95X90X120 |
| Weight(KG) |
80 |
180 |
260 |
320 |
|

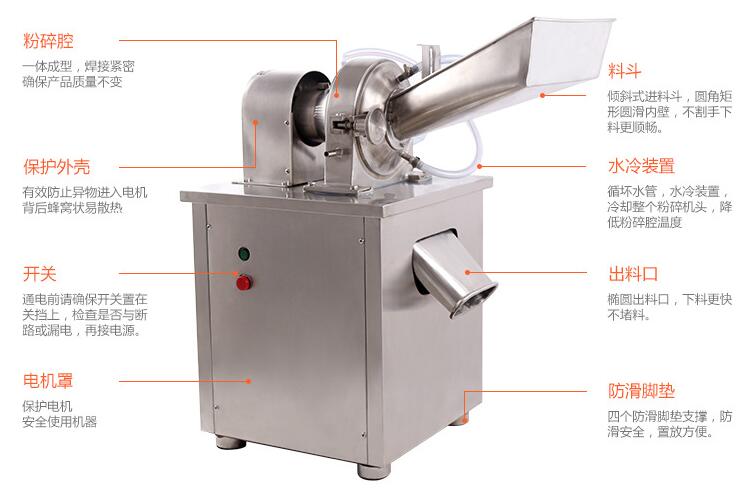

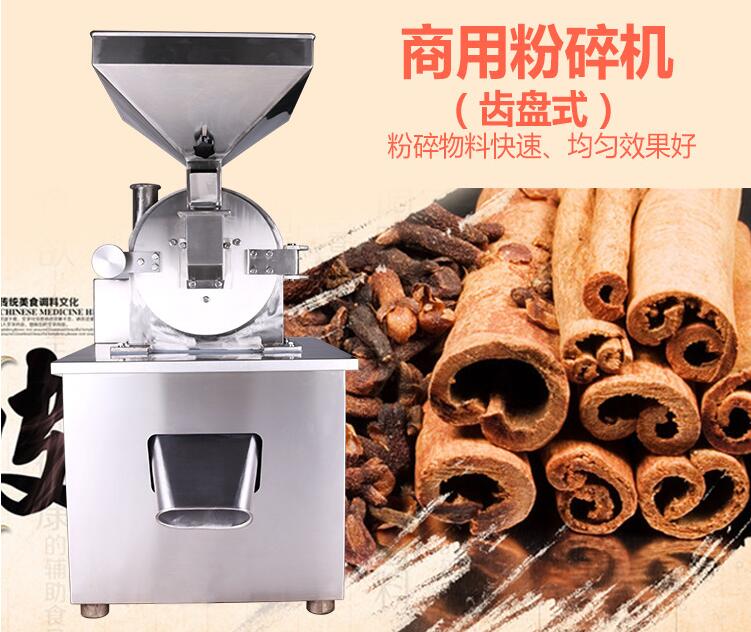

Multi-function electric tooth disc
universal mill ultrafine grinding machine for commercial use

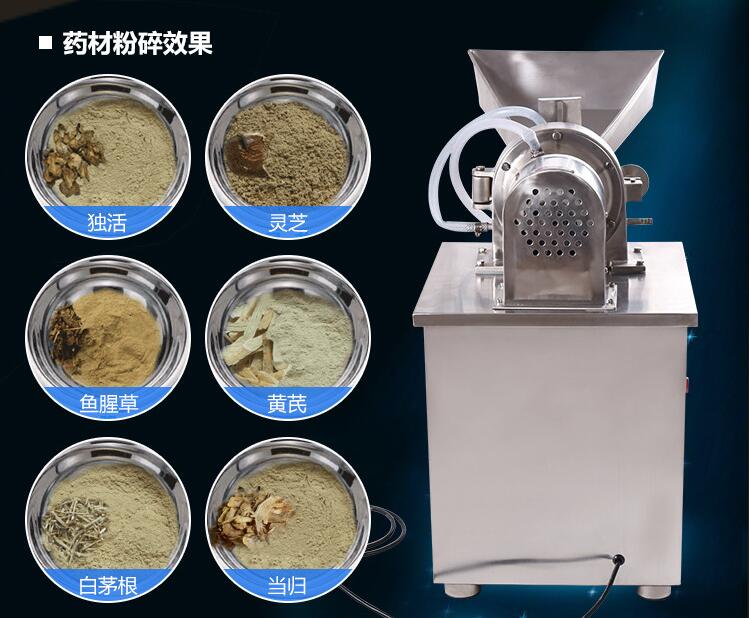

Universal crusher is suitable for material crushing in
pharmaceutical, chemical and food industries.
Technical parameters
|
Model |
Production capacity
(Kg/h) |
Working noise (decibel) |
Fineness of finished
product£¨mesh£© |
Voltage£¨V£© |
Power£¨KW£© |
Spindle speed£¨r/min£© |
Outline dimension(MM) |
Weight
(kg) |
|
YWYN-200 |
30-120 |
<85 |
10-120 |
220/380 |
2.2 |
4200 |
480*520*1040 |
80 |
|
YWYN-300 |
60-200 |
<85 |
10-120 |
380 |
5.5 |
4200 |
750*600*1260 |
180 |
|
YWYN-400 |
80-300 |
<85 |
10-120 |
380 |
7.5 |
4200 |
780*700*1350 |
260 |
|
YWYN-500 |
100-500 |
<85 |
10-120 |
380 |
11 |
4200 |
800*900*1550 |
320 |
|
YWYN-600 |
500-1000 |
<85 |
10-120 |
380 |
18.5/22 |
4200 |
1200*1000*2000 |
520 |
|

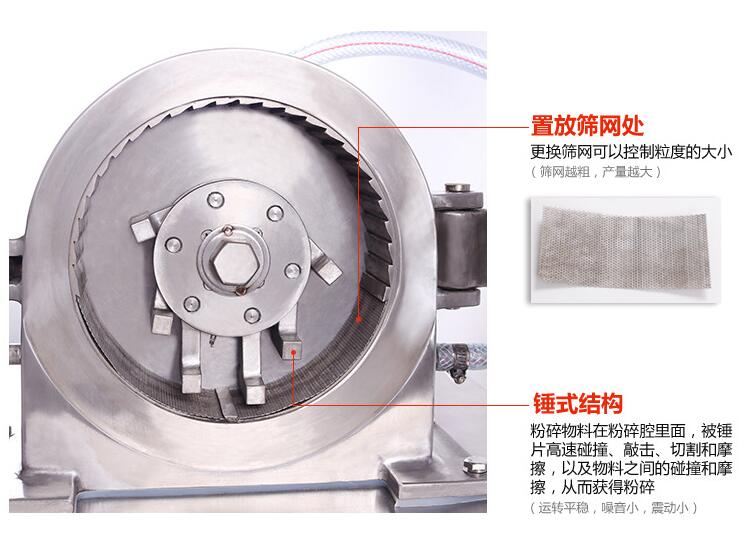

Roduction
capacity: the nature of the material is different, the
requirements of the different fineness, changes of

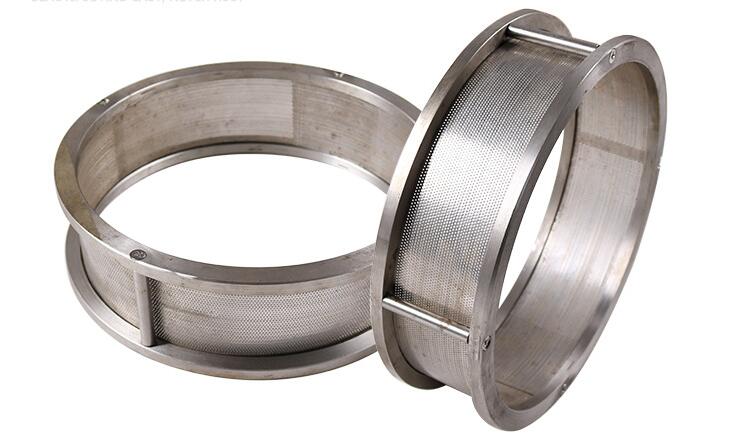

output; Screen mesh fineness can be replaced. |
¡¡
¡¡
|
