Automatic case maker

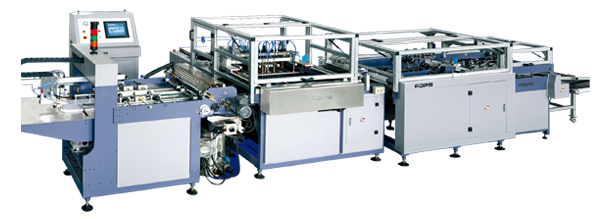

 Automatic case maker (with cover)



Use:



It adopts automatic feeding system for paper, automatic positioning device for cardbord, there are features of accurate, quick positioning, and beautiful finished products. It is used to make perfect book covers, cover of notebook, calendars, hanging calends, file etc.









MAIN TECHNICAL PARAMETER

Model

YAFM540/540A

YAFM450/450A

YAFM450AL/450L

YAFM540AL/540L

Paper Size

MIN:130×230mm
MAX:570×830mm

MIN:130×230mm
MAX:480×830mm

MIN:130×230mm
MAX:480×1030mm

MIN:130×230mm
MAX:570×1030mm

Paper Tickness
Cardboard Tickness

100~200/m2
1~3mm

100~200/m2
1~3mm

100~200/m2
1~3mm

100~200/m2
1~3mm

Finished Product Size

MAX:540×800mm
MIN:200×200mm

MAX:450×800mm
MIN:100×200mm

MAX:450×1000mm
MIN:100×200mm

MAX:540×1000mm
MIN:200×200mm

Spine
Folded Paper Size
Max Quantity of Cardbord

10mm
10~18mm
6 pieces

10mm
10~18mm
6 pieces

10mm
10~18mm
6 pieces

10mm
10~18mm
6 pieces

Precision
Production Speed
Motor Power
Heater Power

±0.50mm
≤25sheets/min
5kw/380v  3phase
6kw

±0.50mm
≤25sheets/min
5kw/380v  3phase
6kw

±0.50mm
≤22sheets/min
5kw/380v  3phase
6kw

±0.50mm
≤22sheets/min
5kw/380v  3phase
6kw

Machine Weight
Machine Dimension

3300kg/3500kg
L8200×W2300mm

3000kg/3200kg
L8200×W2200mm

3600kg/3300kg
L9000×W2200mm

3900kg/3500kg
L9000×W2300mm



Remark:

1.The max and min sizes of the covers and subjected to those of the paper and the quality of the paper.

2.The production capacity is 25 cover per minute. But the speed of the machine depends on the sizes of the covers.
