This model is a new type heat-sealing, multifunction, automatic packing machine. This machine enlarges the capacity of tea bag and remains the automatic boxing device. It changes the sealing way of envelope making, improves the flexibility of envelope packing material. It ensure the realization of using multiple heat-seal laminated films in the envelope pack such as paper/aluminum/polyethylrne, etc. It provides you exquisite envelope pack which were airtight and fresh keeping.

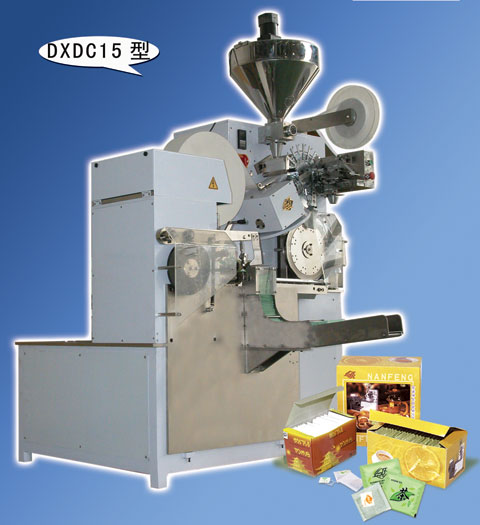

Tea bag packing machine Model DXDC15is our newest model, and features filling, heat sealing, threading, labeling and over-wrapping functions. Meanwhile, it also has an adjustable loading system for filling different sized tea bags. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine's flexibility and enables use of different packaging materials. Main materials include paper/PE, plastic/foil/PE and plastic/PE.
The specification of the machine is:
1) Output: 105±5bags/minute
2) Tea volume: 0—4 gram red tea
3)Max. dosage: 15cm³
4) Bag dimensions: 65 x 62.5mm
5) Envelope dimensions: 82 x 75mm
6) Tag dimensions: 28 x 24mm
7) Thread length: 210mm
8) Power supply: AC 380V / 220V
9) Total power: 2.36kW
10) Weight: 1210kg
11)Gross weight:1410kg
12) Overall dimensions: 1.688 x 1.33 x 2.205m
Packing:1pc/carton
Carton dimensions: 1.84 x 1.29 x 1.89m
