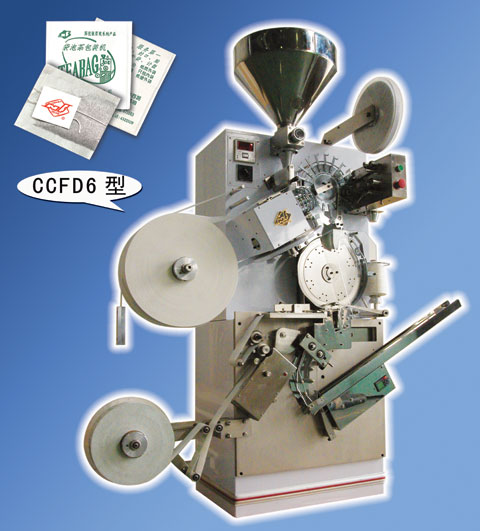

Tea Bag Machine

Name£º Model CCFD6
Introduce£º

The envelope is sealed and packed with paper.
This model can supply a paper envelope to teabag. The envelope is cold-sealed in both vertical sides. The boxing system is replaced by envelope forming system. It adds an automatic counting unit. Operator can put pre¡ªnumber of teabag into one box. The specification of the machine is:

Tea bag packing machine Model CCFD6 features such functions as automatic ration filling, heat-sealing of tea bags, automatic plastering of cotton thread
and tags, and cold-sealing of the envelope in the longitudinal direction.
Technical data:
1) Output: 110bags/minute (max.)
2) Max. dosage: 8cm3
3) Bag dimensions: 62.5 x 50mm
4) Envelope dimensions: 70 x 65mm
5) Tag dimensions: 28 x 24mm
6) Thread length: 210mm
7) Power supply: AC 380V, 0.75kV
8) Weight: 565kg

9)Gross weight: 730kg
10) Overall dimensions: 1.7 x 0.9 x 2m
Packing:
1pc/carton
Carton dimensions: 1.236 x 1 x 1.855m

Packing List of Spare Parts and Tools of Tea-Bag Packing Machine CCFD6

 No.

Name

 Part Code

Unit

Quantity

1

  Tools



Set

1

2

  Standard part



Package

1

Other material

3

Bag paper

3 Kg

Spool

1

4

Envelope paper



Spool

1

5

Tag paper



Spool

1

6

Thread



Spool

1

7

Adhesive



Bottle

1

Spare parts

8

Sluice gate

280001

Piece

2

9

Thread displayer fork

281051-1

Piece

14

10

Thread pin

281051-2

Piece

14

11

Threaded

281082-2

Piece

5

12

paper brake band (plastic)

281340-3

Piece

1

13

Dosage duct

282030-2

Piece

1

14

 Moving blade of the   Tag shear

283040-1

Piece

7

15

 Fixed blade of the   Tag shear

283041

Piece

7

16

Spring

283080-2

Piece

2

17

Pressing wheel

283091

Piece

9

18

Spring sheet

283100-2

Piece

3

19

Porcelain grommet(at micro switch)

283100-4

piece

3

20

Spring  sheet

283110-3

piece

2

21

Thread sensor micro switch

283140

piece

1

22

Tag shear link rod

283150-2

piece

3

23

Spring sheet

284010-3

piece

2

24

Shear link rod

285000-4

piece

3

25

Spring sheet

285060-7

piece

2

26

  Fixed blade of the    Envelope shear

285060-11

piece

6

27

 Moving blade of the  Envelope   shear

285062

piece

6

28

Front spring sheet

285070-7

piece

6

29

Back spring sheet

285090-3

piece

6

30

Fixing plate

285120-4

piece

4

31

Cogged sealing wheel

285120-6

piece

12

32

Fixing plate

285120-7

piece

4

33

Claw tip

285160-6

piece

1

34

Spring sheet

287000-5

piece

2

35

Spring

287000-6

piece

3

36

Brake sheet (Kraft)

288023-3

piece

3

37

Saucer spring

289000-2

piece

52



Heater

289000-7



2

38

Spring

289040-8

piece

3

39

  Axes

289040-9

piece

3

40

 Moving blade of the Bag shear

289040-10

piece

13

41

 Fixed blade of theBag shear

289040-11

piece

6

42

Spring

289080-5

piece

4

43

Traction wheel

1263020-1

piece

1

44

80018 8¡Á22¡Á7 bearing

GB278-82

piece

4

45

O£­airproofcircle28¡Á3.5balataI-2 O¡¯ring

GB1235-76

piece

6

46

O £­airproof circle 50¡Á5.7balataI-2 O¡¯ring

GB1235-76

piece

4

47

TrianglegluebeltA1500   belt

GB1171-74

piece

1

48

Bulb24V 0.12A lamp



piece

10

49

Maize¡¡model  module

with program

piece

¡¡

Packer£º                  Inspector£º                        Date£º
