跑车带锯
auto-feeding carriage band saw
|
|
Name |
auto-feeding carriage band saw |
|
Type |
YMJ3212 |
|
Power |
38.5kw |
| Overall dimensions
|
(L)1720*(W)1700*(H)3500mm
|
|
Net weight |
2800kg |
| saw wheel
diam |
1250mm
|
|
Max.height |
1000mm |
| Max.width |
140mm |
|

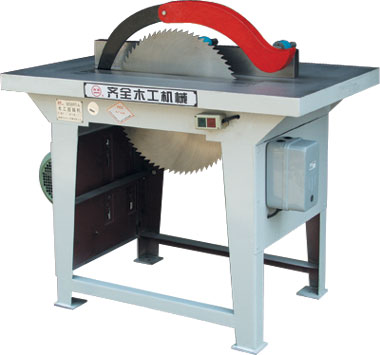

圆锯机
Circular Saw
|
| Type |
YMJ105A |
| Size of Working Table |
1000×630 |
| Saw Diameter |
500mm |
| Max.Sawing Thickness |
140mm |
| Spindle Speed |
2240 r/min |
| Motor Power |
4KW |
| Overall Dimensions |
1150×600×980mm |
| Net Weight |
130kg |
| The machines are safe and reliable,with high
sawing precision,and are widely used in wood
productions and architecture etc. |
|
|

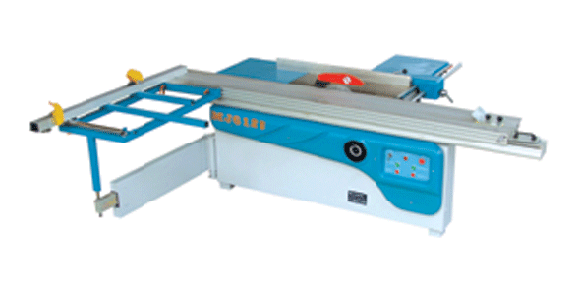

推台锯
Push
tower
saw machine |
| Type |
YMJ6128 |
| Max.production length |
2800mm |
| Max.production width |
900mm |
| Main saw diameter |
250-350mm |
| Saw diameter of drawing
line |
120mm |
| Spindle speed |
4500-6000YPm |
| Saw apeed of drawing line |
4KW+0.75KW |
| Overall dimensions(L*W*H) |
2250*2800*900mm |
| Net weight |
850kg |
|
|

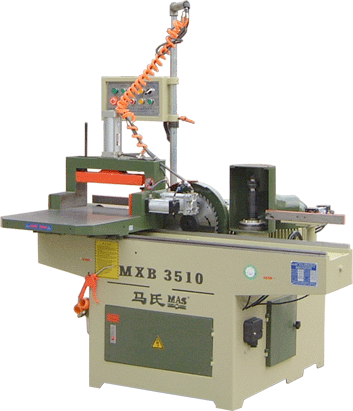

梳齿机
Comb Tooth machine |
| Type |
YMx3510
|
| 最大梳齿高度 |
100mm |
| 工作台尺寸 |
650X500mm |
| 主轴直径 |
35mm |
| 主轴转速 |
5500r/min |
| 安装功率 |
9.7Kw |
| 外形尺寸 |
1500x1330x172mm |
| 净重 |
720Kg |
|
|
对接机
finger assembler
|
| TYPE |
YMX1525 |
| Max.assembly length |
3100mm |
| Max.assembly width |
150mm |
| Max.assembly thickness |
70mm |
| Max.jointing force |
7800kg |
| Working air pressure |
0.8Mpa |
| Overall Dimensions(L ×W ×H) |
4350 ×1800 ×1650mm |
| Net Weight |
1400kg |
|
|
木械平口/斜口平刨
planer
machine |
| TYPE |
YMB503 |
YMB504 |
| 最大加工厚度 |
300mm |
400mm |
| 最大刨削量 |
4mm |
4mm |
| 主轴转数 |
7000r/min |
7000r/min |
| 工作台尺寸 |
1850X300mm |
2000X400mm |
| 安装功率 |
2.2kw |
3kw |
| 外形尺寸 |
1920X750X1200
|
2100X900 |
|
|
