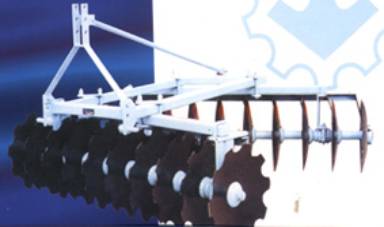

The 1BJX series mounted disc harrows are suitable for cleaning away stubble of plants before ploughing , or crushing soil after ploughing on dry cultivated land and leveling land before seeding, it can be used instead of plough on light soil land . The front gang is assembled with scalloped disc, the rear with plain disc.

Item

Unit

1BJX-2.0

1BJX-2.2

1BJX-2.4

Working width

m

2.0

2.2

2.4

Max. Working depth

cm

16

16

16

Angle of approach

deg

11  14  17  20 23

11  14  17  20  23

11  14  17  20  23

Dia. of disc

mm

560

560

560

Blade spacing

230

230

230

No. of discs

18

20

22

Productivity

ha/hr

1.2

1.4

1.8

Overall dimension(L×W×H)

mm

2420×2000×1320

2600×2260×1320

2690×2470×1247

Weight

kg

441

470

610

Linkage

Mounted

Mounted

Mounted

Matched power

kw

37-44

37-47.8

47.8-58.8
