Powder Products Automatic Packaging
Machine

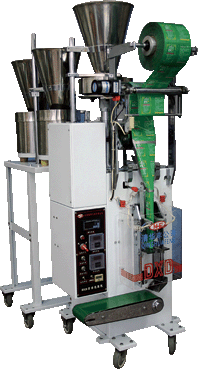

YDXDHB2-5
Multi Products Automatic Packing
Machine
 |
|
The machine is
composed of
volumetric
conveying cups,
vibration device
and convey. The
volumetric
conveying cups
are used to
convey and
measure free
flowing products
like beans,
powdered soup,
salt etc. The
bowl vibrating
feeders are used
to convey
irregular
products like
lump meats,
dried shrimps
and so on. The
bucket conveyers
are used to fill
multi-products
into one bag.
|
|
Specifications |
|
Performance
Type
|
YDXDHB2-5
|
|
Production
capacity
（bags
/
min
）
|
40-60
|
|
Volume
margin
（ml）
|
20-100
|
|
Bag
size
（mm）
|
L
50-180
W
50-120
|
|
Power
Voltage（
V ）
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
（W）
|
1120（heating180×4）
|
|
SIZE
AND
WEIGHT |
|
TYPE
|
SIZE
(MM)
|
NET
WEIGHT
(KG)
|
|
FDXDHB2
|
100×750×1650
|
200
|
|
DXDHB3
|
1200×750×1650
|
230
|
|
DXDHB4
|
1500×750×1650
|
260
|
|
DXDHB5
|
2000×750×1650
|
290
|
|
|

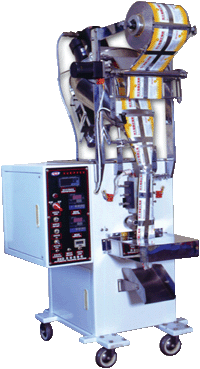

YDXDF60B
Powder Automatic Packing Machine
 |
|
Step motor
controls
filling-screw to
reach high
precision. The
whole measure
system is
controlled by
step motor too.
This series
machines are
used to packing
powder. Products
such as
pesticide,
fertilizer,
medicine, facial
mask, dried
milk, spice and
so on. Screw
filling is
suitable for bad
fluidity
material and
owns feature of
high speed,
accuracy and
practical use.
|
|
Specifications |
|
Performance
Type
|
YDXDF60B
|
|
Production
capacity
（bags
/
min
）
|
30-60
|
|
Volume
margin
（ml）
|
0-50
|
|
Bag
size
（mm）
|
L50-150 W40-100
|
|
Power
Voltage（
V ）
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
（W）
|
1600（heating180×4）
|
|
Dimension
（mm）
|
W650×D750×H1588
|
|
Net
Weight
（kg）
|
200
|
|
|

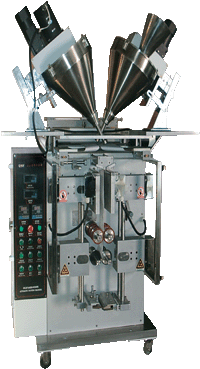

YDXDF160B
Powder Automatic Multiple Line Packing
Machine
 |
|
The machine are
best technical
in small bag
packing
machinery trades
at home and
abroad. Need the
highest GMP
standards
prevents hidden
deposits of
product. It
suitable for
packing Powder,
Sauce, Tablets
of medicines,
Food stuffs,
Agricultural
chemicals,
Chemical factory
etc.
Appearance of
the machine
looks
elaborative and
beautiful.
|
|
Specifications |
|
Performance
Type
|
DXDF-160B
|
|
Production
capacity
(cycle/min)
|
30-60
|
|
Volume
margin
(ml)
|
one
line1-100，double
lines1-50，three
lines1-20
|
|
Bag
size
(mm)
|
30-160mm,30-180mm
|
|
Power
Voltage
(v)
|
380V50H
3-Phase
and
5-wire
system
|
|
Power
Consumption
(w)
|
2kw
|
|
Power
gas
|
5kg/cm2 gas consume: 0.3 m3/h
5kg/cm2 gas
consume:
2
m3/h |
|
Dimension
(mm)
|
W1150×D1300×H1700
|
|
Net
Weight
(kg)
|
700kg
|
|
|

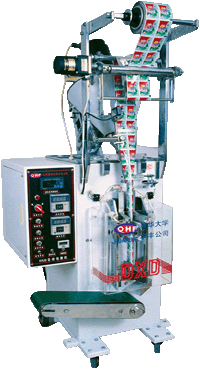

YDXDFZ60B
Powder Automatic Pillow Packing
Machine
 |
|
This series of
machines are
suitable for
pillow-shaped
packing of
powder products
of the various
walks of life.
Automatically
accomplish
packing, making
sack, filling,
cutting, sealing
and counting.
|
|
Specifications |
|
Performance
Type
|
YDXDFZ60B
|
|
Production
capacity
（bags
/
min
）
|
30-60
|
|
Volume
margin
（ml）
|
0-50
|
|
Bag
size
（mm）
|
L
50-150mm,W
40-100mm
|
|
Power
Voltage（
V ）
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
（W）
|
1600（heating180×4）
|
|
Dimension
（mm）
|
W750×
D750×
H1588
|
|
Net
Weight
（kg）
|
200kg
|
|
|
YDXDFZ30B
Powder Automatic Pillow Packing
Machine
 |
|
This series
packing machines
also produce
pillow-shaped
package sack and
packing capacity
meets request of
middle weight
measure. They
are suitable for
packaging powder
material in some
industries such
as food,
medicine,
chemical and so
on. They can
automatically
complete
screw-filling,
measure, making
sack, sealing,
cutting and
transportation.
|
|
Specifications |
|
Performance
Type
|
YDXDFZ30B
|
|
Production
capacity
（bags
/
min
）
|
18-30
|
|
Volume
margin
（ml）
|
100-320
|
|
Bag
size
（mm）
|
L100-200mm,W80-140mm
|
|
Power
Voltage（
V ）
|
380V
3-Phase
and
4-wire
system
|
|
Power
Consumption
（W）
|
1960（heating180×4）
|
|
Dimension
（mm）
|
W710×
D825×
H1770
|
|
Net
Weight
（kg）
|
220kg
|
|
|

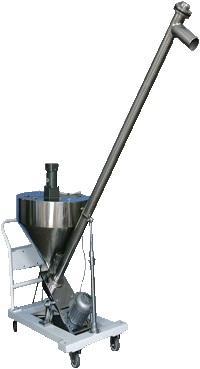

YSL1800
Automatic Supply Machine
 |
|
According to the
uses of
different way.
We can supply
all kinds of
products
elevator.
Packaging
Materials:
Paper/PE, OPP/PE,
plated
aluminum/PE,
polyester/plated
aluminum/PE,
copper plate
paper OPP/PE
|
|
Specifications |
|
Performance
Type
|
YSL1800
|
|
supply
capacity
(ml/min)
|
30000
|
|
Power
Voltage
(v)
|
380V
Phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
870
|
|
Dimension
(mm)
|
W1100×D620×H2070
|
|
Net
Weight
(kg)
|
80kg
|
|
|

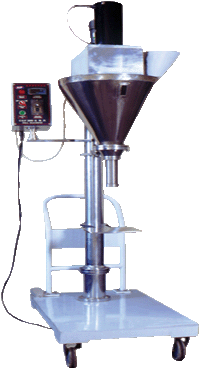

YCGF100
Automatically screw filling machine
 |
|
This machine is
similar to
YCGF2000 filling
machine .The
electric section
and the
machinery one
are very much
alike. It is
also used to
fill every kind
powder product
but the
dimension is
much smaller
than that of
YCGF2000 filling
machine. It aims
at filling a
little measure
products to be
designed and
made.
|
|
Specifications |
|
Performance
Type
|
YCGF100
|
|
Production
capacity
(bags/min)
|
20-40
|
|
Volume
margin
(ml)
|
20-100
|
|
Power
Voltage
(v)
|
220v
1-Phase
and
3
wire
system
|
|
Power
Consumption
(w)
|
1000
|
|
Dimension
(mm)
|
W560×D700×H1420
|
|
Net
Weight
(kg)
|
80kg |
|
|

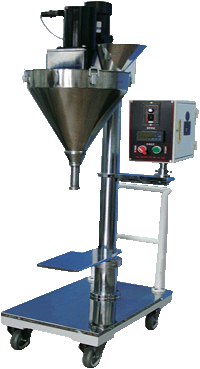

YCGF2000
Automatically screw filling machine
 |
|
The screw
filling machine
can accomplish
the course of
measuring and
filling many
kinds of powdery
matter.
According to the
controlling of
step Auto
system, the
machine can be
modified and
adjusted to
change the
number
of circles
which the
screw rotates
every time to
ensure the
filling
precision.
|
|
Specifications |
|
Performance
Type
|
YCGF2000
|
|
Production
capacity
(bags/min)
|
15-25
|
|
Volume
margin
(ml)
|
100-2000
|
|
Power
Voltage
(v)
|
380V
3-phase
and
4-wire
system
|
|
Power
Consumption
(w)
|
1200
|
|
Dimension
(mm)
|
W600×D1200×H2130
|
|
Net
Weight
(kg)
|
180kg
|
|
|
|

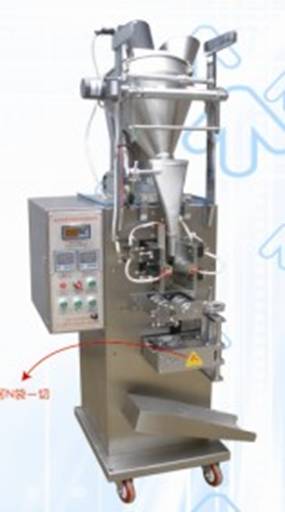

YDXDF60FX
Automatic powder packing machine
 |
|
The machine is
fully automatic
powder packaging
machine for
packaging a
variety of
powder
materials. Can
be used as
medicine,
veterinary
medicine,
pesticide,
fertilizer, food
condiment
packaging. Box
of stainless
steel with
corrosion
resistance,
wear. Measured
using screw
metering system
accurate and can
be a complete
bag making,
filling,
sealing,
counting. This
model can do
side sealing or
four sides
sealing,
optional 380V or
220V power
supply can be,
simple,
affordable,
pouch packaging
is the preferred
model.
|
|
Specifications |
|
Performance
Type
|
YDXDF60FX
|
|
Production
capacity
(bags/min)
|
40-60
|
|
Volume
margin
(ml)
|
1.0-100
|
|
Power
Voltage
(v)
|
380V
or
220V
|
|
Power
Consumption
(w)
|
1600W
|
|
Dimension
(mm)
|
W750×D800×H18000
|
|
Net
Weight
(kg)
|
260kg
|
|
|
|
