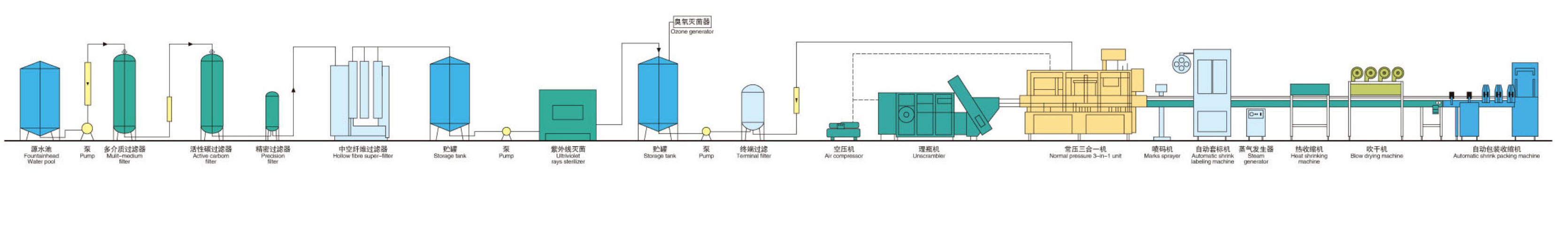

Water treatment production line
YY-JDL

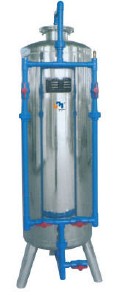

Series Multi-medium Filter
The equipment
is a hermetically sealed chamber
made of 1Cr18NiTi stainless steel
which is set inside gritted rod,
therefore get fill treated and clean.
The equipment is widely used in
petroleum industry. Medicine
industry. Brew manufacturing and
beverage industry. it is a ideal
equipment to produce high quality
water. The production
capacity.1-100T/h.

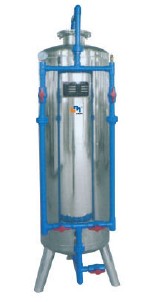

YY-CHT Series Active Carbon
Filter
The filter
is designed for dinking water
treatment. It can clear away
alien color and foreign
substance from the water and can
remove heavy metal such as
mercury, Lead, cadmium, Zink,
iron, manganese and chromium,
and hydrogenate, sulphide,
and so on. The filter is
the ideal equipment for drinking
water, foodstuff, beverage,
pharmaceutical industries. The
production capacity:1-100T/n.

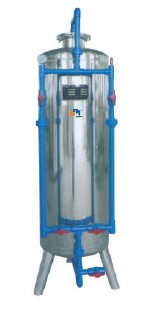

YY-SNJ Series Sodium lon
Exchanger
The exchanging
device is for reducing the hardness
of hard water Raw water goes through
the exchanger from top to bottom, to
be softened by the sodium ion
exchanger inside the device. The
positive ions of magnesium and
calcium are exchanged with that of
sodium. Then the raw water becomes
soft water containing very few ions
of magnesium and calcium. The soft
water can be used for feeding water
of boiler and for some industrial
uses. Due to its high dissolving
ability in water, sodium ions will
not form hard sediment in the boiler
and can be easily removed. Raw water
shall be filtered and set with
almost on suspended before coming
into the Lone changing device. After
being softened in the device, the
water's hardness shall be less than
0.03mag equivalent/:.The production
capacity:1-100/h.
YY-JML Series Precision
Filter
This filter is designed for
dinking water treatment. It can
clear away alien color and
foreign substance from the water
and can remove heavy metal such
as mercury, lead, cadmium, Zink,
iron, manganese and chromium,
and hydrogenate, sulphide, and
so on. The production
capacity:1-100T/h.
YY-CL
Series Hollow Fiber Super Filter
This ultra filter adopts
dissymmetrical semi permeable film
which is made from macromolecule
material with special process. The
raw liquid flows under pressure,
inside or outside the film. The
macromolecule substance and colloid
particles in the raw liquid are
clogged at the film surface and are
brought away by calculating raw
liquid. Then the raw liquid becomes
inspissated, and further more, the
substance in liquid is separated,
concentrated. The production
capacity:1-100T/h.

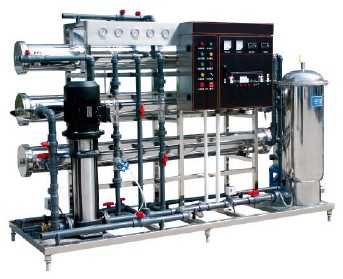

YY-FST Series Reverse
Osmosis Device
The reverse osmosis device is an
equipment to purify the saline water
with the action of pressure
difference of semi permeable
membrane. It is called reverse
osmosis, as it is counter to natural
penetration direction. Different
materials have different osmotic
pressures. The reverse osmosis
method to adopt larger osmotic ,
purify and condense. The production
capactiy:1-50T/h.
YY-OF Series Ozone Generator
Ozone generator is a patent
technological product which adopts
the patent technology from Tsinghua
University. Its function is stable
and reliable and easy to use.
Besides, it has good effect of
sterilization without second
pollution. It chooses oxygen as gas
source, so the concentration of
ozone is high and will not produce
nitrogen-oxygen compound. It adopts
way of water refrigeration so that
it can make sure the stability of
produced ozone's concentration. The
production capacity is 1-100T/h.
YY-ZM Series Uitraviolet
Sterilizer
The equipment has features of
killing bacteria, virus, yeast,
mould, algae in water using
ultraviolet. It can be widely used
and up to the effect of disinfection
because it doesn't need adding any
chemicals and any heating or
cooling. The production
capacity:1-100T/h.
