Non-gas bottled liquid
production line
YY-XGF-80-80-24
Three-In-One Washing, Filling
and Capp
Introduction of
Production:

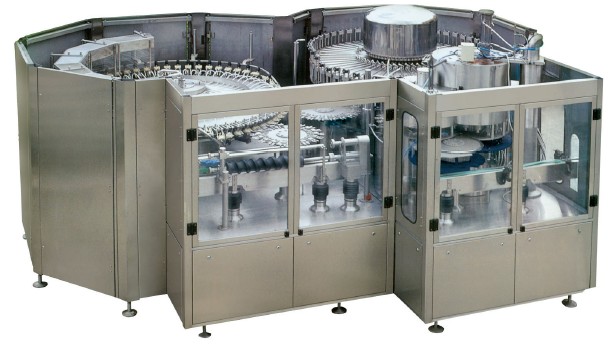

XGF-80-80-24 three in one high speed
filling machine is designed for
large-scale beverage production. The
machine maximum output can reach
36000bottles per hour. Special
filling design can precisely control
liquid level. Sanitarian circulation
pipe precise prove products filling
circumfluence demand. Entire CIP
circumfluence pipe prove rinsing
effect. It adopts touch screen which
operation is easy and convenient.
¡¡
Model |
XGF40-40-15 |
XGF50-50-18 |
XGF60-60-20 |
XGF80-80-24 |
Production Capacity (500ml) |
13000-14000 |
15000-16000 |
18000-20000 |
32000-34000 |
Washing heads |
40 |
50 |
60 |
80 |
Filling heads |
40 |
50 |
60 |
80 |
Capping heads |
15 |
18 |
20 |
24 |
Suitable bottle size |
Round
or Square |
Diameter of bottle |
¦µ50-¦µ90 |
Height of bottle |
150-310 |
Compressed air pressure |
0.3-0.7 |
Washing medium |
Sterile
Water |
Washing pressure |
0.25 |
Power (KW) |
7.5 |
9 |
11 |
15 |
Overall dimension (mm) |
5000x2800x2400 |
5900x3100x2400 |
6500x3500x2400 |
6800x3900x2400 |
Weight |
9000 |
11000 |
13000 |
15000 |

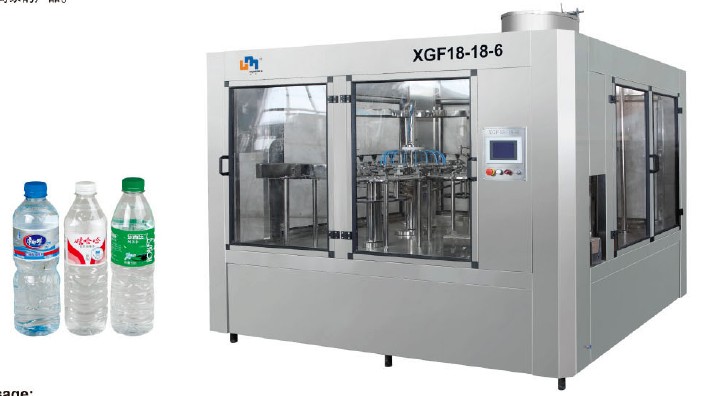

YY-XGF
Series Normal Pressure 3-In-1 Unit
Usage:
This line is mainly used for
washing, filing sealing non-gas
drink, such as mineral water, pure
water, and so on.
Characteristics:
It adopts hanging type
conveying-bottle structure to make
changing bottle model more
convenient, faster and easier. The
main machine adopts advanced PLC
control technology. The Key electric
elements adopt international famous
products.
¡¡
Model |
XGF16-12-8 |
XGF18-18-6 |
XGF24-24-8 |
XGF32-32-12 |
Production Capacity (500ml) |
4000-5000 |
6000-8000 |
8000-10000 |
10000-12000 |
10000-Washing heads |
16 |
18 |
24 |
32 |
Filling heads |
12 |
18 |
24 |
32 |
Capping heads |
6 |
6 |
8 |
12 |
Suitable bottle size |
Round
or Square |
Diameter of bottle |
¦µ50-¦µ90 |
Height of bottle |
150-310 |
Compressed air pressure |
0.3-0.7 |
Washing medium |
Sterile
Water |
Washing pressure |
0.25 |
Power (KW) |
3.13 |
3.84 |
4.1 |
5.6 |
Overall dimension (mm) |
2100x1650x2300 |
2400x1900x2300 |
2800x2100x2300 |
4200x2300x2300 |
Weight |
2500 |
3000 |
4000 |
5000 |
¡¡
YY-QS
series rotary bottle washer
Model |
QS-12 |
QS-18 |
QS-24 |
Production Capacity
|
2000-3000B/H |
300-5000B/H |
5000-7000B/H |
Diameter of bottle |
¦µ60-¦µ100mm |
¦µ60-¦µ100mm |
¦µ60-¦µ100mm |
Height of bottle |
160-320mm |
160-320mm |
160-320mm |
Power |
0.75kw |
1.45kw |
1.45kw |
Overall
dimension |
1200x1000x1800mm |
1400x1250x1800mm |
600x1450x1800mm |
Weight |
500kg |
700kg |
900kg |
¡¡
YY-CP-24
Bottle Washer
Usage: It
is used to wash glass bottles,
plastic bottles, pop-top cans.
¡¤Main Technical Specifications:
Production Capacity |
2000(b/h) |
Washing heads |
24 |
Operating pressure |
0.2-0.4mpa |
Power |
0.75kw |
Dimensions |
980x800x1300mm |
Weight |
350kg |
YY-CY
Series Normal Pressure Filler
Model |
CY-12 |
CY-18 |
Production Capacity |
2000-3000B/H |
4000-5000B/H |
Bottle/Can type |
Glass bottle |
PET bottle |
Power |
0.75kw |
1.1kw |
Overall
dimension |
1000x900x1700mm |
1200x1000x1750mm |
Weight |
800kg |
1000kg |
¡¡
YY-FXZ
Screw Type Sealer
Model |
FXZ-1 |
FXZ-6 |
FXZ-8 |
Production Capacity
|
2000B/H |
5000B/H |
7000-8000B/H |
Diameter of bottle |
¦µ50-¦µ100mm |
¦µ50-¦µ100mm |
¦µ50-¦µ100mm |
Height of bottle |
150-320mm |
150-320mm |
150-320mm |
Power |
0.75kw |
2kw |
1.2kw |
Overall dimension |
900x700x1850mm |
1200x1000x1800mm |
1500x1200x1900mm |
Weight |
350kg |
500kg |
750kg |
¡¡
¡¡
¡¡

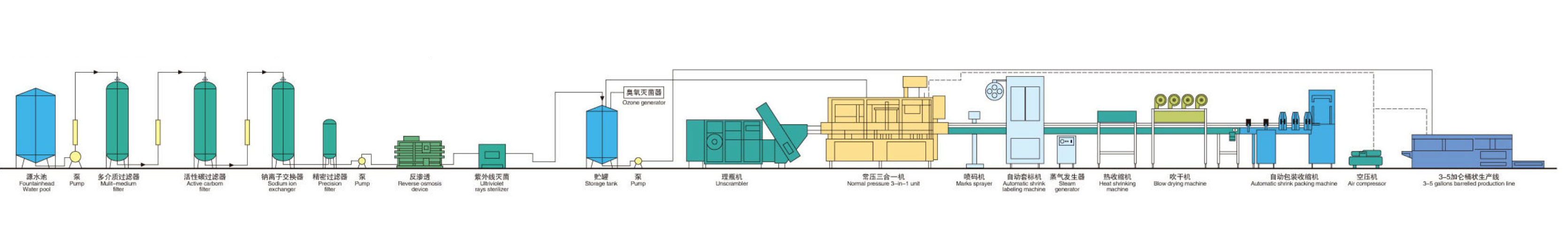

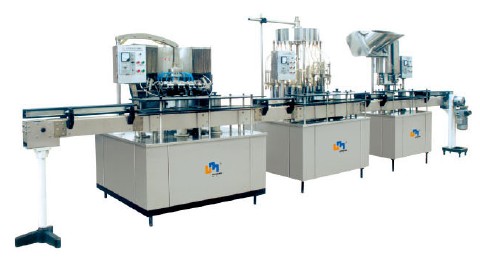

YY-Non-Gas
Drink Production Line
Usage: Our production lines of
washing, filling sealing and
conveying system is the best
constitute for PET bottle filling
pure water, mineral water, fruit
juice, tea drinks, wine and so on
.The production capacity as (take
500ml PET bottle as
example)2000B/H,4000B/H,6000B/H,8000B/H.

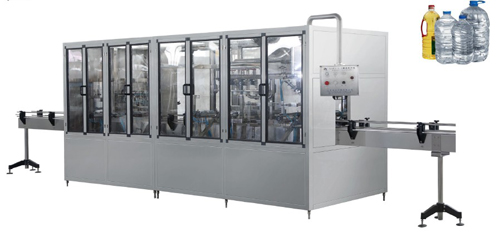

YY-Linear
Filling Machine
Usage:
the series equipment is used in
4-10L water and oil filling
production. The equipment is
integrated by washing, filling and
capping together. It is well
designed with good-looking
appearance. In addition, it is easy
to operate and convenient to repair,
moreover, with high automation.
¡¡

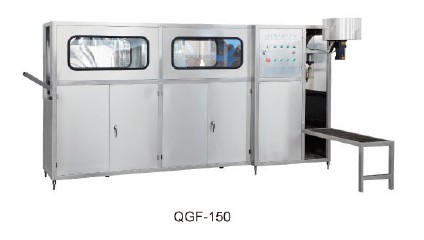

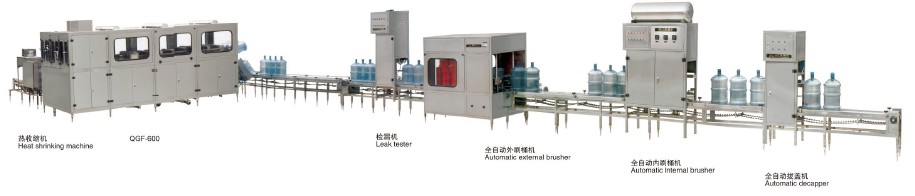

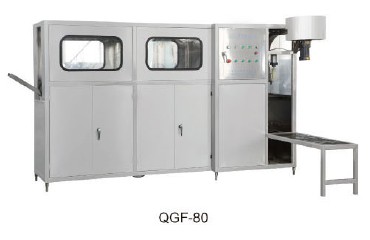

YY-QGF
Full Automatic Barrel Filling
Production Line
Model
|
QGF-80 |
QGF-150 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
Filling heads |
1 |
1 |
2 |
3 |
4 |
6 |
Volume (L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
Barrel size (mm0 |
¦µ270x490 |
¦µ270x490 |
¦µ270x490 |
¦µ270x490 |
¦µ270x490 |
¦µ270x490 |
Capacity (b/n) |
80 |
150 |
300 |
450 |
600 |
900 |
Gas
pressure (mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.7 |
Gas
consumption (m3/min) |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.2 |
Motor
power(kw) |
1.38 |
1.75 |
3.8 |
3.8 |
7.5 |
9 |
Motor
voltage (V) |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
Weight (KG) |
500 |
700 |
1200 |
1600 |
2000 |
3500 |
Overall dimension (mm) |
2500x1100x1600 |
2800x1100x1600 |
3800x1300x1600 |
4200x1600x1600 |
4800x1800x1600 |
4200x2300x1600
2800x1000x1600 |
¡¡
¡¡
¡¡
