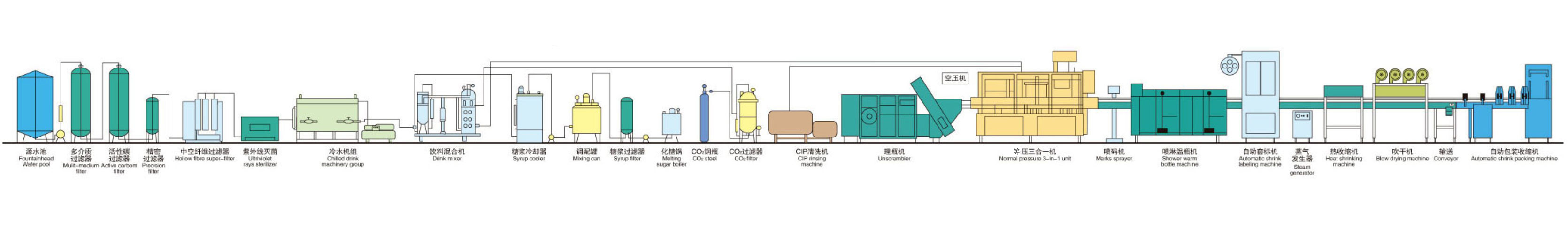

Carbon Dioxide Drink production
line
Brief introduction of
YY-DCGF series Pressure Filling
Machine
YY-DCGF three-in-one filling
machine is suitable for
carbonated beverage filling.
This machine has three functions
as washing, filling and capping
into one, fully automated,
appropriate for PET bottles, PET
bottle carbonated beverage
equipment. It can applicable to
all kinds of bottle type, using
card technology bottleneck,
conveyor for bottles only to
send chain height adjustment,
easy to operate. Filling method
uses a new type of
micro-pressure filling. Filling
faster, more stable, and similar
devices, this machine offers
higher yields and low failure
rate. It has the advantage of
cost-effective.
| Model |
YY-DCGF18-18-6 |
YY-DCGF24-24-8 |
YY-DCGF32-32-12 |
YY-DCGF40-40-15 |
YY-DCGF50-50-18 |
| Production capacity
(500ml) |
5000-6000 |
6000-7000 |
8000-9000 |
10000 |
11000 |
| Filling Precision |
¡Ü¡À5mm |
| Filling Pressure |
¡Ü0.4 |
| PET Bottle Size |
bottle diameter:
¦µ50-¦µ100, bottle
height:150-310 |
| Suitable Cap Size |
Plastic screw cap |
| Power (KW) |
3.1 |
3.1 |
5.6 |
7.5 |
9 |
| Weight (kg) |
3500 |
4500 |
5500 |
9000 |
12000 |
| Overall Dimension
(mm) |
2400x1900x2300 |
2800x2100x2300 |
4200x2300x2300 |
5000x2800x2400 |
5900x3100x2400 |
Technical parameter of YY-GD Series
Isobaric Filling Machine
| Model |
YY-GD-8 |
YY-GD-12 |
YY-GD-18 |
| Production capacity
|
1500-2000B/H |
2000-3000B/H |
4000-5000B/H |
| Bottle/Can Type |
glass bottle, PET
bottle, pop-top bottle |
| Filling Pressure |
0.2-0.3Mpa |
| Filling Temperature |
2-6¡æ |
| Power |
1.5KW |
1.1KW |
1.5KW |
| Overall Dimension |
1060x1200x2000mm |
1300x1150x1980mm |
1520x1300x1820mm |
| Weight |
1000KG |
1300KG |
1800KG |
¡¡
YY-Cans production line
Purpose: The production line is
designed for bottling carbonated
beverage in different
combinations to be applied in
different glass bottles, cans,
and PET bottles. The production
line is composed of the washing
machine, isobaric filling
machine, sealing machine, and
conveying system. Production
capacities are 2,000 cans/hour,
4000 cans/hour, 6000 cans/hour.
YY-Gas Drink Production Line
Usage:This line is especially
designed for carbon dioside
drink.By all sorts of constiute
if can fit for typical glass
bottles,pop-top cans,PET
bottles,All the line is made by
washing machinery,converying
system.The production capacity
is (take 500ml as
esample)2000B/H,4000B/H,6000B/H.
YY-Cold Drink Water Tank
and Refrigerator
Characteristics:
The tank contains compressor using
Freon F-22 aser frigerant, and
temperature regulator for automatic
controlling. It is necessary
equipment for gas drink production
industry.
|
Cold drink tank model |
YY-LY2000 |
YY-LY3000 |
YY-LY4000 |
|
Compressor model |
2F-10 |
4F-10 |
4F-10 |
|
Tank volume (m3) |
2 |
3 |
4 |
|
Vapouring area (m3) |
11 |
20 |
20 |
|
Refrigerating capacity
(kg/h) |
58520 |
117040 |
117040 |
|
Water output (kg/h) |
2000 |
3000 |
4000 |
|
Output water temperature (¡æ) |
3-8 |
3-8 |
3-8 |
|
Power (KW) |
11 |
22 |
22 |
|
Overall dimension (mm) |
2200x1200x1800 |
2200x1250x1800 |
2500x1500x1800 |
|
Weight (kg) |
1230 |
1250 |
1500 |
YY-QJ-C Carbon Dioxide
Filter
YY-QJ-C
carbon dioxide filter is applied
to improve purity of CO2 and
separate impurity.
Production capacity (kg / h)
:6-10kg / h
Dimensions Overall dimensions
(mm): 500 ¡Á 410 ¡Á 1400
Weight Weight (Kg): 80kg
The TL type syrup cooler cools
syrup to1-5¡æ through
refrigerator.
YY-QHS Series Drink Mixer
Characteristics: YY-QHS series
drink mixer is designed and made
for improving the proportion of
water, syrup and carbon
dioxide. It adopts foreign
advanced technology static mixer
to lighten water layer, increase
carbonizing time, assure mixing
result. It adopts
high quality water pump and
SIEMENS electrical equipment and
other parts to form complete
automatic control system. It has
coordinating action, beautiful
appearance, convenient
washing, high automatic level and
other advantages. It is suitable
for mixing all kinds of
drink, such as soda water, fruit
juice, cola and hard drinks.
|
Model |
YY-QHS-1500 |
YY-QHS-3000 |
YY-QHS-4000 |
YY-QHS-6000 |
|
Production capacity |
1500KG/H |
3000KG/H |
4000KG/H |
6000KG/H |
|
Carbon dioxide content |
¡Ý2.5 |
¡Ý2.6 |
¡Ý2.5 |
¡Ý2.5 |
|
Inlet temperature of the
chilled water |
3-6¡æ |
3-6¡æ |
3-6¡æ |
3-6¡æ |
|
Power |
1.1KW |
2.42KW |
3.1KW |
4KW |
|
Overall dimension |
1200x1000x1800 |
1500x1000x2000 |
1660x1000x2000 |
1900x1200x2100 |
|
Weight |
200KG |
350KG |
400KG |
500KG |
¡¡
