Model No:TJX009

Name

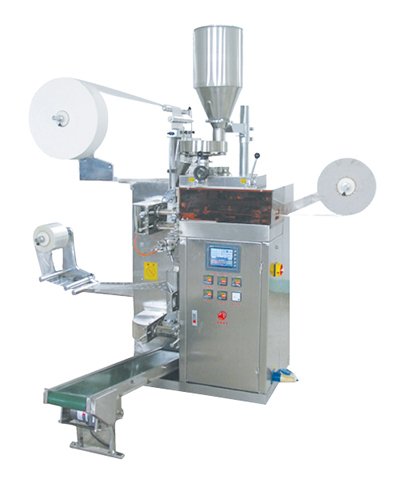

Packaging Machine For Dual Bags With Hang Strand And Label

Purpose

Available for dual packaging in the way of both the inner and outer for granulated tea, granulated herbal tea, granulated health tea etc. in a single pass on the same machine.

Feature

The machine is a kind of newly designed, heat sealing type, multifunctional and fully automatic packaging equipment. The highlight of this unit is packaging automation available for completing both inner and outer bags in a single pass on the same machine to avoid direct touch with the stuffing materials and meanwhile improve the efficiency. The inner bag is made of filter cotton paper, available to be automatically packed with strand and label. The outer bag is made of composite paper. The key advantages: photoelectric orientation for the label and outer bag; optional adjustment to packaging volume, inner bag, outer bag and label; According to what you exactly need regulate the size of inner bag and outer bag, and eventually achieve the ideal packaging quality as needed so as to upgrade the sales value for the product then to bring more benefits.

Material application

paper/plastic/aluminum/plastic paper/aluminum/plastic, filter cotton paper , cotton thread, label paper

Technical parameter

Measuring range

1-5 (Max)

Packaging speed

30-40 (bag/min)

Label size

W：40-55mm　　 L：20-40mm

Thread length

155mm

Inner bag

W：50-80mm　　 L：50-70mm

Outer bag

W：70-90mm 　　L：80-120mm

Power supply

220V /50HZ/ 3.7Kw

Dimension

(L×W×H)900×610×1500mm

Machine Weight

500Kg
