Model No.£ºTJX019

Name

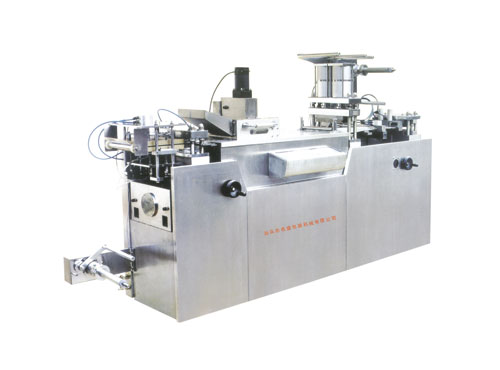

Flat Bed Type High Speed Multifunctional Aluminum/Plastic Auto-Packaging Machine

Purpose

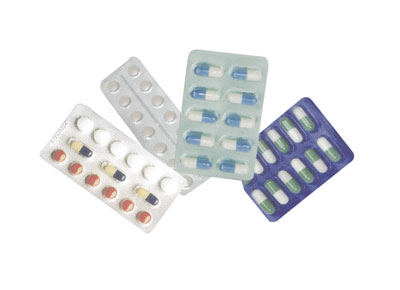

It is widely applied to pharmacy, food and chemical industry, realizing automatic completion of forming, feeding, heat sealing, pressing and blanking. It is suitable for automatic packaging of aluminum-plastics plate for milk powder cake. tablets, capsules, candies and seeds etc. products.

Feature

¡¤ inverter to control speed with stepless speed adjustment .
¡¤Convenient, synchronous and precise stoke adjustment
¡¤ Adopts plate mold, positive pressure forming, brimless blanking, electronic counting, with the functions of lot number printing, creasing and cutting, plate cutting, plate finishing and auto-stop alarm.
¡¤ Equipped with triple radial feeder with high feeding ratio.
¡¤ Automatic plate registration function for forming, plate registration for heating, to improve heating efficiency and meanwhile avoid heat distortion and waste of plastics.
¡¤ Heat sealing adopts pneumatic system to eliminate the bubble distortion on machine stopping; Automatic buffering function provided for over-pressing to extend life span of machine.

Technical parameters

Max plate size

240*150(mm)

Forming depth

13-30 (mm)

blanking speed

50 times/min 1-6 plate/time

production capacity

10-30 bags/min

Dimension

870*650*1850

Total Power

1.2Kw

Machine weight

280Kg
