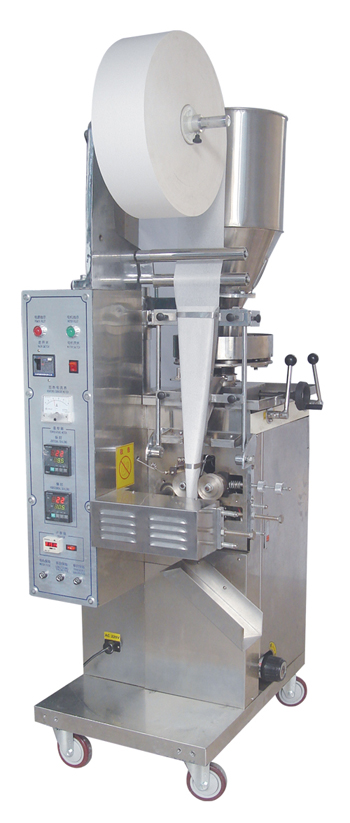

Automatic Tea-Bag Packaging Machine
|
Model-TJX007 |
|

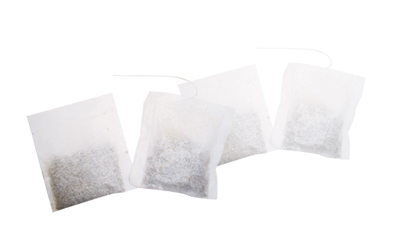

Packing Effect |
|
Introduction of Product
|
Model No.：TJX007 |
|
Name |
Automatic Tea-Bag
Packaging Machine
|
|
Purpose |
suitable for
automatic packaging
of herbal tea , tea
fannings, coffee
etc. filterable
products. |
|
Feature |
The finished tea-bag
is portable by a
hang strand. This
unit can
automatically
accomplish
bag-making,
measuring filling,
sealing, slitting
and counting. |
|
Usable material
|
Filter cotton paper、cotton
thread |
|
Technical parameter
|
|
Bag Size |
L：50-75
mm; W：50-80
mm |
|
Measuring method
|
Volumetric
measurement
|
|
Production capacity |
40-60 bags/Min
|
|
Measuring Scope |
1-5g |
|
Power Supply |
AC 220V/50HZ/1.6Kw |
|
Machine Weight |
350Kg |
|
Dimension |
（L×W×H）640×1100×1850mm |
|

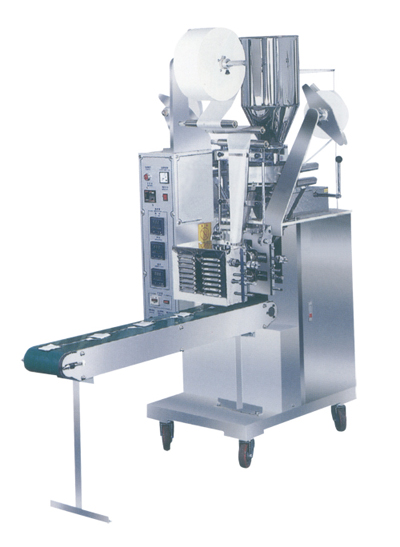

Automatic Packaging Machine For Tea-Bag
With Hang Strand And Label
|
Model-TJX008 |
|

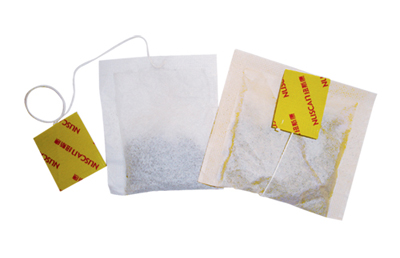

Packing Effect |
|
Introduction of Product
|
Model No.：JX008 |
|
Name |
Automatic Packaging
Machine For Tea-Bag
With Hang Strand And
Label |
|
Purpose |
Applicable for
packaging of tea,
coffee, herbal
medicine
etc.filterable
products.
|
|
Feature |
All the works in
regard to
bag-making,
measuring, filling,
sealing, slitting
and counting can
automatically be
done .The finished
tea-bag is portable
by a hang strand
uniquely in addition
with a label. |
|
Usable material
|
Filter cotton paper,
cotton thread, label
paper |
|
Technical parameter
|
|
Measuring method |
Volumetric
measurement
|
|
Measuring Scope |
1-5g |
|
Bag Size |
L:50-75 W:55-75 |
|
label size |
W28×L（18-22）(mm) |
|
Dimension |
900×950×1800(mm)
|
|
Machine Weight |
400Kg |
|
Power Supply |
220V、50Hz |
|
Total power |
1.6Kw |
|
|
