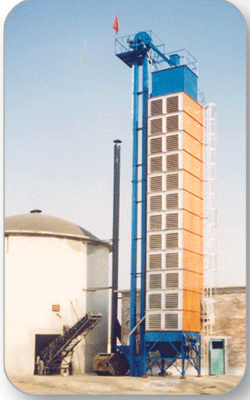

Drying Machine
5H(Z)HL series of the dryer of food
(seed) and oil crops
Product Introduction
The
machine can be applied to the dry
processing of the food crops of wheat,
maize, rice and the oil crops of
rapeseed, soybean and seed. At present
the dryer has covered in northeast
China, north China, central China, etc,
the results obtained user's consistent
high praise.
¡¡
¡¡
Product Characteristics
One, The use of advanced slow sue
reversing mixed flow drying technology,
computer simulation optimization of
process parameters determined, dry
strength, high thermal efficiency.
Two, To material compatible,
multi-usage, stand-alone operations for
a long time, dry low cost.
Three, Grain flow even, finished product
grain moisture content not uniformity is
extremely low.
Four, Fuel wide: according to user needs
to choose fuel, burning coal, choose
straw or natural gas as raw materials.
Five, Hot air temperature is adjustable,
wind temperature adjustment range 30 to
130 degrees.
Six, The Yangtze river basin rape, rice
products used by the application of the
model patent technology pulse pneumatic
row, can effectively avoid food agency
for rice caused by the liquidity
difference between jam phenomenon.
¡¡
Product's Technical Parameters
|
5H(Z)HL
series of the dryer of food
(seed) and oil crops |
|
Technology parameter |
5H(Z)HL-30 |
5H(Z)HL-50 |
5H(Z)HL-100 |
5H(Z)HL-150 |
5H(Z)HL-200 |
5H(Z)HL-300 |
|
Handling capacity
(t/d) |
Corn |
24 |
40 |
80 |
120 |
160 |
240 |
|
Wheat |
30 |
50 |
100 |
150 |
200 |
300 |
|
Oilseeds |
30 |
50 |
100 |
150 |
200 |
300 |
|
Rice |
15 |
25 |
50 |
75 |
100 |
150 |
|
Precipitation range(%) |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
|
Coal Consumption(KG/H) |
11-14 |
23-28 |
70-85 |
150-175 |
300-350 |
450-525 |
|
Installed capacity(KW) |
15 |
23.5 |
42 |
<60 |
79 |
<110 |
|
Unit heat consumption
(k j/kg*H2O) |
5862(The
environment temperature 0
degrees Celsius) |
|
Hot-blast temperature(degrees) |
30 to 150 degrees
set within range |
|
Highest temperature
food(degrees) |
Less than 45
degrees |
|
Grain pollution
|
without |
|
Dry not uniformity(%) |
<=2 |
|
Broken rate appreciation(%) |
<=5 |
|
Heating device
efficiency(%) |
65-70 |
|
Noise index |
Space less than
56 db, work area is less than
85 db
|
|
¡¡ |
