 Corn Series Machinery




  • CTN YaAo1GZN-220 combined soil-working machine

  • Introduction

This combined tillage machine is composed of a tractor rear power output shaft driven by a three point suspension type tillage machine, and it can be combined with 60-180HP class variety of models of tractor.This machine is used for farming or not has been cultivated on the tillage, it can complete deep loosing,destroy stubble,rise ridge,and many other operations and comprehensive effect.



  • Specifications

Machine model: 1GZN-200/1GZN-220/1GZN-250/1GZN-270/1GZN-300/1GZN-350
The supporting power(horsepower):80-90/80-100/90-130/90-130/100-160/120-180
The high of box center(mm):534 610
Tilling width (m): 2.00 2.20 2.50 2.70 3.00 3.50
Ridge ridge distance(cm):55-70
The ridge number:3 3-4 4 4 4-5 5
Deep plowing(cm):8!16
Unit productivity(HA/h):0.27-1 0.27-1.07 0.4-1.27 0.4-1.4 0.53-1.53 0.53-1.73
The knife shaft rotation speed (RPM): the first group:250 280 310,the second group:280 310 355,the third group:210 250 355.





  • CTN Nonghaha 1G-180 rotary cultivator



  • Specifications

Machine model:1G-180
Tilling width(cm):180
Deep plowing(cm):12-16
The supporting power(horsepower):50-65
Machinery speed (km/h):1-5
After plowing flatness (CM):+5
Depth stability(%):−85
Blade quantity (handle):52
Machine weight(kg):435





  • CTN Nonghaha 2BMFS-6/12 fertilizing and seeding machine

  • Introduction

Set of conservation tillage, straw returning, vegetation coverage, deep placement of fertilizer and wheat furrow sowing five advanced technology as a whole, it can do crushed stalk, ditching, destroy stubble, fertilizing, sowing, and pressing operations on one time.



  • Specifications

Size(L〜W〜H):140.5〜211.6〜131.3 cm
The supporting power:40.4-58.8 KW
Weight:600kg
Working width:190 cm
Working rows:corn 12lines,fertilizer 6 lines.
Row spacing:10 narrow,width 20cm
Cutter shaft speed:310,Å410 rpm
Sowing depth:3-5 cm(can be adjustable)
Depth:8-10 cm
Rate of damaged seeds:+0.5%
Pure hour productivity:5-7 mu/h

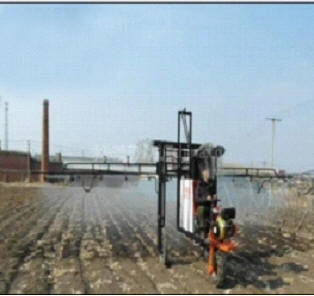

  • Self walking type overhead corn spray machine





  • Introduction

1. High work efficiency, low labor strength of the operator, single-person operation, can prevent and cure 400 squares per minute.
2. Humanized design, convenient operation, simple.
3. Spray bar height adjustable, according to different crop growth period to adjust the optimum spraying height.
4. The rear wheel is adjustable, according to different planting row spacing of dry crops adjustment wheel walking width, can greatly reduce the work on crop damage and injury.
5. Using a variety of clutch control mode, can realize the startup, walking, spraying movements such as the separate control.
6. Imported nozzle, special spray system, the fog particle fine, uniform atomization, can greatly improve the utilization rate of pesticide.



  • Specifications

Motor: diesel engine
Power:13HP 186F(electric start)
Kit volume:400L
The liquid pump flow rate:90L/min three cylinder diaphragm pump
Working pressure:0.2-0.4MPa
Stirring style: water mixing
Spray rod forms: five segments, hydraulic automatic folding
Spraying system:spraying system of imported parts with gush 8meters and head12
Spray rod height: 500-2700mm
The efficiency of treatment:400m2/min(0.6mu/min)





  • CTN 3XZC-2 type spring tooth type weeding machine



  • Introduction

This machine used for corn, soybeans, broomcorn first and second passes weeding.
Production capacity: 0.4-1hectare/hour.





  • CTN Nonghaha 4YZ-4 corn combine harvester



  • Introduction

This machine could exchange the cut platform with wheat, and use for the corn harvest, it can be finished pick spic, ear collecting box one time. The machine can do the harvest in different lines. It has the advantages of reasonable structure, light weight, convenient and flexible operation, maintenance is convenient wait for a characteristic.



  • Specifications

Model:4YZ-4
Size(L*W*H):6736*2460*3440mm
Harvest width(mm):2400
Working speed:(km/h)+3.5
Ear loss rate:+3%
Loss rate of grain:+1%

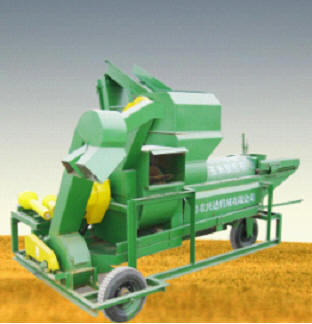

  • CTN 5TY-15 type corn thresher

  • Introduction

This machine is used for peeling corn for feeding, threshing, separating, cleaning, bag filling operation.This machine adopts traction structure. It forms by the feeding device, a threshing device, a cleaning device, the grain lifting device, frame and a traction device. The machine has advanced performance, good operation quality, high productivity, firm and durable, convenient repair and maintenance characteristics.
Power: 18-30 horsepower
Productivity: 15 tons/hour





  • CTN 5HTJ-0.5/1.0 grain drier

  • Introduction

This machine is suitable for drying grains, such as rice, corn and wheat etc. it uses coal or straw as fuel and solves the grain storage and distribution problems.
Efficiency: rice is 10 tons/day
                 wheat is 10 tons/day
                 corn 4-6 ton/day
The installed electric capacity: 3-4 KW
