Triangle Tea bag machinery

Name of Machine

Pictures Technical Parameter

 Brief Introduction

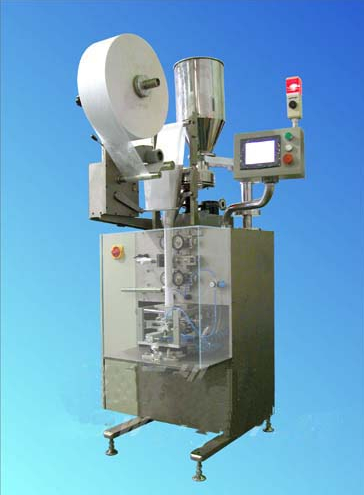

YDYXDCH-10D TRIANGLE TEA BAG MACHINE




Length of pyramid bag:
50-80mm
Size of flat bag:
60~90mm (width)* 40~80 mm (length)
Width of material¨s roll:
120140160180mm
filling range: 1.5~10g
Speed: 50 bags/minute
Power supply: 220V AC 50HZ 1.8KW
Air Pressure: 0.6MPa
Air consumption: 200L/min



The Model YDYXDCH-10D tea bag packing machine is our new pyramid tea bag packing machine, and it could use the non-woven fabrics and nylon filter fabric to produce pyramid bags which have good quality.

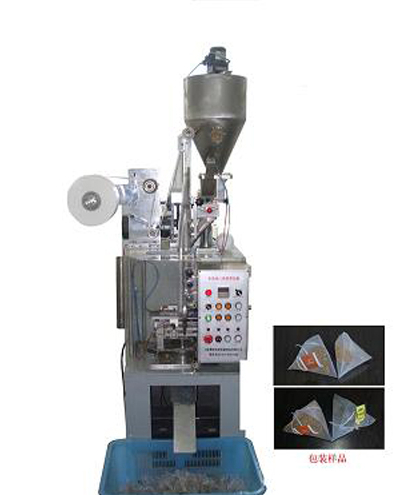

DXDC50 TRIANGLE TEA BAG MACHINE





Speed: 50 bags/minute
Length of pyramid bag: 50~80mm
Size of flat bag: 60~90mm (width)* 40~80 mm (length)
Tea content: 1.5~10g



Model DXDC50 is our new pyramid tea bag packing machine, and it could use the non-woven fabrics and nylon filter fabric to produce pyramid bags.

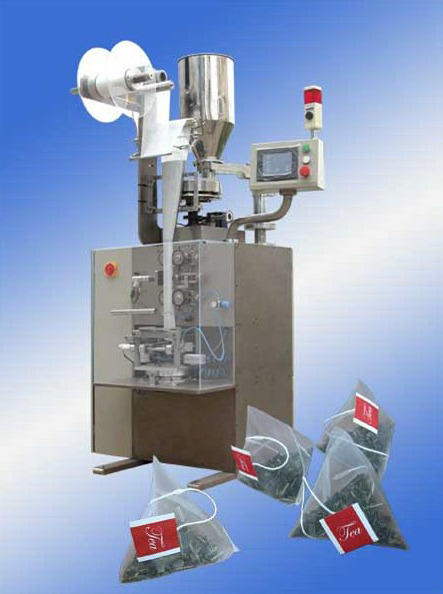

TSF50-5S
TRIANGLE TEA BAG MACHINE



Tea content: +2\0.5 g/bag
Speed: 35-50 bags/minute
Width of material¨s roll: +Φ400mm
Inner diameter of material roll: Φ76mm
Air Pressure: 0.6Mpa (adjustable)
Power: 0.8kw
Outsize: L 900〜W 660〜H 2100 (mm)
Weight: 500kg

By ultrasound sealing & cutting of the bags, it¨s possible to production TEABAG which is ease to take out and has pretty shape. With the labels used in packaging materials can be simply produced TEABAG with the label.

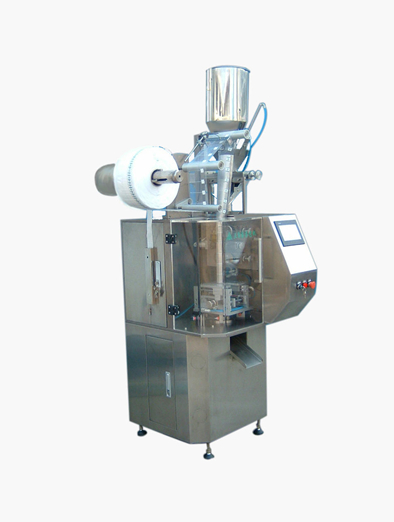

YDYXDK-180
TRIANGLE TEA BAG MACHINE




Packs ability: Up to 50 bags / min
Measurement way: Glide volumetric metering
Packing material: Nylon, polyester mesh, non-woven fabrics, ultrasonic
Size of tea bag:
Triangle: 50-80mm (one side)
Size of machine: 700* 850*1800(W*L*H) (mm)
Electrical power:
Main machine: 3 x 200V 2.0kw

Features:
1. It can make out the appearance of prominent and beautiful shape of the production of tea bags by ultrasonic sealing way.

2. Packing capacity can achieve 3000 bags/h.

3. Sliding volume measurement makes adjustment of stuffing quantity easily

 Materials used for the production

    Item Name Pictures Related Parameter

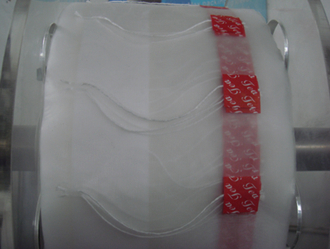

Non-woven fabrics (the material of making the triangle tea bag)

Size: 140-160mm
Quantity: 6000bags/KG
Weight: 1roll/KG

Tag

10000tags/kg
Thread

37500bags/Roll

   Price List

 Name of Product  Price (USD)
YDYXDCH-10D TRIANGLE TEA BAG MACHINE USD 46,875.00/set

DXDC50 TRIANGLE TEA BAG MACHINE

USD 50,600.00/set
TSF50-5S
TRIANGLE TEA BAG MACHINE
USD 48,667.00/set
YDYXDK-180
TRIANGLE TEA BAG MACHINE
USD 48,667.00/set
Tag USD 6.40/KG
Tag Printing Cost USD 1.30/KG
Adding each color USD 120.00/COLOR
Thread USD 6.00/ROLL
