Sugar Production line
Milling extraction equipment
|
|

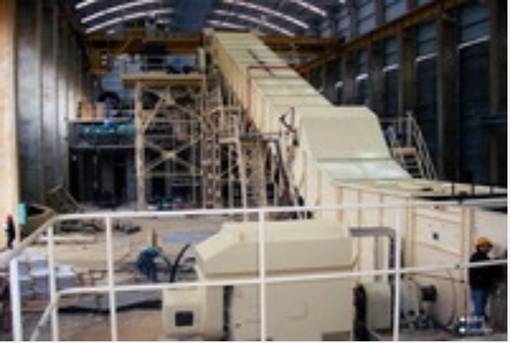

Sugar cane conveyer
It is equipment for conveying sugar cane
evenly and continuously. There normally exist on above some
crashing equipment as the leveler, cane knives and shredding
knives etc. It is classified into chain-plate type and
rubber belt conveyers which can be supplied at customers'
request. When the chain-plate type is adopted for the whole
length of the conveyer in order to install cane crashing
equipment, usually, a section of horizontal belt conveyer
will be used for the purpose of installing a magnetic trap
iron separator.
Main specifications (Nominal width of trough):
800mm, 1000m, 1200mm, 1370mm, 1400mm, 1700mm, 2000mm and
2400mm
Type of Chain-plate Conveyor: TLB620 กซ TLB2000
Type of Inclined Belt Conveyer: TJD1200 กซ TJD2000
Type of Horizontal Belt Conveyer: 1000 กซ 2000 TJP1000 กซ
TJP1700 TPS2000
กก |
|
|

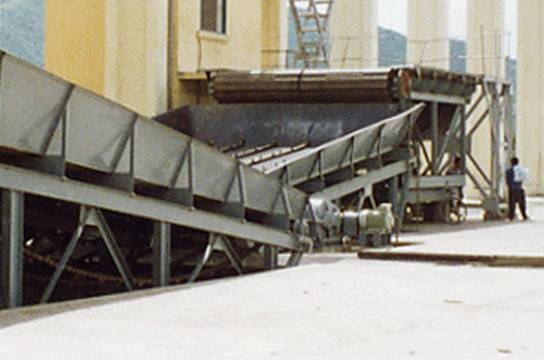

Cane Feeding Table
It is used for unloading the cane to the cane
conveyer evenly. Usually, it is a chain type structure.
Main specification (Nominal width กม Nominal
length): 5กม 6m; 5กม 8.5m; 6กม 8.5m; 7กม 8.5m
Specification and type:
Chain type: 5กม6; 5กม8.5; TLC5กม6; TLC5กม8.5;
TLC6กม 8.5G; TLC6กม8.5; TLC7กม8.5
กก |
| กก
|

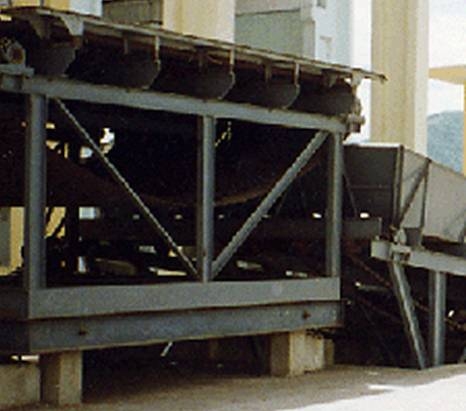

Cane Unloading Platform
It is used for unloading the cane on the
feeding table. Generally, it is a chain-slat type structure
and mainly consists of cane conveying plate device, drive
sprocket, driven sprocket, frame and gearing etc.
If it is installed on the weighbridge, it can
be taken as cane weighing platform.
Main specifications (Nominal width กม Nominal
length):
4กม5m; 4กม6m; 5กม6m; 5กม6.5m; 6กม5m; 6กม6m; 7กม5m
Specification and type:
Chain plate type: 4กม5; 4กม6
Sprocket type: 4กม5
Chain type: 5กม6; 5กม6.5; TCZ6กม5; TCZ6กม6;
TCZ7กม5
กก |
|
กก
|

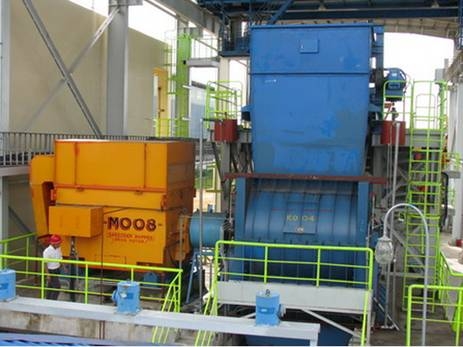

Vertical Heavy Duty Swing Hammer Shredder
The covering width of hammers is completely the same as the shredder's to ensure all the initially chopped cane is shredded. Its preparation index can reach above 90%. It has been widely used in the world cane sugar producing areas with favorable comments in sugar industry. This kind of shredder is also used for shredding the stalk of palm fruit. 1. Since its preparing index is higher, the milling load and the oil pressure can be reduced to decrease drive power of the mills and slower the rollersกฏ wear, and also to improve the milling ability. 2. It has the features of reliable performance, simple maintenance and convenient replacement of hammers. 3. The fibre is longer after shredding, so it facilitates the bagasse comprehensive utilization. 4. The transmission shaft has single-end output or double-end output as per the client requirement.กก |
|
กก
|

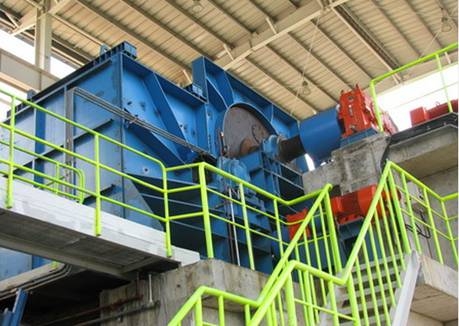

Inline Heavy Duty Shredder
It is a new generation of cane shredding equipment with the features that the inline feed whole stalk cane can be shredded without an extra cane precutting prior to, and less investment and low cost for maintenance. It is equipped with two carding drums and one cane feeding drum to keep the cane feeding in the optimum state to avoid shredder choking, stop or poor shredding result due to the fluctuation of cane feeding. Its preparation index, milling extraction are both higher than other shredders' under the conditions of the same energy consumption and the other same parameters. กก |
