 Pelleting equipment production line




  • Trough type mixing machine


Product type: YCH-10
Application: Powder mixing with water
Technical parameters:
1. Gross capacity: 10L
2. Mixed time: 5-20min
3. Shaft speed: 24 revolutions/min
4. Pour material way: manual operation
5. Materials trough maximum dip angle: 105°
6. Voltage: 220V
7. Power: 0.25kw
8. Overall dimension:600×280×450mm
9. Weight: 64kg

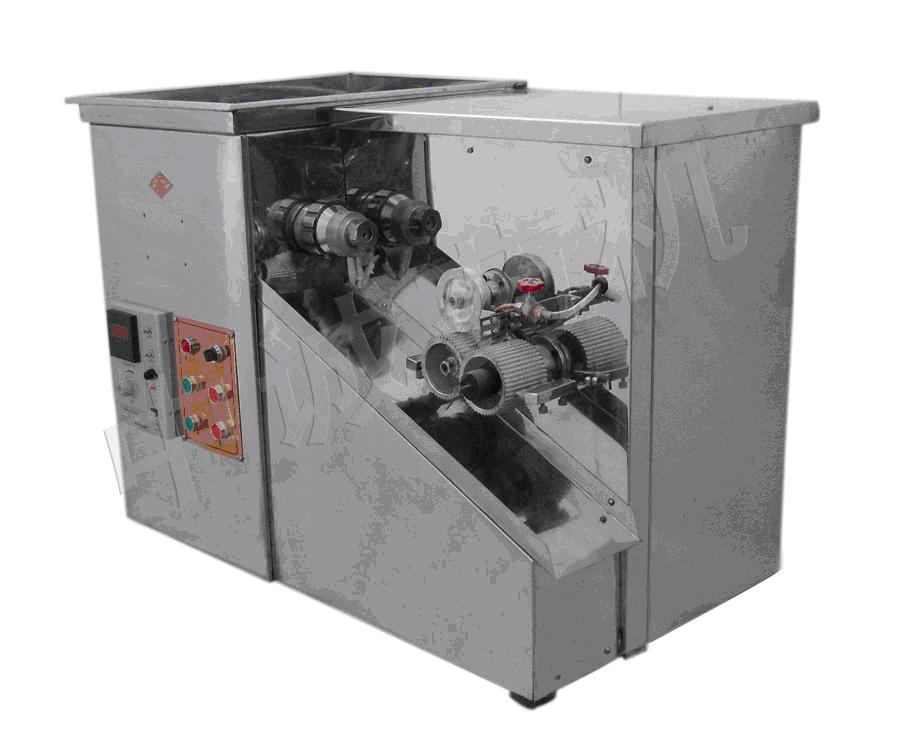

  • Automatic system of shot blasting machines

Product type: YDZ-2B
Application: Pelleting
Technical parameters:
1. Pelleting specification: Φ4-Φ8 (standard configuration 6mm)
2. Speed regulation: 125-1250 revolutions/min
3.Output: 15kg/h (according to Φ6mm)
4.Voltage::380V or 220V
5. Power of main motor: strip motor: 1.1KW, pelleting motor: 0.37KW
5.Overall dimension:1040×650×770mm
6. Weight: 280 kg


  • Minitype Drying box

Product type: YKH-75
Application: wet pill stoving
Technical parameters:
1. working temperature: room temperature above 10-300℃
2. Voltage: 220V
3. Power: 5KW
4. inside dimensions: 500×600×750mm
5. Overall dimension: 900×1100×1200mm
6. Weight: 140 kg
Note: this machine is not applicable for volatile, inflammable and explosive stuffs.

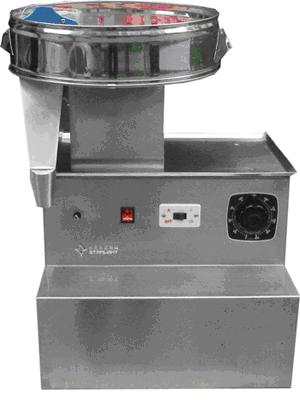

  • Single-deck count machine

Product type: YPWS-580
Application: count pills
Technical parameters:
1. Count board diameter: 580mm
2. Count board apertures: 50 or 100 granule
3. Production capacity: 15-40 bottles (bag)/min
4. Voltage: 220V
5. Power: 550W
6.Overall dimension:550×650×800mm
7. Weight: 65kg
Feature: According to customer special requirement, can produce various tablet mould.

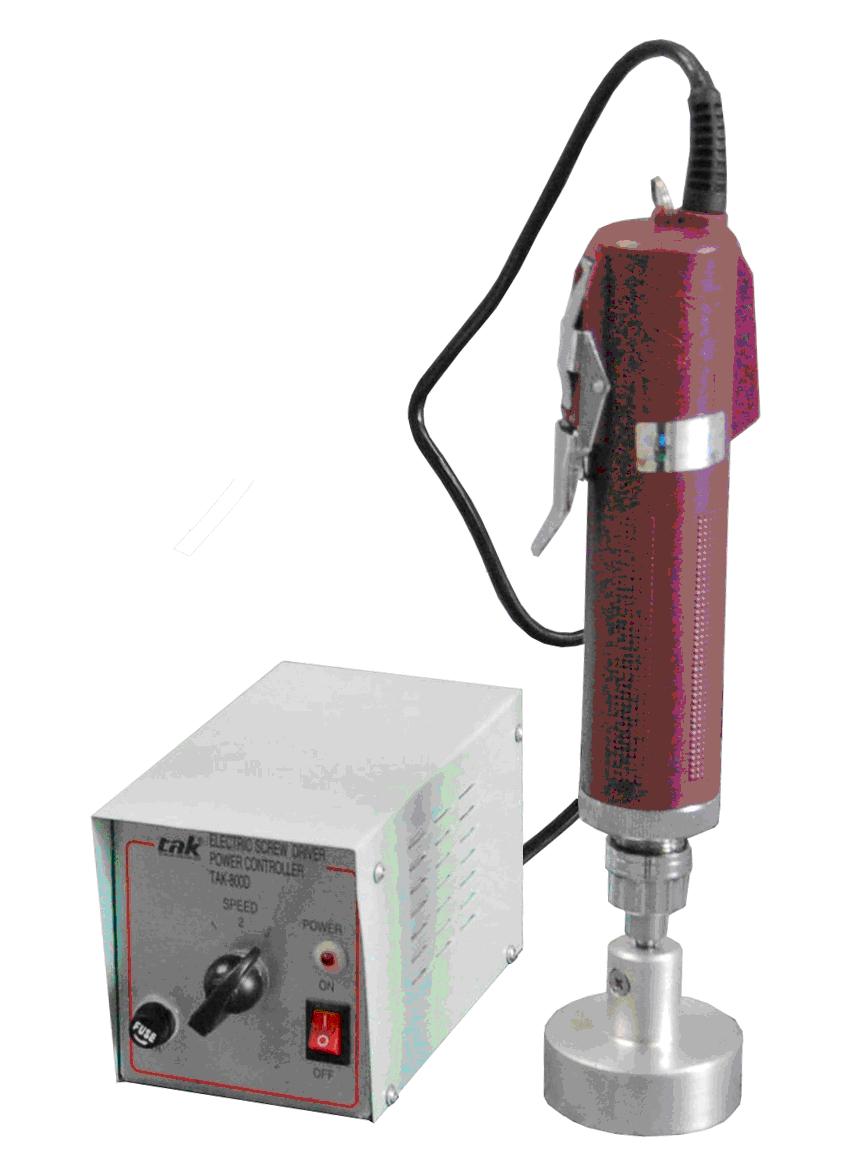

  • Cap screwing machine

Product type: YSXJ
Application: Plastic bottle cap
Technical parameters:
1. Capping diameter: φ10-50mm
2. Output: 20-40 bottle/min
3. Voltage: 220v, 7w, 50Hz
4.Overall dimension:180×110×95mm
5. Weight: 3kg
According to the customers request produce the cap screwing.


  • Handheld electromagnetic induction foil sealing machine


Product type: YSF-1010
Application: Plastic bottle closure aluminum foil
Technical parameters:
Sealed diameter: 15-17mm
Rated Voltage: AC220V 50/60Hz
Sealing speed: 0-40 bottles/min
Power: 1300W
Dimension of frame: 350x270x100mm
Weight: 7KG
Operation type: manual control
