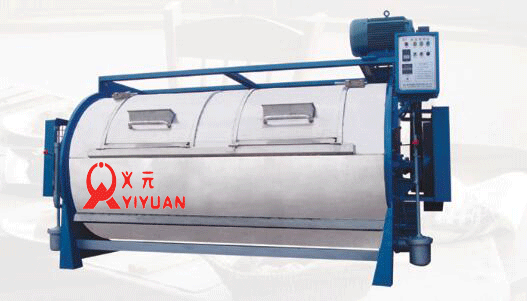

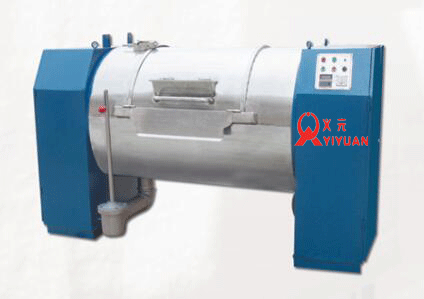

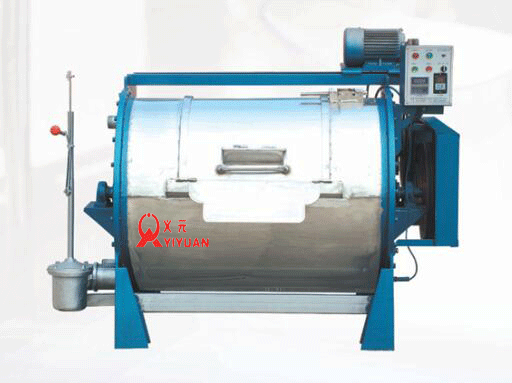

Industrial Washing Machine

High-quality stainless steel in adoption in, outer shell in inside, bear the function of high.

The design is reasonable, revolving steady, service life long.

While settling automatically, wash away dirt to have great capacity.

Clean,voice not very,vibrate not very.

Automatic washing machine cent type with bridge pose two kinds of constructions, provide the customer choice.

Be applicable to the rinse cotton, hair,and turn the rinse of the artificial, clothing, the thing with the equipments that dye.

CTNYYXGP 15KG-50KG Washing Machine

CTNYYXGP 200KG-400KG Washing Machine

CTNYYXGP 70KG-150KG Washing Machine

Main technical parameter

Type Max.washing
capacity(kg)
Drum dimensions(mm) Speed(r/min) Power(kw) Steam pressure(MPa) Overall dimensions(mm) Buil weight(kg)
CTNYYXGP10 10 390X600 35 0.75 0.3-0.6 1100X850X1200 260
CTNYYXGP20 20 500X800 35 0.75 0.3-0.6 1250X940X1300 380
CTNYYXGP30 30 700X1000 33 1.1 0.3-0.6 1650X1100X1450 600
CTNYYXGP50 50 750X1220 33 1.5 0.3-0.6 2000X1300X1500 800
CTNYYXGP70 70 950X1220 33 3 0.3-0.6 2050X1400X1800 900
CTNYYXGP100 100 950X1420 33 3 0.3-0.6 2350X1400X1900 1200
CTNYYXGP150 150 1080X1600 31 4 0.3-0.6 2500X1400X2100 1500
CTNYYXGP200 200 1080X2000 31 5.5 0.3-0.6 2940X1480X2100 1950
CTNYYXGP250 250 1200X2200 31 7.5 0.3-0.6 3140X1500X2300 2300
CTNYYXGP300 300 1200X2500 29 7.5 0.3-0.6 3514X1850X2300 2600
CTNYYXGP400 400 1450X3000 29 11 0.3-0.6 4200X2050X2450 3400
