Gluing Machine


YKDL700、1000 Table Speed Governing Gluing Machine YLM-TG-40 Paper Box Gluing Angle (Single Angle)
YKDL700 、1000 Adjustable- Speed Gluing Machine YFD-ASJ600 Gluing Machine (with feeder)
YFD-SJ600 Gluing machine( without feeder)

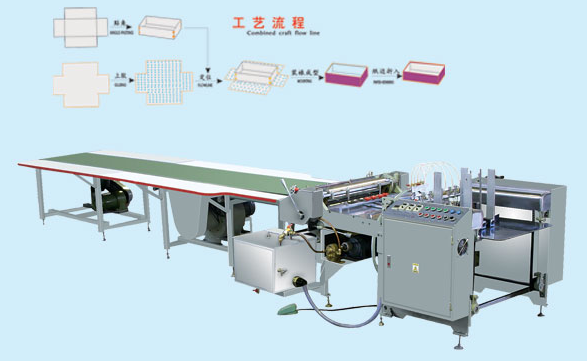

YKDL700-4 Feida Automatic Gluing Machine









YKDL-700-4 Half-open Paper Upper-side Gluing Machine is transferring type of paper upper-side gluing equipment, combined with its own many-year experience about packing machinery .designed against the needs of the clients. It is characterized by rational structure, stable performance, convenient operation, easy replacement, and low labor intensity. It adopts heat fused adhesive powder to avoid traditional white emulsion from shrinking and mildew. It is an equipment for medium and small sized printing packing plants to make flow line production.
1. Adjustable gluing drum to make the glue spread out on the surface of the paper.
2. Sending suction device to transfer the paper stead and not slant.
3. Circular glue groove attached to indirect heating and temperature control system can guarantee the adhesive degree of the glue.
4. Set time to heat to enhance production profits. Circular cleaning system makes the machine cleaned within 2 minutes. So it is very convenient.
5. Changeable Frequency to adjustable-speed, control the speed according to skillful degree of the production worker.





Main Technical Parameters


Max paper: 900〜600mm
Min paper: 100〜50mm
Sheet thickness: 800-200gsm
Production speed: 0-40pcs/min
Machine dimension :L6050〜W1650〜H950mm
Weight :1800kg
Power required: 3hp/380v
Heater required :3kw
