Fixed Crusher machine

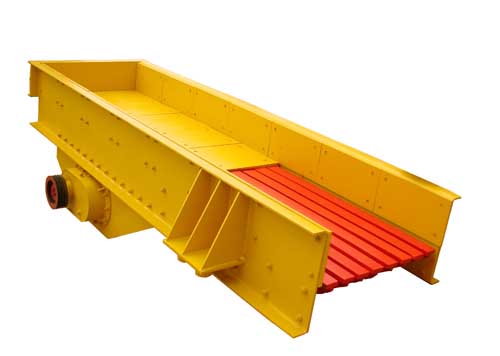

Vibrating Feeder



Model: YGZD11004200

Basic parameter

Size of Funnel (mm): 11004200
Max. Feed Size (mm): 650
Capacity (t/h): 180-400
Motor Power (KW): 15
Weight (tons):4.8
Overall Dimension (mm): 440020501660

Jaw Crusher



Model: YPE7501060

Basic parameter

Feed Opening (mm):7501060
Max Feed Size (mm):630
Setting Adjustment Range (mm): 80-140
Capacity (t/h): 110-320
Motor Power (kw): 90
Weight (t): 29
Overall Dimension (mm):265523023110

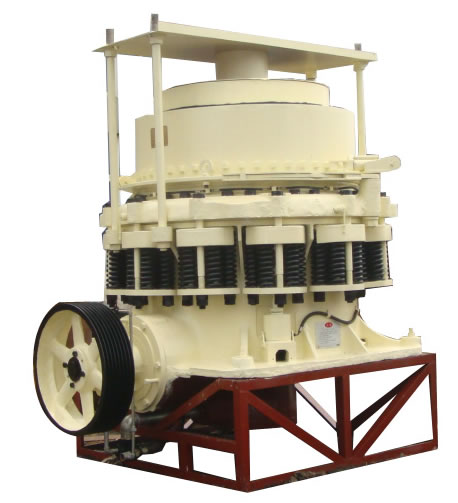

CS-Series High Efficient Spring Cone Crusher

Model: YCS240

Basic parameter

Max. feed size:241mm Capacity: 200-400ton/hour
Power:240Kw
Weight: 55
Overall Dimension (mm):265523023110

Vibrating Screen

Model: Y3YZS2460

Basic parameter

Screen Spec (mm): 48006000
Screen Deck: 3
Screen Mesh (mm): 3~150
Feed Size (mm): 400
Capacity (t/h): 100-810
Motor Power: 37Kw
Vibrating Frequency (r/min):700-900
Double Amplitude (mm): 5~9

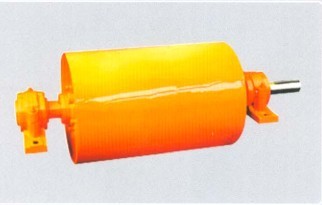

Magnetic Drum

Model: YCT-50/65

Basic parameter

Roller¡¯s diameter D(mm):500
Belt width (B)mm: 650
Roller¡¯s length (mm): 750
Roller¡¯s surface magnetic induction density (Gs): 2000
Roller¡¯s rotary speed (r/min): 20-30
Power: 9Kw
Weight(kg): 420

Belt Conveyor

Basic parameter

Model YB100011M YB100030M YB100026M YB65018M YB65012M YB65026M
Power 11Kw 22Kw 22Kw 22Kw 5.5Kw 11Kw

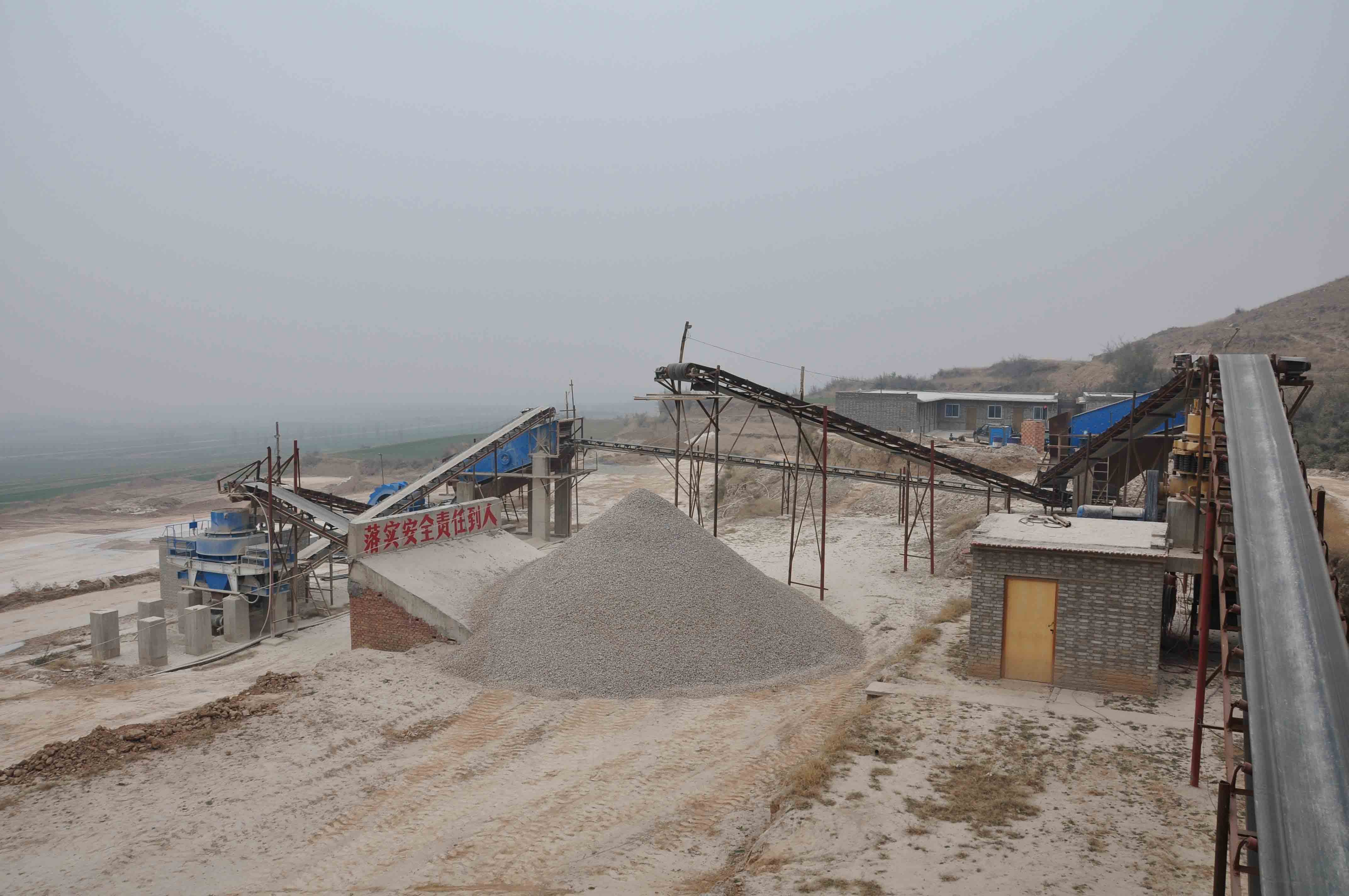

Flow chart of production

               Flow Chart
