1 DTMT
Degerming mill
Technology
Parameters:
Model:
DTMT-60/DTMT-80
Tooth board
diameter (mm): 600/800
Main shaft speed
(r/min) : 970/970
Capacity (t/h) :
3-6/7-10
Motor power (KW):
18.5-22/30-45
2 DPX
plumule whirler
Technology Parameters:
Model:
CSX-15/ CSX-20
Single
pipe capacity (t/h): 1.6～2/ 6～10
Feeding pressure (Mpa): ＞0.5
Remain
ratio of separated plumule (%): ＜10
Separation ratio of free plumule
(%): 90～97
3 QZ
gravity sieve
Technology Parameters:
Model:
QZ-600/ QZ-800 QZ-1000/ QZ-1200/
QZ-1500
Width
of sieve surface (mm): 600/ 800/
1000/ 1200/ 1500
Length
of sieve (um): 800/ 800/ 800/ 800/
800
Arc
radius (mm) : 915/ 915/ 915/ 915/
915
Capacity (m3/h): 30～50/ 45～85/
55～110/ 65～130/ 80～160
4. DZM
needle mill
Technology Parameters:
Model:
DZM-660 / DZM-750
Capacity (t/h): 3-5/ 5-8
Fineness (eye): 50-200/ 50-200
Motor
power (KW): 55/75
Weight
(t): ～1.5/ ～2.3
5.QS
pressure sieve
Technology Parameters:
Model:
QS-585/ QS-710
Width
of sieve surface (mm): 585/ 710
Sieve
slit width(um) :50～150/ 50～150
Feeding pressure (Mpa): 0.2～0.4/
0.2～0.4
Capacity (m3/h）: 25～60/ 35～100
Fibers
remain content (g/L): 0.08/ 0.08

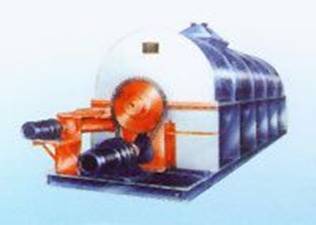

6.GG
series drying machine
Technology Parameters:
Model:
GG100/ GG200/ GG300/ GG500/ GG600
Heat-exchange area (m2): 100/ 200/
300/ 500/ 600
Main
shaft speed (r/min) 3～7
Drying
strength Kg/m: 2.7～4.8
Motor
power (Kw): 7.5/ 15/ 30/ 55/ 75
7.CSX
sand remover
Technology Parameters:
Model:
CSX-15/ CSX-20
Mainshaft speed (m3/h): 30～35/ 40～50
Desanding ratio (%) : 90
Feeding pressure (Mpa): 0.2～0.3
8.DXL
series starch washing swirler
Technology Parameters:
Model:
DXL－80/DXL－120/DXL－170 /DXL－350/ DXL－450
Flow
volume (m3/h): 10～25/ 15～35/
25～45/60～100 /120～165
Working pressure (Mpa): 0.6～0.8
Applying producing scale (t/y):
7500～13500/ 10000～22000/
15000～30000/ 40000～80000/
80000～130000
Deliverv lift of the pump (m) : 80
Power
of the power (Kw): 7.5～11/11～15/
15～22/ 30～37/ 37～45
9.DGW negative pressure airflow
drying device
Technology Parameters:
Model:
DGW-2.0 /DGW-4/ DGW-6/ DGW-10
Output
(t/h) : 2 / 4 / 6 / 10
Capacity (Kw): 48/ 110.7/ 163.5/
261.5
Water
ratio of wet starch (%): ≤40
Water
ratio of dry starch (%): ≤14
10、HXS series vibro-rotary sieve
Technology Parameters:
Model:
HXS-1000/HXS-1600/ HXS-1800/HXS-2000
Sieve
diameter (mm): 1000/1600/1800/2000
Capacity (m2): 0.66/2/2.5/2.9
Mesh
specification: 20-200
Motor
power (Kw): 1.5/2.2/ 4/4

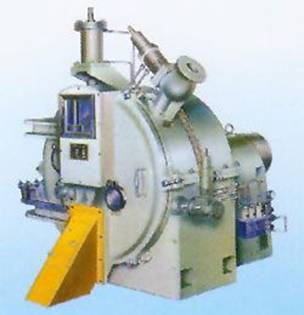

11、Peeler centrifuge、
Technology Parameters:
Model:
DXL－80 / DXL－120 / DXL－170 / DXL－350
Bowl
diameter (mm) : 800/ 1250/ 1250/
1600
Bowl
volume (L): 100/ 225/ 355/ 830
Mainshaft speed(r/min): 1550/ 1200/
1200/ 950
Mainshaft speed (t/h): 0.8～1.2 /
1.5～2/ 2.5～3/ 8～10
Main
motor power (Kw): 45/ 45/ 75/ 132

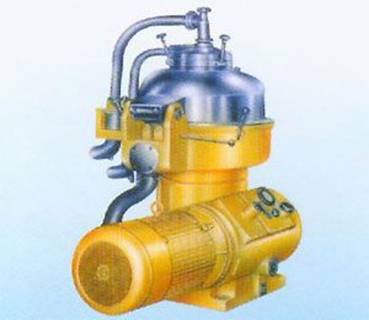

12、DPX445、DPF520 starch separator
Technology Parameters:
Model:
DPX445/ DPX445
Bowl
Dia (mm): 445/ 520
Sieve
slit width (r/min): 4460/ 4500
Throughput(m3/h): ≤30/ ≤40
Motor
power: 8/ 10
Motor
power (Kw): 30/ 37
13、SPX stone remover
Technology Parameters:
Model:
SPX-36/ SPX-50
Capacity （t/h）: 6-10/ 15-25
Derocking ratio （％）: 95/ 95
Feeding pressure （Mpa）: ≥0.1/ ≥0.1
Technology Parameters:
Model: DTMT-60/DTMT-80
Tooth
board diameter (mm): 600/800
Main shaft speed (r/min) : 970/970
Capacity (t/h) : 3-6/7-10
Motor power (KW): 18.5-22/30-45
