 Composite membrane packaging line

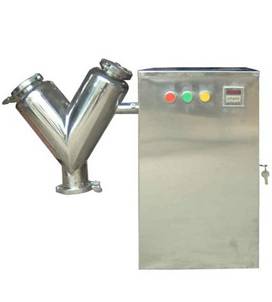

V Type Mixer Machine

Introduction and Features

This machine is suitable for mixing dry powder material and granular materials in pharmacy, chemical industry, food, fodder, pottery, metallurgy, etc.

This machine is composed of tow asymmetric cylinder, materials will do vertical and horizontal direction flowing, the degree of homogeneity can achieve above 99%. It adopts manual feeding materials and full-enclosed disc valve materials discharge, which do not product powder. There is no mechanical compression and strong friction, so it can maintain the intact of granular materials. The mixing barrel is made of stainless steel, which do not pollute the materials. In addition, this machine is equipped with timing device that can control the mixing time.

Main Technical Parameters

Model

V-5

V-8

V-14

Full Volume(L)

5

8

    14

Max. Charging Quantity(kg)

2

2.5

5

Outline Dim. (mm)

560x270x560

660×300×630

900×380x900

Dia. of Feed Port(mm)

76

76

108

Dia. of Discharge Port(mm)

76

76

76

Rotary Speed of Barrel (r/min)

24

24

20

Motor (kw)

0.25

0.25

0.37





Pneumatic Vacuum Material Loading machine

Main application



Vacuum feeder is a vacuum feeding pneumatic vacuum source. With this vacuum feeder materials could be fed directly from container into mixer, reactor, hopper, sheet press, packing machine, vibrating griddle, pellet trimming machine, hydro-state pallter, dry-state pelleter and disieteg-rator. To use this feeder could lighten worders ’ labor intensity, put on end to powder pollution and ensure that the production process meets GMP requirements.

For the vacuum feeder with material level control automatic reeding is realized with the hopper of the material-receiving machine through material level control. When the material level is higher than a position in the hopper of  the material-receiving machine, vacuum feeder stops feeding, but when he material level is lower than a position in the hopper, vacuum feeder starts feeding automatically. And feeding on the material-receiving machine is thus completed.



Technique parameter

 Model

Feeding Volume(kg/h)

Air Consumption(Lite/Minute)

Pressure of Supplied Air

outline size

QVC-4

3000

1440

0.4~0.6

420*1150

QVC-5

6000

2880

0.4~0.6

420*1150

QVC-6

9000

4320

0.4~0.6

420*1350

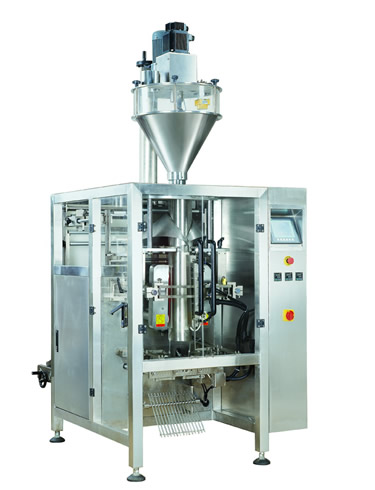

DXD-620F Large Vertical Powder Packaging Machine



Application:

Suitable for automatic packaging of milk powder, coffee powder, fine powder, gourmet, food additive, pesticide, washing powder and herbal medicine etc.

Features:
Adopt intelligent temperature controller and ensure the nice and even sealing;
Imported PLC control system, servo film feeding system, and man-machine interface touch screen can get mutiple functions such as counting, date printing, nitrogen charging(gas discharge), conveying etc.
Combined with metering equipment, full automatic packaging process including feeding, metering, bag filling, date printing and auto counting can be compelted.
The setting and modification of packaging parameter can be done via the touch screen, more, it can save 10 different types of parameters.



Technique   Parameter



                  DXD-620F

Bag forming size

Light80~350mm

Width100~300mm

Packing speed

5~60bag/min

Filling range

1500~2500ml(can change)

Air consumption

0.36m3/min 0.6MPa

Packing supply

220V,50/60HZ,2.2Kw

Overall dimensions

(L)1217×(W)1015×(H)1343mm

Packing material

OPP/CPP PET/PE etc

Weight

about 800kg



Colorful-tape Printer





Scope of application

Applicable to all kinds of intermittent vertical packaging machine supporting code.
Features:

1. Using thermal printing ribbon, printing clear, easy to dry off.

2. Single chip technology control, temperature quickly stable, temperature, position adjustment is simple and convenient.

3. synchronous and running speed of packing machine, coding results accurate and efficient.

Technique parameter

 Model

Body size

Power

Printing speed (t/min)

Outline size

Consumables

NY-802

W2mm*L4mm*H15mm

motor

0-150

L400mm*W210mm*W250mm

ribbon

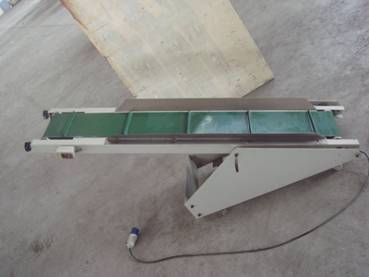

Product conveyor



Main function and characteristic

This machine adopts imported miniature motor drive, low noise, long service life, finished products can be delivered to the platform, reduce the waste in the process of packing, the packing machine work smoothly.

Technique parameter

Feeding Volume(bag/h)

Power

outline size

Max3000

220v

L1500*W300
