Automatic rigid box maker


¡¡

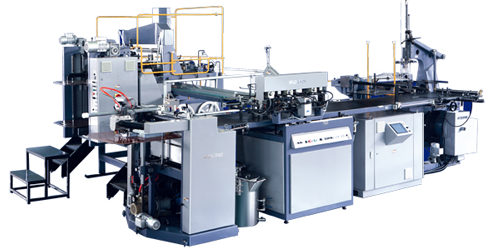

   YRB6040 Automatic rigid box maker

¡¡



Introduction:

¡¡

Automatic Rigid Box marker is a good equipment for making high-grade boxes because it is characterized by fine design£¬reliable performances and advanced technologies. It employs PLC, photoelectric detector system, hydrulic system, HMI to automatically finish feeding and gluing paper, conveying cardboard£¬forming and gluing four angles of cardboard£¬positioning and forming box in one time. It is applicable to make high-grade boxes for shoes£¬shirts£¬jewelry, gifts, etc.

¡¡



¡¡



Features:

¡¡

1¡¢ Automatic delivery unit for paper feeder.

2 ¡¢Automatic circulation mixing and gluing system for hot-melting glue.

3¡¢ Hot-melting paper tape automatic conveying, cutting and finish pasting the inner box quad stayer (four angles) of cardboard in one process. quad stayer (four angles) of cardboard in one process

4 ¡¢The vacuum suction fan under the conveyer belt can keep the paper from deviating

5 ¡¢The paper and cardboard inner box employ hydraulic rectifying device to spot correctly

6 ¡¢The wrapper can automatically collect boxes and deliver them to the wrapper according to the boxes conveyed on the conveyer belt.

7 ¡¢The wrapper can continually delivery boxes, wrap, fold ears and paper sides and form in one process

8 ¡¢The whole machine employs PLC£¬photoelectric detector system and HMI to automatically forming boxes in

one process.

9 ¡¢It can automatically diagnose the troubles and alarm accordingly.

¡¡

¡¡

¡¡









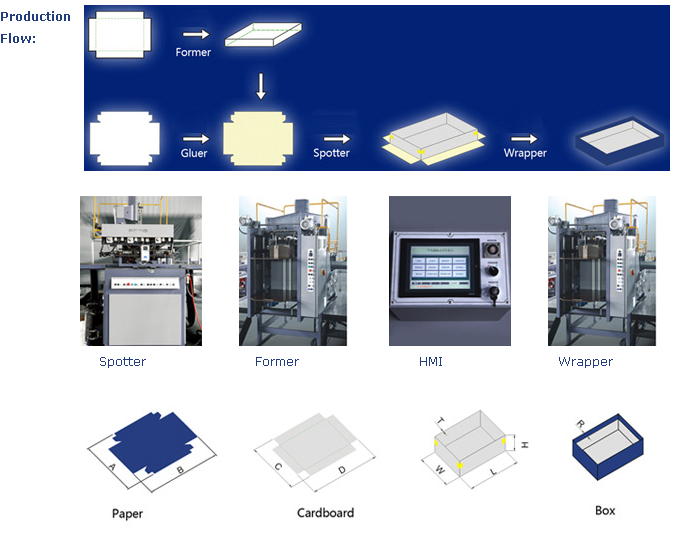

    RELASHIONSHIP OF EVERY PARAMETER



W+2H-4T¡Ü C (Max)                                L+2H-4T¡Ü D (Max)

A (Mins)¡Ü W+2H+2T+2R¡ÜA (Max)               B (Mins)¡Ü L+2H+2T+2R ¡ÜB (Max)

¡¡

     MAIN TECHNICAL PARAMETER



Paper Size (A¡ÁB)

Amin

95mm

Amax

610mm

Amin

180mm

Amax

850mm

Paper Thickness



100-200g/m2

Cardboard Thickneww (T)



1-3mm

Finished product (box) size
(W¡ÁL¡ÁH)

Wmin

50mm

Wmax

400mm

Lmin

100mm

Lmax

600mm

Hmin

15mm

Hmax

150mm

Folder paper size (R)

Rmin

7mm

Rmax

35mm

Precision



¡À 0.5mm

Product speed



¡Ü sheets/min

Motor power



10.35kw/380v 3phase

Heat power



60kw

Machine weight



6800kg

Machine dimension



L6600¡ÁW4100¡ÁH3250mm



   Remark:

1.The max and mini sizes of the boxes are subject to those of the paper and the quality of the paper.

2.The production capacity is 35 box per minute. But the speed of the machine depends on the sizes of the boxes.



¡¡

¡¡
