AR Glassfibre Yarn

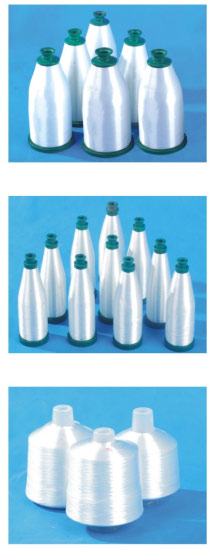

HUIERJIE AR GLASSFIBRE YARN is made from Alkali resistant glass ball,with a process of fibre drawing and twisting. In the process of fibre drawing, the surface of fibre coated with spinnning type sizing and resin, which ensures yarn combine with other material in next working procedure. It is mainly used for weaving kinds of specification Mesh or Scrim.



Example: ARC11-50*nS50L(H)

AR: Alkali Resistant

C: Continuous filament 11£»Filament diameter

50:Tex of strand

n: number of plied yarn

S50: Twist direction; 50twist/meter

L(H):14.5% or 16.5% ZrO2 content

Properties

  1. Big roll capacity

  2. High strength, Elastic modulus up to 80.4Gpa

  3. Excellent Alkali resistant properties

  4. Breaking elongation: Low rate; 2.4%

Technical Characteristics

Product type

Product Specification

Filament strength
£¨N/Tex£©

Spindle Weight(kg)

Spindle Length(M)

Plied yarn

ARC9-32¡ÁnS50L£¨H£©

0.4

1.5

46000/n

ARC11-50¡ÁnS50L£¨H£©

0.33

1.5

30000/n

Direct Yarn

ARC11-135¡Á1Z30L£¨H£©

0.33

10

75000

ARC13-185¡Á1Z30L£¨H£©

0.25

10

55000

Remarks:

Liner density,Number of plied yarn can be negotiated by suplier and customers



Packaging ¨C Labeling

Each Spindle yarn is packed by polythene bag .

50 spindle yarn £¨¦µ205¡Á450mm£©are loaded vertically on a wooden pallet of dimensions 1050¡Á1050¡Á1100mm(Totally 2 leves; 25 spindle yarn per level).

Each complete pallet is fasten by double iron strap to keep safety in transit. There is a bearing plate over pallets; Two levels stacking is workable.The approximate net weight of one pallet is 500kg and 545kg for gross weight. It is possible to pack 20 pallets in a 20 container.

Each pallet will have two labels on two perpendicular sides, indicating the product reference, specification and total net weight

Storage

HUIERJIE AR GLASSFIBRE YARN should be stored dry in their original packaging, the best conditions being at a temperature of between 15¡æ-35¡æ and at a relative humidity of between35%- 65%. If the product is stored at low temperature (below 15¡æ) it is advisable to condition in the workshop for 24 hours before use to prevent condensation.

Quality

HUIERJIE AR GLASSFIBRE YARN are manufactured under a Quality Management System approved to ISO 9001:2000.
