UIERJIE AR GLASSFIBRE SCRIM is on the basic of AR Glassfibre woven fabric. Glassfibre Chemical composition import ZrO2 14.5-16.7%; Filament coated with alkali-resistant size ; Woven fabric any more coated with alkali-resistant waterproof high polymer material.It can mostly resist the corrosion of high alkali substance of common portland cement.
Example: ARNP5*5-100L (160) H
ARN: Alkali Resistant scrim
P： Coating deal
5×5: distance between gridding
100: Width of mesh
L: Interweave
(160): weight of per square meter is 160g
H: ZrO2 content 16.7%( Without“H”,Zirconia content is 14.5%)

Properties

1. Good stableness

2. Good cohesion with concret

3. High strength, elastic modulus up to 80.4Gpa

4. High alkali resistant

5. Strain breaking point: 2.4%

Application

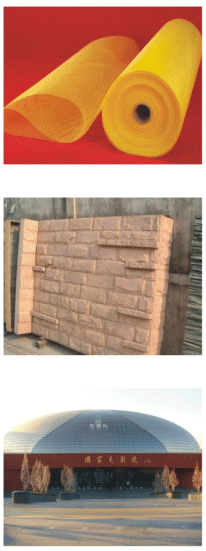

1. It is used for layout , coating or mechanical formed GRC.

2. It is used in roof waterproof and gypsum、marble、mosaic or board reinforcement.

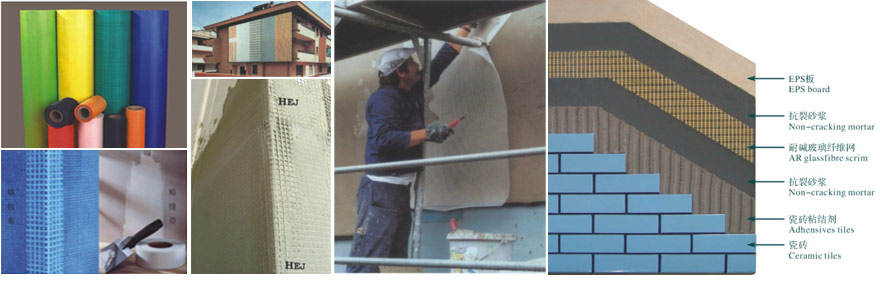

3. Reinforced material of internal and external insulation system of wall. Especially for External Thermal Insulation Composite Systems (ETICS). It can reinforce wall and prevent cracks. It is an ideal engineering material in construction.

Technical Characteristics

Productt Specification	Breaking strength ≥N/5cm		AR remained strength rate According to JG158-2004
	Warp	Weft	Warp	Weft
ARNP20×20-100L（140）	1000	1000	91	92
ARNP10×10-60L（125）	900	900	91	92
ARNP3×3-100L（125）	900	900	91	92
ARNP4×4-100L（160）	1250	1250	91	92
ARNP5×5-100L（160）	1250	1250	91	92
ARNP5×5-100L（160）H	1200	1200	95	96
ARNP4×4-110L（180）	1500	1500	91	92
ARNP6×6-100L（300）	2000	2000	91	92
ARNP7×7-100L（570）	3000	3000	91	92
ARNP8×8-100L（140）	1000	1000	91	92



Packaging – Labeling

Each 50m\100m \200m (negotiable) roll of HUIERJIE AR SCRIM is supplied on a 50mm diameter cardboard tube and protected by a polyethylene bag, Roll dianter 18cm\24.5cm\28.5cm.

36 rolls are loaded vertically on a wooden pallet of dimensions 113 cm x 113 cm (total height 113 cm). Each complete pallet is protected by polyethylene shrink-wrap. Toallow double stacking, a plywood sheet may be placed across the top of the lower pallet.

The approximate net weight of one pallet is 290 kg ,gross weight for 335kg.It is possible to pack 20 pallets in a 20 container.

Each roll has a self-adhesive label. Each pallet will have two labels on two perpendicular

Torage

HUIERJIE AR SCRIM should be stored dry in their original packaging, the best conditions being at a temperature of between 15℃ - 35℃ and at a relative humidity of between 35% -65%. If the product is stored at low temperature (below 15℃) it is advisable to condition in the workshop above 23℃ entironment for 24 hours before use to prevent condensation or brittlement.

Quality

HUIERJIE AR GLASSFIBRE SCRIM is manufactured under a quality Management System approved to ISO 9001:2000
